Product Details:
|
| Panel Efficiency: | 22% | Short Circuit Current: | 13.88-14.22A |
|---|---|---|---|
| Panel Dimensions: | 1903x1134x35mm | Open Circuit Voltage: | 40.02-40.8V |
| Cell Size: | 182mmx182mm | Max Power: | 450-470W |
| Module Type: | 450M | 455M | 460M | 465M | 470M | Max Power-Pm: | 450 | 455 | 460 | 465 | 470W |
| Max Power Voltage: | 33.91 | 34.06 | 34.22 | 34.39 | 34.57V | Max Power Current: | 13.28 | 13.36 | 13.45 | 13.53 | 13.6A |
| Module Efficiency: | 20.85 | 21.08 | 21.31 | 21.55 | 21.78% | First Year Degradation: | 1% |
| Highlight: | 500W bifacial solar panel,monocrystalline solar panel for home,anti-PID rooftop solar panel |
||

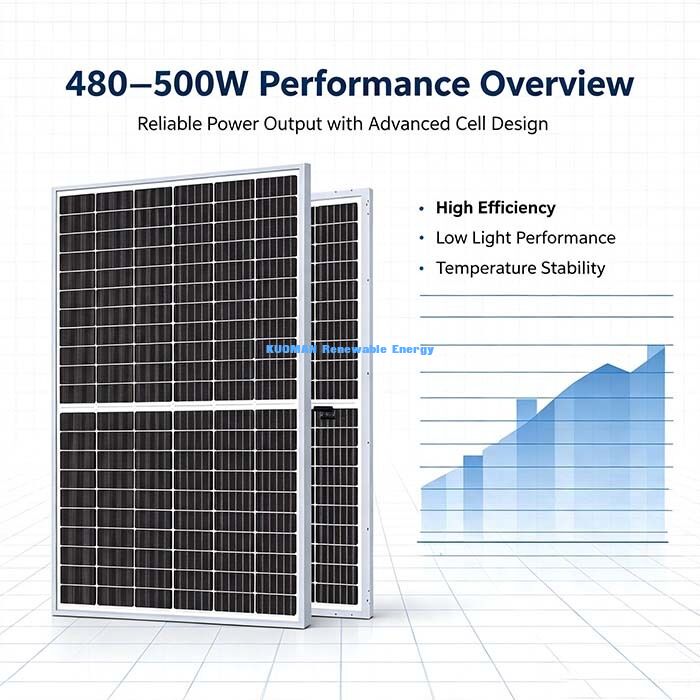

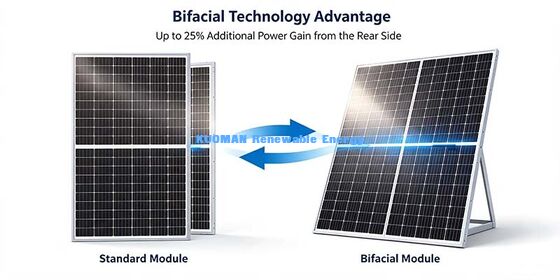

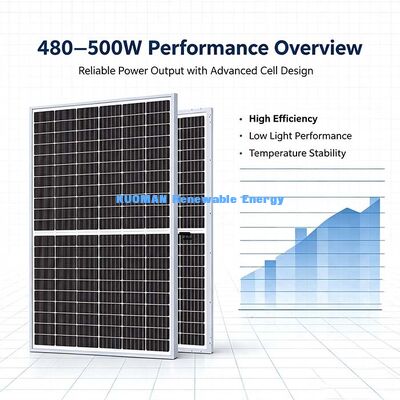

Our 480W‑500W N‑type monocrystalline bifacial solar panel adopts premium 16BB SMBB cell technology, delivering a high‑efficiency module rate up to 23.16%. The dual‑sided power‑generation design enables an extra 25% power gain from the rear‑side under proper albedo conditions. Built to IP68 waterproof grade and qualified for Class‑1 fire resistance, this PV module performs steadily under low‑light, high‑temperature, salty‑air and humid outdoor environments. Each panel undergoes strict quality inspection, supporting 1500V DC maximum system voltage and compatible with standard MC‑4 connectors for simple installation for home, commercial and off‑grid solar projects.
| Module Type | 450M | 455M | 460M | 465M | 470M |
|---|---|---|---|---|---|
| Max Power-Pm [W] | 450 | 455 | 460 | 465 | 470 |
| Open Circuit Voltage-Voc[V] | 40.02 | 40.2 | 40.38 | 40.59 | 40.8 |
| Short Circuit Current-lsc[A] | 13.88 | 13.97 | 14.06 | 14.14 | 14.22 |
| Max Power Voltage-Vmp[V] | 33.91 | 34.06 | 34.22 | 34.39 | 34.57 |
| Max Power Current-lmp[A] | 13.28 | 13.36 | 13.45 | 13.53 | 13.6 |
| Module Efficiency-p[%] | 20.85 | 21.08 | 21.31 | 21.55 | 21.78 |
