Product Details:
|
| Panel Efficiency: | 22% | Module Dimensions: | 2650*1305*35mm |
|---|---|---|---|
| Module Weight: | 41kg | Rated Power: | 800W |
| Open-circuit Voltage: | 67.68V | Short-circuit Current: | 60.7A |
| Highlight: | 800W Solar Panel,48 Volt Photovoltaic Panel,Low Degradation Solar Module |
||

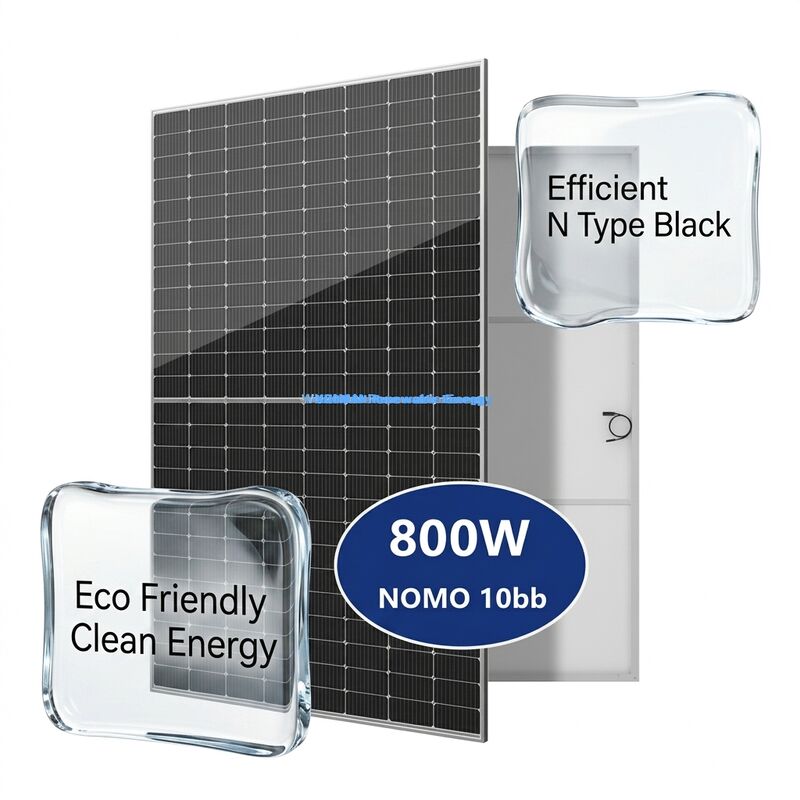

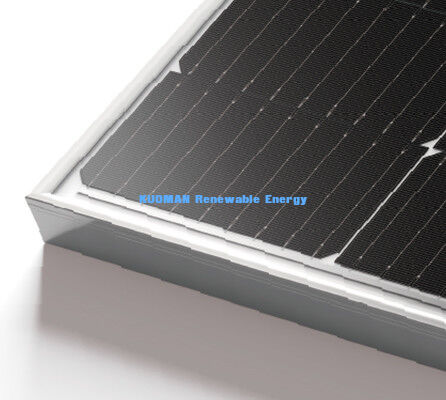

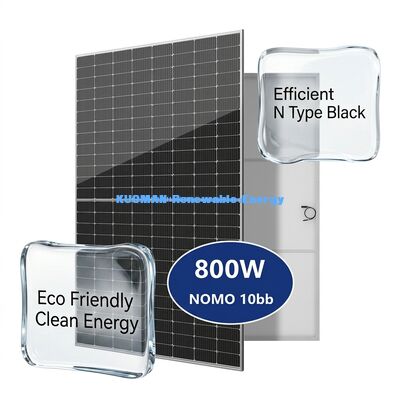

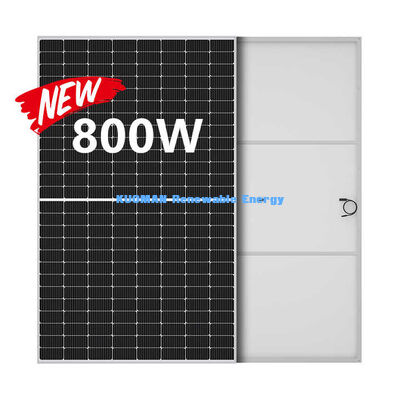

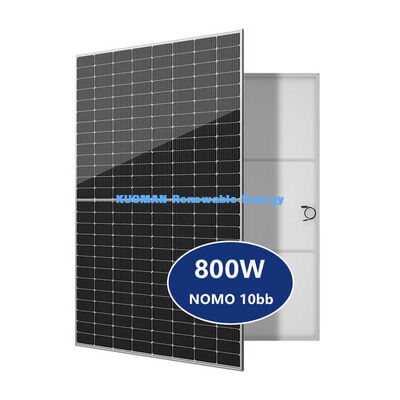

Customized 800W Solar Panel 48 Volts Solar Panels featuring advanced technology for optimal performance and reliability.
| Cells | 208pcs 182x91mm Monocrystalline solar cells |
|---|---|
| Module Dimension | 2472x1134x35mm (LxWxH) |
| Module Weight | 41kg |
| Frame | Anodized aluminum profile |
| Junction Box | Rated current: 30A, IP68, TUV certified |
| Cable | Length Negative 400mm / Positive 300mm |
| Connector | Compatible with MC4 |
| Parameter | 790W | 795W | 800W | 805W |
|---|---|---|---|---|
| Rated Maximum Power (Pmax) (W) | 790 | 795 | 800 | 805 |
| Open-circuit Voltage (Voc) (V) | 67.23 | 67.51 | 67.68 | 67.89 |
| Maximum Power Voltage (Vmp) (V) | 16.65 | 16.72 | 16.78 | 16.81 |
| Short-circuit Current (Isc) (A) | 60.32 | 60.54 | 60.7 | 60.98 |
| Maximum Power Current (Imp) (A) | 13.1 | 13.14 | 13.18 | 13.21 |
| Module Efficiency (%) | 21.07 | 21.2 | 21.33 | 21.47 |
STC: Irradiance 1000W/m², cell temperature 25°C AM1.5G
| Parameter | Value |
|---|---|
| Maximum System Voltage | 1000V/1500V DC |
| Temperature Range | -40°C ~ +85°C |
| Series Fuse Rating | 30A |
| NOTC | 45±2℃ |
| Temperature Coefficient of Isc (α-Isc) | +0.04%/℃ |
| Temperature Coefficient of Voc (β-Voc) | -0.24%/℃ |
| Temperature Coefficient of Pmax (γ-Pmp) | -0.26%/℃ |
