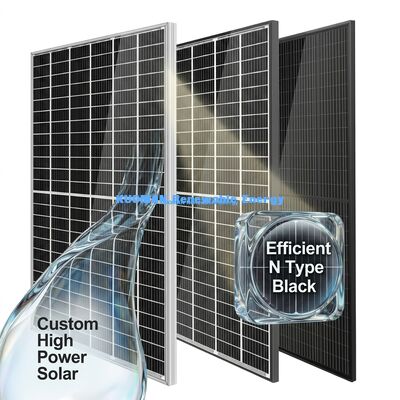

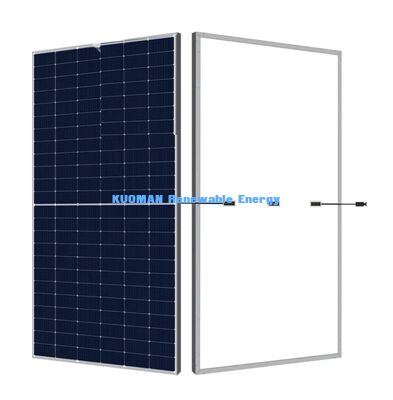

N Type Monocrystalline Solar Panel with IP65 Weather Resistance for Home and Commercial Use

N Type Monocrystalline Solar Panel with IP65 Weather Resistance for Home and Commercial Use
N Type Monocrystalline Solar Panel with IP65 Weather Resistance for Home and Commercial Use N Type Monocrystalline Solar Panel with IP65 Weather Resistance for Home and Commercial Use N Type Monocrystalline Solar Panel with IP65 Weather Resistance for Home and Commercial Use N Type Monocrystalline Solar Panel with IP65 Weather Resistance for Home and Commercial Use N Type Monocrystalline Solar Panel with IP65 Weather Resistance for Home and Commercial Use

Large Image :  N Type Monocrystalline Solar Panel with IP65 Weather Resistance for Home and Commercial Use

Product Details:
Place of Origin: China
Brand Name: Kuoman
Model Number: KM500-600W Solar Panel
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1-100/pcs
Packaging Details: standard international carton packing
Delivery Time: general two weeks, more quantity based on exact quantity
Payment Terms: L/C, L/C
Supply Ability: 10000pcs/month
Contact Now

N Type Monocrystalline Solar Panel with IP65 Weather Resistance for Home and Commercial Use

Description
Dimensions: 2108x1048x35 Mm Weight: 25 Kg
Cell Count: 144 Monocrystalline Front Glass: 3.2 Mm Tempered
Junction Box: 25A, IP68 Cable Length: Negative 400mm, Positive 300mm
Highlight:

N Type Solar Panel

,

Monocrystalline PV Solar Panel

,

IP65 Photovoltaic Panel

Silicon Common Solar Panel N Type PV Solar Panel Black For Home / Travel / Car

Solar Panels Black Solar Panel N Type Customized Panel for home, travel, car

Mechanical Characteristics
  • Dimensions: 2108 mm in length, 1048 mm in width, and 35 mm in height (L×W×H)
  • Weight: 25 kg per module
  • Front Glass: 3.2 mm thick, high-transmission tempered glass for maximum light penetration and impact resistance
  • Encapsulation: High-quality EVA (Ethylene Vinyl Acetate) for cell protection and durability
  • Cells: 144 pieces of monocrystalline solar cells, each measuring 166 mm × 83 mm
  • Backsheet: Composite film providing excellent insulation and weather resistance
  • Frame: Anodized aluminum profile offering corrosion resistance and structural strength
  • Junction Box: Rated at 25A current, IP68 waterproof rating, TUV certified for safety and reliability
  • Cable: Negative cable length 400 mm, Positive cable length 300 mm
  • Connector: Compatible with industry-standard MC4 connectors for easy and secure installation

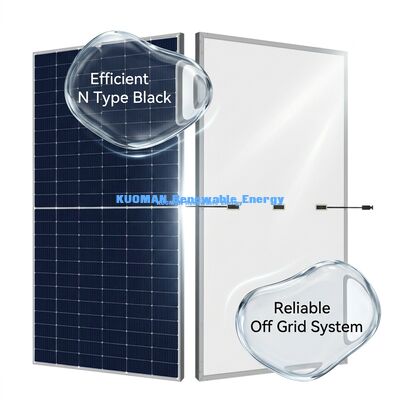

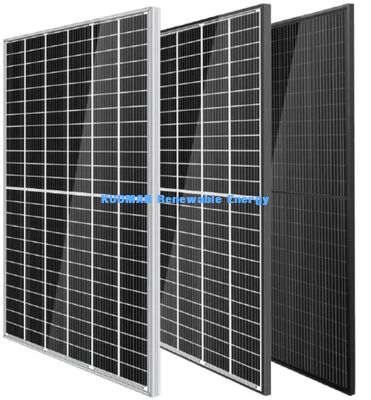

N Type Monocrystalline Solar Panel with IP65 Weather Resistance for Home and Commercial Use 0 N Type Monocrystalline Solar Panel with IP65 Weather Resistance for Home and Commercial Use 1
Structural Parameters
Cells 108pcs 182x93mm Monocrystalline solar cells
Module Dimension 1722x1134x30mm (LxWxH)
Module Weight 20.5kg
Frame Anodized aluminum profile
Junction Box Rated current: 25A, IP68, TUV
Cable Length Negative 400mm / Positive 300mm
Connector Compatible with MC4
Standard Test Conditions (STC)
Parameter 410W 415W 420W 425W 430W
Maximum Power (Pmax) 410W 415W 420W 425W 430W
Maximum Power Voltage (Vmp) 31.13V 31.32V 31.51V 31.70V 31.88V
Maximum Power Current (Imp) 13.17A 13.25A 13.33A 13.41A 13.49A
Open-circuit Voltage (Voc) 37.73V 37.92V 38.11V 38.30V 38.49V
Short-circuit Current (Isc) 13.91A 13.99A 13.99A 14.15A 14.23A
Module Efficiency STC (%) 21.00 21.25 21.51 21.76 22.02

STC: Irradiance 1000W/m², cell temperature 25℃, AM1.5G

Operating Conditions
Max System Voltage 1000V/1500V DC
Temperature range -40°C ~ +85°C
Series Fuse Rating 25A
NOTC 45±2℃
Temperature Coefficient of Isc (α-Isc) +0.033%/℃
Temperature Coefficient of Voc (β-Voc) -0.29%/℃
Temperature Coefficient of Pmax (Y-Pmp) -0.39%/℃

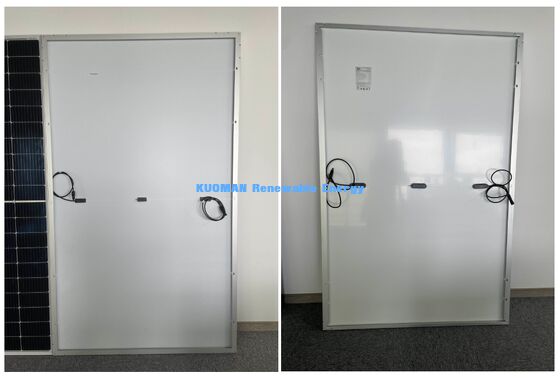

N Type Monocrystalline Solar Panel with IP65 Weather Resistance for Home and Commercial Use 2 N Type Monocrystalline Solar Panel with IP65 Weather Resistance for Home and Commercial Use 3
Key Performance Insights
Wide Operating Range: Functions in extreme temperatures from -40°C to +85°C, making it versatile for various environments.
High Voltage Compatibility: Supports 1000V/1500V DC, ideal for large-scale solar installations where higher voltages improve efficiency.
Temperature Impact on Performance: Critical insights into system performance under different thermal conditions.
Fuse Protection: 25A series fuse ensures system protection against overcurrent, enhancing safety and reliability.
Applications
  • Solar Power Systems: Ideal for both residential and commercial solar installations, especially in regions with extreme temperatures.
  • Energy Storage Systems: Can be integrated with battery storage systems to optimize energy management.
  • Off-Grid Solutions: Suitable for remote locations where temperature variations are significant.
Packaging Configuration
  • Container Type: 40-foot High Cube (40HQ)
  • Modules per Container: 726 panels
  • Modules per Pallet: 31 panels
  • Pallets per Container: 20 pallets
  • Packaging Box Dimensions: 2130 mm in length, 1145 mm in width, and 1170 mm in height
  • Box Gross Weight: 775 kg per packaged box
