Product Details:
|
| Cell Size: | 182x93mm | Module Dimensions: | 1722x1134x30mm |
|---|---|---|---|
| Module Weight: | 20.5kg | Maximum Power: | 415W |
| Open-circuit Voltage: | 37.92V | Short-circuit Current: | 13.99A |

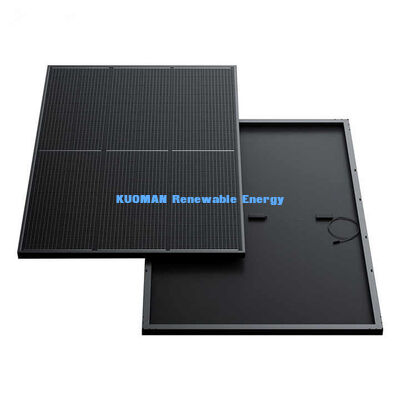

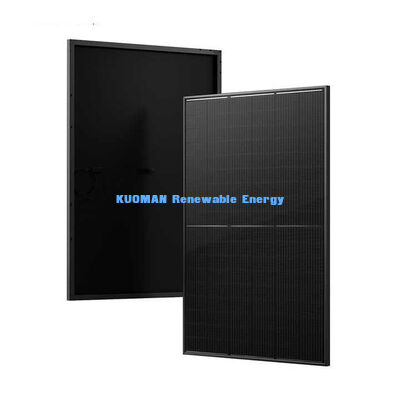

| Highlight: | 415W Solar Panel,N Type Photovoltaic Panel,22% Efficiency PV Panel |
||

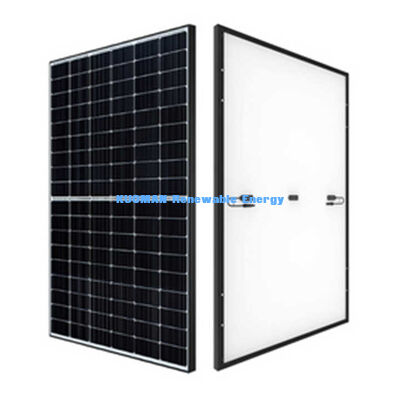

| Cells | 108pcs 182x93mm Monocrystalline solar cells |
| Module Dimension | 1722x1134x30mm (LxWxH) |
| Module Weight | 20.5kg |
| Frame | Anodized aluminum profile |
| Junction Box | Rated current: 25A, IP68, TUV |
| Cable | Length Negative 400mm / Positive 300mm |
| Connector | Compatible with MC4 |
| Parameter | 410W | 415W | 420W | 425W | 430W |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 410W | 415W | 420W | 425W | 430W |
| Maximum Power Voltage (Vmp) | 31.13V | 31.32V | 31.51V | 31.70V | 31.88V |
| Maximum Power Current (Imp) | 13.17A | 13.25A | 13.33A | 13.41A | 13.49A |
| Open-circuit Voltage (Voc) | 37.73V | 37.92V | 38.11V | 38.30V | 38.49V |
| Short-circuit Current (Isc) | 13.91A | 13.99A | 13.99A | 14.15A | 14.23A |
| Module Efficiency STC (%) | 21.00 | 21.25 | 21.51 | 21.76 | 22.02 |
| Max System Voltage | 1000V/1500V DC |
| Temperature Range | -40°C ~ +85°C |
| Series Fuse Rating | 25A |
| NOTC | 45±2℃ |
| Temperature Coefficient of Isc (α-Isc) | +0.033%/℃ |
| Temperature Coefficient of Voc (β-Voc) | -0.29%/℃ |
| Temperature Coefficient of Pmax (Y-Pmp) | -0.39%/℃ |
