Product Details:
|
| Max System Voltage: | 1000V/1500V DC | Module Efficiency: | 17.77% |
|---|---|---|---|
| Open Circuit Voltage: | 23.18V | Dimensions: | 1650 X 992 X 40 Mm |
| Connector Type: | MC4 Compatible | Output Frequency: | 60Hz/50Hz |
| Max Power: | 70W | Max Power Output: | 410W-430W |
| Temperature Coefficient: | -0.38%/°C | Front Glass: | 3.2mm High Transmission Tempered |
| Nominal Voltage: | 48V DC | Vmp At Stc: | 37.5V |
| Highlight: | 70W monocrystalline solar panel,off-grid solar panel with MC4 connector,customizable solar panel for camping |
||

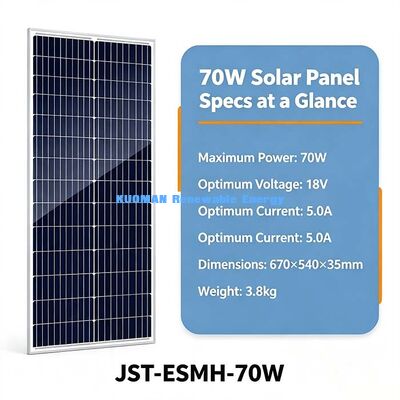

Unlock reliable, clean energy with this premium 70-watt monocrystalline solar panel. Engineered for exceptional efficiency and durability, this compact module delivers superior performance for a wide range of off-grid and mobile applications, making it the smart choice for sustainable power.
| Electrical Characteristics (STC) | Value |
|---|---|
| Maximum Power (Pmax) | 70W |
| Open Circuit Voltage (Voc) | 17.59V |
| Short-Circuit Current (Isc) | 2.55A |
| Voltage at Pmax (Vmp) | 16.53V |
| Current at Pmax (Imp) | 2.42A |
| Maximum System Voltage | 700V DC |
| Power Tolerance | 0 to +4.99W |
| Mechanical Specifications | Value |
|---|---|
| Dimensions | 985 × 395 × 30 mm |
| Weight | 4.24 kg |
| Solar Cells | Monocrystalline 182mm (28 cells, 2x14 configuration) |
| Frame | Anodized Aluminum Alloy |
| Front Glass | 3.2mm Tempered Glass |
| Junction Box | IP67 rated, with 50cm output wires (custom length available) and MC4-compatible connectors |
| Mechanical Load Capacity | 5400Pa (Front) / 2400Pa (Rear) |
| Temperature & Operational Ratings | Value |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Nominal Operating Cell Temperature (NOCT) | 45±2°C |
| Pmax Temperature Coefficient | -0.35%/°C |
80pcs per pallet (Pallet Dimensions: 630×1100×930mm, approximately 235kg).
