Waterproof 40W Mono Solar Panel Heavy‑Duty Aluminum Frame Backyard Solar Charger

Waterproof 40W Mono Solar Panel Heavy‑Duty Aluminum Frame Backyard Solar Charger
Waterproof 40W Mono Solar Panel Heavy‑Duty Aluminum Frame Backyard Solar Charger Waterproof 40W Mono Solar Panel Heavy‑Duty Aluminum Frame Backyard Solar Charger

Large Image :  Waterproof 40W Mono Solar Panel Heavy‑Duty Aluminum Frame Backyard Solar Charger

Product Details:
Place of Origin: China
Brand Name: Kuoman
Certification: CE, FCC, UKCA, CB
Model Number: KM500-600W Solar Panel
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1-100/pcs
Packaging Details: standard international carton packing
Delivery Time: general two weeks, more quantity based on exact quantity
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now

Waterproof 40W Mono Solar Panel Heavy‑Duty Aluminum Frame Backyard Solar Charger

Description
Panel Efficiency: 22% Panel Dimensions: 1903x1134x35mm
Voltage: 24 Volts Current: 12.5 Amps
Weather Resistance: IP65 Weight: 1.7 Kg
Material: Tempered Glass, Aluminum Frame, Silicon Cells Short Circuit Current: 13.88-14.22A
Junction Box: 25A, IP68 Cell Count: 144 Monocrystalline
Cell Dimensions: 166x83mm Encapsulation Material: EVA
Celltype: Monocrystalline / Polycrystalline Silicon Productname: Common Solar Panel
Max System Voltage: 1000V/1500V DC Module Dimension: 1722x1134x30mm
Cells: 144 Monocrystalline Type: Monocrystalline / Polycrystalline
Highlight:

waterproof 40W mono solar panel

,

heavy-duty aluminum frame solar panel

,

backyard solar charger panel

Waterproof 40W Mono Solar Panel Heavy‑Duty Aluminum Frame Backyard Solar Charger

Waterproof 40W Mono Solar Panel Heavy‑Duty Aluminum Frame Backyard Solar Charger

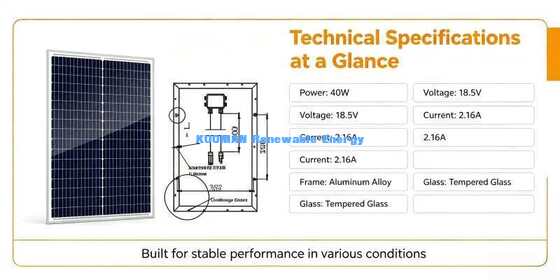

Product Specification:

Our 40W monocrystalline PV solar panel comes with 28 high‑efficiency mono solar cells, delivering stable 40‑watt power output for off‑grid power needs. Sized 58039525mm and weighing only 2.55 kg, this compact‑sized solar module is lightweight for easy mounting, transport and outdoor installation. Built‑to‑withstand harsh outdoor weather, it is a budget‑friendly energy solution for residential yards, cabins, outdoor equipment and remote off‑grid systems.

Electrical Characteristics (STC):

  • Maximum Power (Pmax): 40W
  • Open Circuit Voltage (Voc): 19.12V
  • Short-Circuit Current (Isc): 2.55A
  • Voltage at Pmax (Vmp): 16.53V
  • Current at Pmax (Imp): 2.42A
  • Maximum System Voltage: 700V DC
  • Power Tolerance: 0 to +4.99W

Mechanical Specifications:

  • Dimensions: 580 x 395 x 25 mm
  • Weight: 2.5 kg
  • Solar Cells: Monocrystalline 182mm (28 cells, 2x14 configuration)
  • Frame: Anodized Aluminum Alloy
  • Front Glass: 3.2mm Tempered Glass
  • Junction Box: IP67 rated, with 50cm output wires (custom length available) and MC4-compatible connectors.
  • Mechanical Load Capacity: 5400Pa (Front) / 2400Pa (Rear)

Temperature & Operational Ratings:

  • Operating Temperature: -40°C to +85°C
  • Nominal Operating Cell Temperature (NOCT): 45±2°C
  • Pmax Temperature Coefficient: -0.35%/°C

Packaging:

  • 80pcs per pallet (Pallet Dims: 630x1100x930mm, ~235kg).

Waterproof 40W Mono Solar Panel Heavy‑Duty Aluminum Frame Backyard Solar Charger

Ideal Application Scenarios

  • Mobile & Recreational Power: Perfect for maintaining batteries on RVs, camper vans, boats, and yachts.
  • Off-Grid Systems: An excellent component for powering small cabins, sheds, remote monitoring stations, and telecommunications equipment.
  • DIY Solar Projects: Ideal for building portable power stations, solar generators, or charging kits for tools and electronics.
  • Agricultural & Industrial Uses: Reliable power for electric fencing, water pumping systems, and off-grid lighting.


Frequently Asked Questions


Q1: What battery can this 40W solar panel charge?

A: It works perfectly for charging 12V lead‑acid, lithium and deep‑cycle batteries, matched with a suitable solar charge controller.

Q2. Can I install the solar panel outside in all‑weather conditions?

A: Yes. The aluminum frame, tempered glass and IP67 junction box are engineered for long‑term outdoor use against rain, snow and UV rays.

Q3. How many amps does the 40‑watt solar panel produce?

A: Its optimum operating current reaches 2.42A under standard test conditions (STC:1000W/㎡,25℃).

Q4. Am I allowed to connect multiple 40W panels together?

A. Absolutely. Wire panels in series for higher voltage or parallel for bigger charging current for your power system.

Q5. Does the package include a solar charge controller?

A. This listing is only for the 40W monocrystalline solar panel. You can buy our matching 12V solar controller separately.
