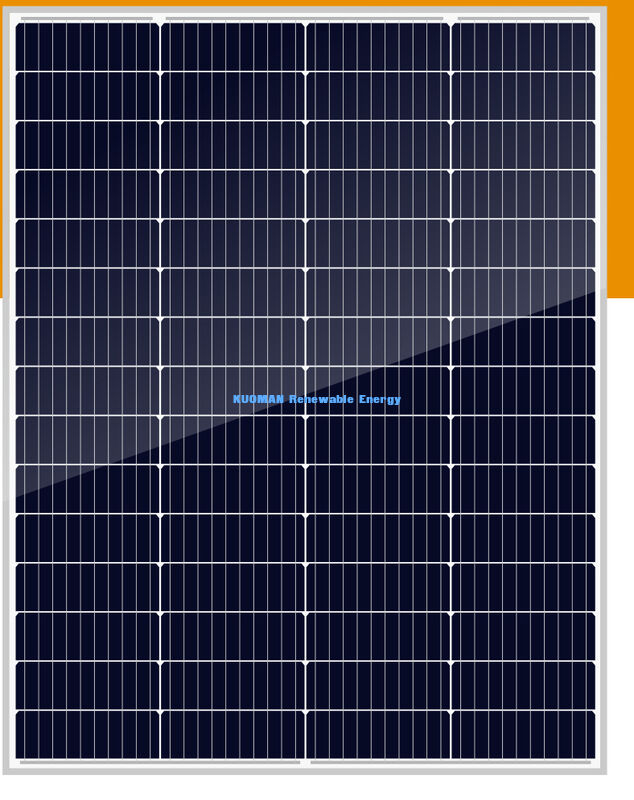

150W Monocrystalline Solar Panel with 20.01% High Efficiency and IP67 Waterproof Rating

150W Monocrystalline Solar Panel with 20.01% High Efficiency and IP67 Waterproof Rating
150W Monocrystalline Solar Panel with 20.01% High Efficiency and IP67 Waterproof Rating

Large Image :  150W Monocrystalline Solar Panel with 20.01% High Efficiency and IP67 Waterproof Rating

Product Details:
Place of Origin: China
Brand Name: KUOMAN
Model Number: JST-ENMH-150W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1
Packaging Details: 1030*1130*885mm
Payment Terms: T/T
Supply Ability: 2000 pcs/month
Contact Now

150W Monocrystalline Solar Panel with 20.01% High Efficiency and IP67 Waterproof Rating

Description
Peak Power Output: 150W Module Efficiency: 20.01%
Working Voltage: 17.87V Waterproof Rating: IP67
Front Load Capacity: 5400Pa Rear Load Capacity: 2400Pa
Temperature Coefficient: -0.350%/°C Max System Voltage: 700Vdc
Panel Dimensions: 980mm X 765mm X 30mm Panel Weight: 7.55kg
Current At MPP: 8.39A Cell Size: 182mm
Highlight:

150W monocrystalline solar panel

,

high efficiency solar panel 20.01%

,

IP67 waterproof solar panel

150W Monocrystalline Solar Panel | High Efficiency 182mm | 700V System
Power your off-grid life with the JST-ENMH-150W solar panel. Featuring 20.01% high efficiency, 182mm cells, and an IP67 waterproof rating. Ideal for RVs, boats, and large solar arrays.

Product Highlights
  • Peak Power Output: Delivers a maximum power of 150W (with a positive tolerance of +4.99W), making it our most powerful single-panel solution in this series for maximum energy harvest.
  • High Conversion Efficiency: Boasts an impressive module efficiency of 20.01%, thanks to advanced 182mm monocrystalline silicon cells, generating more power per square meter.
  • Optimized for 12V Systems: Features a working voltage (Vmp) of 17.87V, perfectly aligned for charging 12V batteries (lead-acid, AGM, Gel, or Lithium) with minimal power loss.
  • Industrial-Grade Durability: Built to last with a robust silver-anodized aluminum frame, 3.2mm tempered glass, and an IP67 rated junction box that is completely waterproof and dust-tight.
  • Enhanced Mechanical Strength: Engineered to withstand extreme weather, supporting a front-side load of 5400Pa (high wind) and a rear-side load of 2400Pa (heavy snow).

Why Choose JST-ENMH-150W?
  • Bridge to Large-Scale Power: With a sizeable footprint and 150W output, this panel effectively bridges the gap between small portable panels and large residential/commercial installations.
  • Superior Temperature Performance: The low temperature coefficient (-0.350%/°C for Pmax) ensures the panel maintains high efficiency even in scorching hot climates where other panels might underperform.
  • Long-Lasting Performance: Certified to the highest 700Vdc maximum system voltage, allowing for extensive series connections in large systems without risking panel degradation.
  • Plug & Play Simplicity: Comes standard with weatherproof MC4 compatible connectors and 90cm output cables, enabling quick, secure, and safe connections.

Frequently Asked Questions
Q: Can I use this 150W panel to charge a 24V battery directly?
A: No, the optimal operating voltage (17.87V) is designed for 12V systems. To charge a 24V battery, you would need to wire two panels in series (creating ~35V) or use a charge controller that can step down the voltage.
Q: How much physical space does this panel take up?
A: The panel dimensions are 980mm x 765mm x 30mm. This larger surface area is what allows it to capture more sunlight and generate 150W of power.
Q: Is the 140W and 150W panel the same size?
A: Yes, both the 140W and 150W variants share the exact same physical dimensions and weight (7.55kg). The difference lies in their power output and current (Imp 7.96A vs 8.39A).

Application Scenarios
High-Power RV & Marine: Perfect for large Class A motorhomes, 5th wheel trailers, and sailboats that require significant battery charging capacity.
Off-Grid Homes & Remote Cabins: Serves as an excellent main power source or a key component in a larger array for powering lights, refrigeration, and communication equipment.
Telecom & Utility Backhaul: An ideal choice for powering remote cell towers, radio repeaters, and environmental monitoring stations where reliability is critical.
Solar Water Pumping: Provides the necessary power to drive high-capacity DC submersible pumps for irrigation or livestock watering systems.
