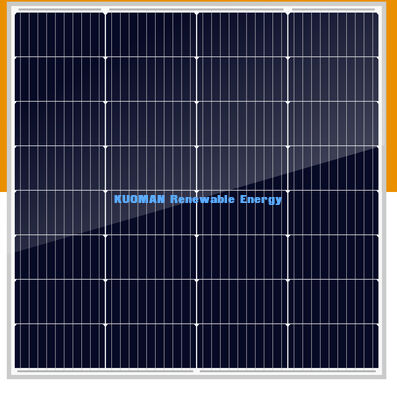

110-120W Monocrystalline Solar Panel with 18.6% High Efficiency for 12V Off-Grid Power and Corrosion-Resistant Aluminum Frame

110-120W Monocrystalline Solar Panel with 18.6% High Efficiency for 12V Off-Grid Power and Corrosion-Resistant Aluminum Frame
110-120W Monocrystalline Solar Panel with 18.6% High Efficiency for 12V Off-Grid Power and Corrosion-Resistant Aluminum Frame

Large Image :  110-120W Monocrystalline Solar Panel with 18.6% High Efficiency for 12V Off-Grid Power and Corrosion-Resistant Aluminum Frame

Product Details:
Place of Origin: China
Brand Name: KUoman
Model Number: JST-EUMH-(110-120)W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1
Packaging Details: 840 x 1100 x 885 mm 260kg
Payment Terms: T/T
Supply Ability: 2000pcs/month
Contact Now

110-120W Monocrystalline Solar Panel with 18.6% High Efficiency for 12V Off-Grid Power and Corrosion-Resistant Aluminum Frame

Description
Maximum Power: 110W / 120W Open Circuit Voltage: 21.71V / 22.03V
Short Circuit Current: 6.25A / 6.54A Voltage At Pmax: 18.60V / 19.28V
Current At Pmax: 5.91A / 6.22A Module Efficiency: Up To 19.86%
Power Tolerance: 0 ~ +4.99W Maximum System Voltage: 700Vdc
Maximum Series Fuse: 10A Operating Temperature: -40°C To +85°C
Highlight:

110-120W monocrystalline solar panel

,

high efficiency solar panel 18.6%

,

corrosion-resistant aluminum frame solar panel

110-120W Monocrystalline Solar Panel | 18.6% High Efficiency | 12V Off-Grid Power
Discover the JST-EUMH-(110-120)W, a high-performance monocrystalline solar panel designed for maximum energy yield in compact spaces. Available in 110W and 120W variants, this panel is the ideal solution for both residential off-grid systems and mobile power needs. With cutting-edge technology and robust construction, it delivers reliable, clean electricity wherever you need it.
Key Electrical Parameters
Parameter 110W Model 120W Model
Model JST-EUMH-(110-120)W
Maximum Power (Pmax) 110W 120W
Open Circuit Voltage (Voc) 21.71V 22.03V
Short Circuit Current (Isc) 6.25A 6.54A
Voltage at Pmax (Vmp) 18.60V 19.28V
Current at Pmax (Imp) 5.91A 6.22A
Module Efficiency Up to 19.86%
Power Tolerance 0 ~ +4.99W
Maximum System Voltage 700Vdc (IEC / UL)
Maximum Series Fuse Rating 10A
Mechanical Specifications & Features
  • Durable Build: Constructed with 3.2mm tempered glass and a corrosion-resistant aluminum frame for a lifespan of 25+ years
  • Superior Weatherproofing: Features an IP67 rated junction box to withstand harsh rain, snow, and humidity
  • Advanced Cell Technology: Utilizes high-efficiency 182x91mm monocrystalline cells (4x8pcs configuration)
  • Optimized Performance: Excellent temperature coefficients ensure stable output even in extreme heat (Operating Temp: -40°C to +85°C)
  • Easy Installation: Pre-drilled grounding and drainage holes, plus standard MC4 compatible connectors for quick, tool-free wiring
Why Choose Our JST-EUMH Solar Panels?
  • Higher ROI: The positive power tolerance (+0~+4.99W) means you often get more power than rated, maximizing your investment
  • Space-Efficient: The 19.86% high conversion efficiency generates more electricity per square meter than standard panels
  • Engineered for Safety: Built to withstand high wind (5400Pa) and snow loads (2400Pa), perfect for diverse global climates
  • Scalable Design: The 700V system voltage allows for flexible series connections, reducing wiring costs for large installations
Frequently Asked Questions
What is the difference between the 110W and 120W models?
Both share the same physical dimensions. The 120W variant offers higher current (Imp 6.22A vs 5.91A) and voltage (Vmp 19.28V vs 18.60V), resulting in 10W more power output under standard test conditions.
Is this panel compatible with my 12V battery system?
Yes. The Vmp range (18.6V-19.28V) is perfectly suited for charging 12V lead-acid, AGM, or Lithium-ion batteries when paired with a proper charge controller.
How do the integrated grounding holes help?
The dedicated grounding holes simplify the installation process and enhance safety by allowing for easy electrical bonding to the mounting structure, reducing the risk of lightning damage.
Application Scenarios
  • Off-Grid Homes & Cabins: Primary power source for lighting, appliances, and electronics in remote locations
  • Recreational Vehicles (RVs) & Boats: Maintain house batteries and power onboard devices during travel or at the dock
  • Telecom & Security: Reliable power for remote communication towers, cameras, and weather monitoring stations
  • DIY Solar Systems: Perfect for building custom ground-mount or roof-top solar arrays for energy independence
