Product Details:
|
| Power Output: | 250W - 700W | Panel Dimensions: | 1722x1134x30mm |
|---|---|---|---|
| Weight: | 18kg - 20kg | Cell Type: | Monocrystalline/Polycrystalline |
| Max Power: | 410W-430W | Open Circuit Voltage: | 37.73V-38.49V |
| Highlight: | IP68 Rated Solar Panel,Monocrystalline Solar Panel,250W - 700W Solar Panel |
||

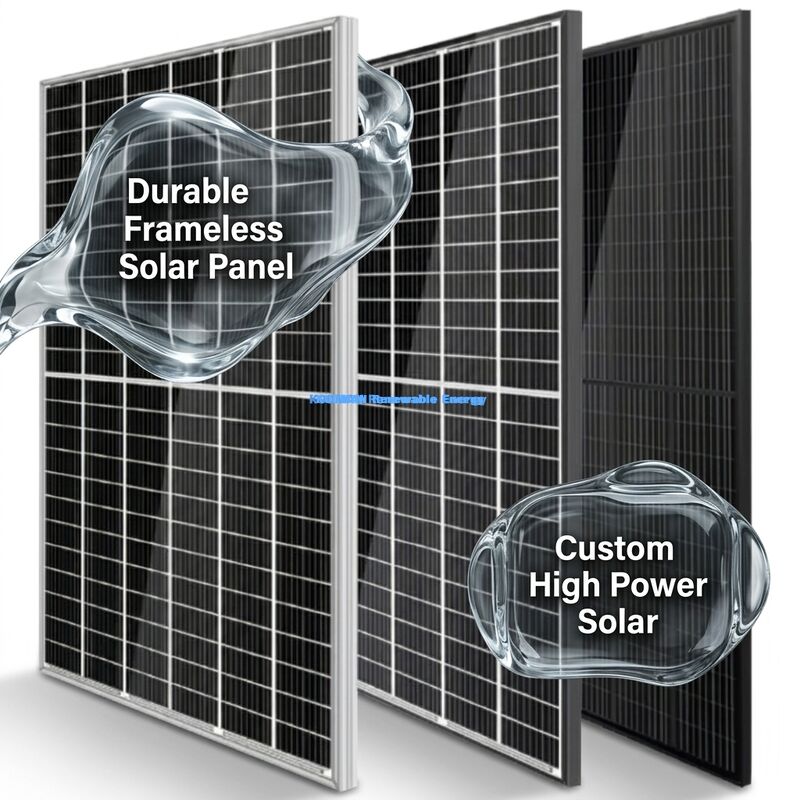

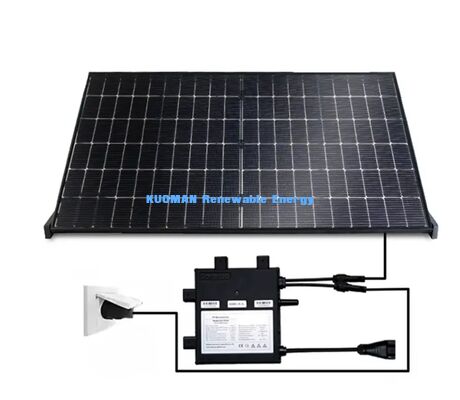

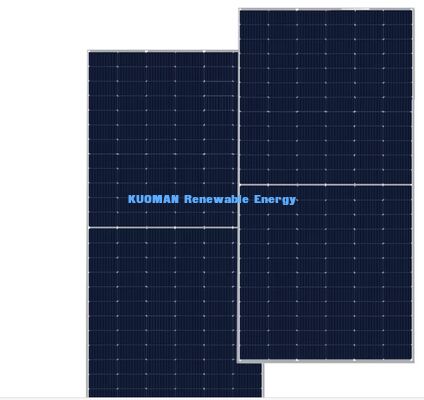

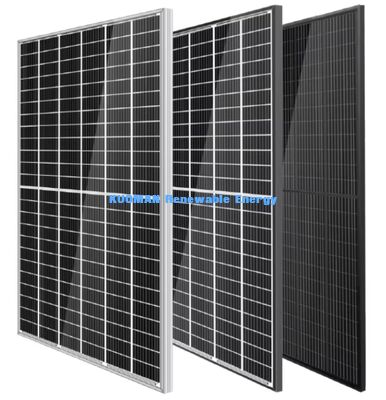

This monocrystalline solar panel series features 108 high-density N-Type cells engineered for commercial and industrial applications. With IP68-rated junction box and corrosion-resistant aluminum frame, it delivers reliable power generation in coastal, arid, or humid environments across North America, South America, Southeast Asia, and Africa.
| Category | Specification |
|---|---|
| Electrical Parameters | |
| Max Power (Pmax) | 410W-430W (5 power grades) |
| Open Circuit Voltage (Voc) | 37.73V-38.49V |
| Short Circuit Current (Isc) | 13.91A-14.23A |
| Mechanical Specifications | |
| Cell Arrangement | 108 cells (6×18 configuration) |
| Frame Material | 35mm anodized aluminum alloy |
| Front Glass | 3.2mm tempered, anti-reflective coating |
| Environmental Ratings | |
| Salt Mist Resistance | IEC 61701 Class 4 (96-hour test) |
| Hail Resistance | IEC 61215 (25mm hail at 23m/s) |
| System Compatibility | |
| Fuse Rating | 25A per series string |
| Connector Type | MC4-Evo2 compatible |
Designed for energy developers and contractors deploying utility-scale solar farms in North America, commercial rooftop installations in Southeast Asia, and off-grid systems in Africa and South America. The panel's enhanced durability meets specific regional challenges including salt corrosion, high humidity, and extreme temperature fluctuations.
