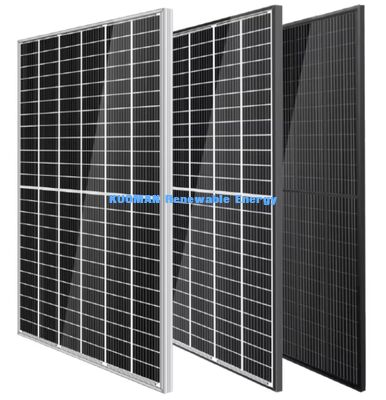

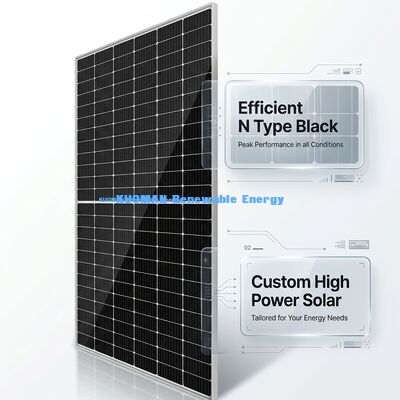

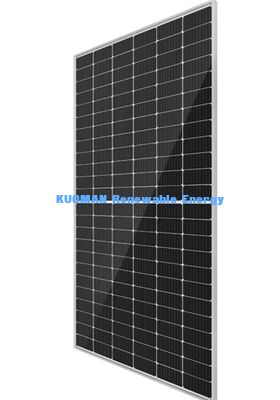

Renewable Energy Cell Solar Panel 24 Volts Monocrystalline Solar Panel IP65
Renewable Energy Cell Monocrystalline Solar Panel ideal for Off-Grid & Commercial Systems
Mechanical Characteristics
| Dimensions |
2108×1048×35mm (L×W×H) |
| Weight |
25kg |
| Front Glass |
3.2mm high transmission tempered glass |
| Encapsulation |
EVA |
| Cells |
144pcs 166×83mm Monocrystalline solar cells |
| Backsheet |
Composite film |
| Frame |
Anodized aluminum profile |
| Junction Box |
Rated current: 25A, IP68, TUV |
| Cable |
Length Negative 400mm / Positive 300mm |
| Connector |
Compatible with MC4 |

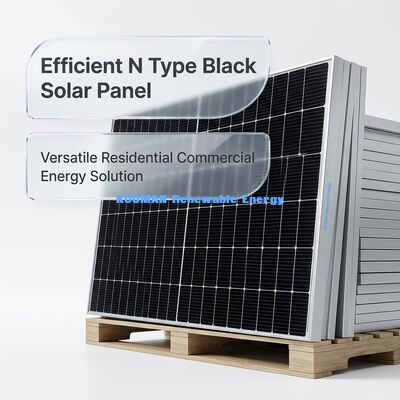

Packaging Configuration
| Container type |
40HQ |
| No. of modules per container |
726 |
| No. of modules per pallet |
31 |
| No. of pallets per container |
20 |
| Packaging box size (L×W×H) |
2130×1145×1170 (mm) |
| Box gross weight |
775 (kg) |
Operating Conditions
Maximum System Voltage
1000V/1500V DC. This indicates the maximum voltage the system can handle. The choice between 1000V and 1500V depends on the specific configuration and application (e.g., residential vs. commercial solar systems).
Temperature Range
-40°C to +85°C. The system is designed to operate efficiently in extreme temperatures, making it suitable for a wide range of climates, from freezing cold to hot desert environments.
Series Fuse Rating
15A. This is the maximum current rating for the fuse used in the system to protect against overcurrent conditions.
NOCT (Nominal Operating Cell Temperature)
45±2℃. NOCT is the temperature at which the solar cells operate under standard conditions (800 W/m² irradiance, 20°C ambient temperature, and 1 m/s wind speed). This value helps estimate the real-world performance of the system.
Temperature Coefficients
Temperature Coefficient of Isc (α-Isc)
+0.033%/℃. This indicates how the short-circuit current (Isc) changes with temperature. A positive value means the current increases slightly as temperature rises.
Temperature Coefficient of Voc (β-Voc)
-0.29%/℃. This shows how the open-circuit voltage (Voc) changes with temperature. A negative value means the voltage decreases as temperature rises.
Temperature Coefficient of Pmax (γ-Pmp)
-0.39%/℃. This reflects how the maximum power output (Pmax) changes with temperature. A negative value means the power output decreases as temperature increases.

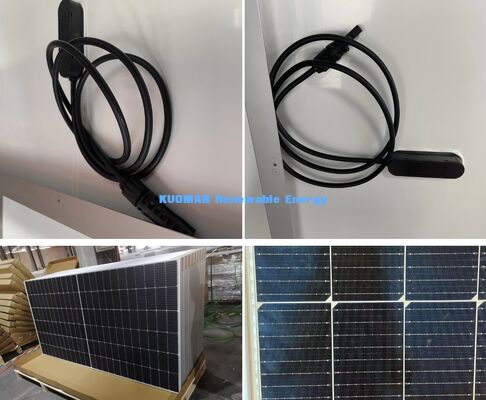

KUOMAN Case Examples
Packing Details
Standard Packing Options
- 1pc, 2pcs, 5pcs, 10pcs, or 25pcs per carton/pallet
- These options are designed to accommodate different order sizes and ensure safe transportation
Custom Packing
Individual packing requirements are acceptable. If you have specific packing needs (e.g., additional padding, special labeling, or unique carton sizes), the supplier can accommodate your requests.
Suggested Use Cases
- Residential Rooftops: Slim profile blends aesthetically
- Commercial Solar Farms: High current (25A) supports scalable arrays
- Off-Grid Systems: IP68 protection ensures operation in humid/rainy climates
