Product Details:
|
| Panel Efficiency: | 22% | Panel Dimensions: | 1722x1134x30mm |
|---|---|---|---|
| Module Weight: | 20.5kg | Maximum Power: | 415W |
| Operating Temperature: | -40°C~+85°C | Max System Voltage: | 1000V/1500V DC |
| Highlight: | 415 Watt Solar Panel,22% Efficiency Photovoltaic Panel,N Type PV Module |
||

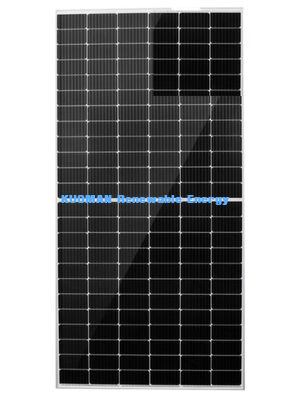

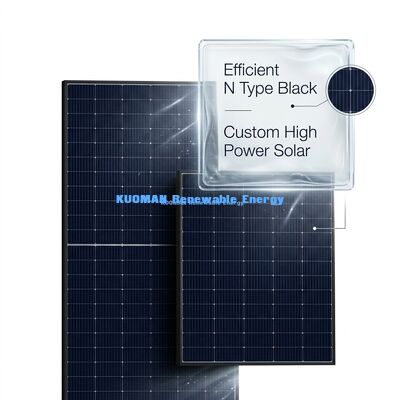

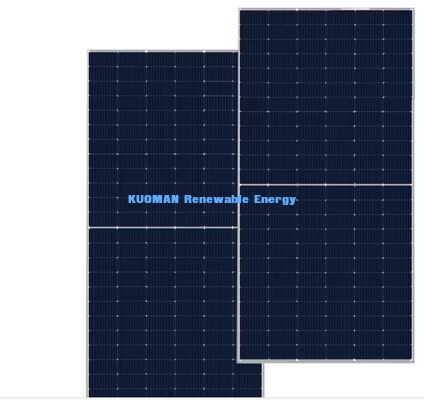

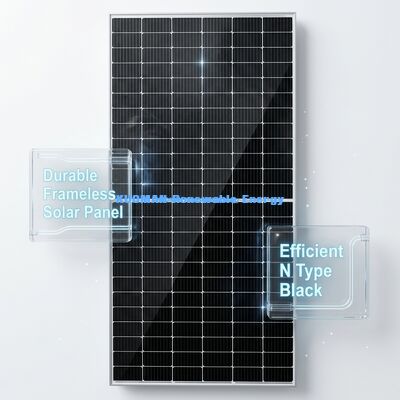

Solar Panels Black Solar Panel N Type 415 Watts Customized Panel
This solar module has the following mechanical characteristics: its dimensions are 2108 mm in length, 1048 mm in width, and 35 mm in height, with a total weight of 25 kg. The front surface is a 3.2mm high-transmission tempered glass. It is encapsulated using EVA and incorporates 144 pieces of 166mm x 83mm monocrystalline silicon cells.
The backsheet is made of a composite film, and the module is framed with an anodized aluminum profile. It features a junction box rated for 25A current with an IP68 protection rating (TUV certified). The attached cables have lengths of 400mm for the negative and 300mm for the positive terminals, and the connector is compatible with the MC4 type.
For shipping and packaging, the modules are configured to fit a 40-foot High Cube (40HQ) container. Each container can hold 726 modules in total. The modules are packed onto pallets, with 31 modules per pallet, resulting in 20 pallets per container. Each packaging box measures 2130 mm by 1145 mm by 1170 mm (Length x Width x Height) and has a gross weight of 775 kg.
| Cells | 108pcs 182x93mm Monocrystalline solar cells |
| Module Dimension | 1722x1134x30mm (LxWxH) |
| Module Weight | 20.5kg |
| Frame | Anodized aluminum profile |
| Junction Box | Rated current: 25A, IP68, TUV |
| Cable | Length Negative 400mm / Positive 300mm |
| Connector | Compatible with MC4 |
| Parameter | 410W | 415W | 420W | 425W | 430W |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 410W | 415W | 420W | 425W | 430W |
| Maximum Power Voltage (Vmp) | 31.13V | 31.32V | 31.51V | 31.70V | 31.88V |
| Maximum Power Current (Imp) | 13.17A | 13.25A | 13.33A | 13.41A | 13.49A |
| Open-circuit Voltage (Voc) | 37.73V | 37.92V | 38.11V | 38.30V | 38.49V |
| Short-circuit Current (Isc) | 13.91A | 13.99A | 13.99A | 14.15A | 14.23A |
| Module Efficiency STC (%) | 21.00 | 21.25 | 21.51 | 21.76 | 22.02 |
STC: Irradiance 1000W/m², cell temperature 25℃, AM1.5G
| Max System Voltage | 1000V/1500V DC |
| Temperature Range | -40°C ~ +85°C |
| Series Fuse Rating | 25A |
| NOTC | 45±2℃ |
| Temperature Coefficient of Isc (α-Isc) | +0.033%/℃ |
| Temperature Coefficient of Voc (β-Voc) | -0.29%/℃ |
| Temperature Coefficient of Pmax (Y-Pmp) | -0.39%/℃ |
