Product Details:
|
| Name: | 415 Watt Solar Panel | Size: | 210mmx210mm |
|---|---|---|---|
| Panel Efficiency: | 22% | Panel Dimensions: | 1722x1134x30mm |
| Highlight: | Black Solar Panel N Type,Commercial 415 Watt Solar Panel,N Type Solar Panel 415W |
||

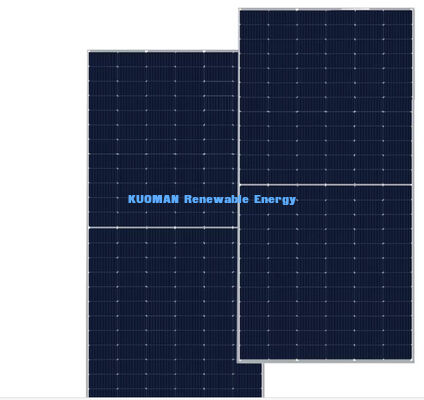

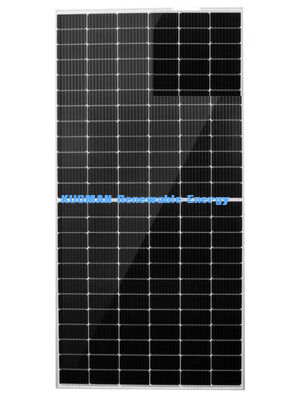

Solar Panels Black Solar Panel N Type 415 Watts Customized Panel
|
Structural Parameters
|
|
|
Cells
|
108pcs 182x93mm Monocrystalline solar cells
|
|
Module Dimension
|
1722x1134x30mm(LxWxH)
|
|
Module Weight
|
20.5kg
|
|
frame
|
Anodized aluminum profile
|
|
Junction Box
|
Rated current:25A,IP68,TUV
|
|
Cable
|
Length Negative 400mm/Positive 300mm
|
|
Connector
|
Compatible with MC4
|
|
STC
|
|||||
|
Maximum Power (Pmax)
|
410W
|
415W
|
420W
|
425W
|
430W
|
|
Maximum Power Voltage (Vmp)
|
31.13V
|
31.32V
|
31.51V
|
31.70V
|
31.88V
|
|
Maximum Power Current (Imp)
|
13.17A
|
13.25A
|
13.33A
|
13.41A
|
13.49A
|
|
Open-circuit Voltage (Voc)
|
37.73V
|
37.92V
|
38.11V
|
38.30V
|
38.49V
|
|
Short-circuit Current (Isc)
|
13.91A
|
13.99A
|
13.99A
|
14.15A
|
14.23A
|
|
Module Efficiency STC (%)
|
21.00
|
21.25
|
21.51
|
21.76
|
22.02
|
|
STC
|
Irradiance 1000W/m2,cell temperature 25℃,AM1.5G
|
||||
|
Operating Conditions
|
|
|
Maxi System Voltage
|
1000V/1500V DC
|
|
Temperature range
|
-40°C~+85°C
|
|
Series Fuse Rating
|
25A
|
|
NOTC
|
45±2℃
|
|
Temperature Coefficient of Isc(α-Isc)
|
+0.033%/℃
|
|
Temperature Coefficient of Voc(β-Voc)
|
-0.29%/℃
|
|
Temperature Coefficient of Pmax(Y-Pmp)
|
-0.39%/℃
|
Wide Operating Range:
The system can function in extreme temperatures, from -40°C to +85°C, making it versatile for various environments.
High Voltage Compatibility:
Supports 1000V/1500V DC, which is ideal for large-scale solar installations where higher voltages improve efficiency and reduce energy losses.
Temperature Impact on Performance:
The temperature coefficients provide critical insights into how the system performs under different thermal conditions:
Power Output (Pmax): Decreases by 0.39% for every 1°C increase in temperature.
Voltage (Voc): Decreases by 0.29% for every 1°C increase in temperature.
Current (Isc): Increases slightly by 0.033% for every 1°C increase in temperature.
Fuse Protection:
The 15A series fuse ensures the system is protected against overcurrent, enhancing safety and reliability.
Solar Power Systems:
Ideal for both residential and commercial solar installations, especially in regions with extreme temperatures.Energy Storage Systems:
Can be integrated with battery storage systems to optimize energy management.Off-Grid Solutions:
Suitable for remote locations where temperature variations are significant.Contact Person: Mr. Lily
