Product Details:
|
| Name: | Common Solar Panel | Size: | 210mmx210mm |
|---|---|---|---|
| Panel Efficiency: | 22% | Efficiency: | 15-20% |
| Dimensions: | Varies Depending On Size | Certifications: | UL, CE, TUV, IEC |
| Current: | 12.5 Amps | Power Output: | Varies Depending On Size And Efficiency |
| Material: | Silicon | Inverter Type: | String Or Micro Inverter |
| Maintenance: | Minimal Maintenance Required | Type: | Photovoltaic (PV) Panel |
| Weather Resistance: | IP65 | Inverter Compatibility: | Micro-inverter, String Inverter |
| Cell Type: | Monocrystalline/Polycrystalline | Installation: | Roof-mounted Or Ground-mounted |
| Highlight: | Silicon Common Solar Panel,Common Solar Panel N Type,PV Solar Panel Black |
||

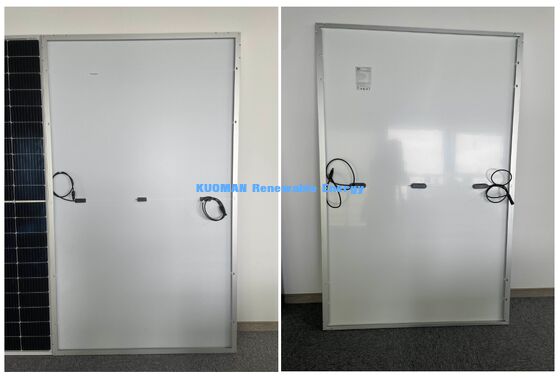

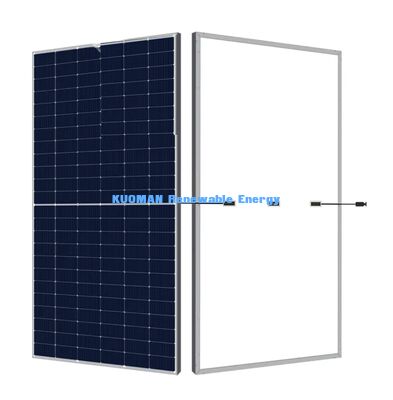

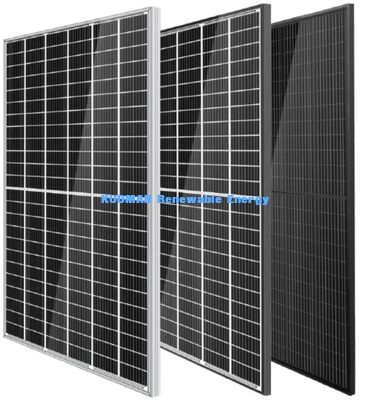

Solar Panels Black Solar Panel N Type Customized Panel for home, travel, car
Mechanical Characteristics
Dimensions: 2108 mm in length, 1048 mm in width, and 35 mm in height (L×W×H)
Weight: 25 kg per module
Front Glass: 3.2 mm thick, high-transmission tempered glass for maximum light penetration and impact resistance
Encapsulation: High-quality EVA (Ethylene Vinyl Acetate) for cell protection and durability
Cells: 144 pieces of monocrystalline solar cells, each measuring 166 mm × 83 mm
Backsheet: Composite film providing excellent insulation and weather resistance
Frame: Anodized aluminum profile offering corrosion resistance and structural strength
Junction Box: Rated at 25A current, IP68 waterproof rating, TUV certified for safety and reliability
Cable: Negative cable length 400 mm, Positive cable length 300 mm
Connector: Compatible with industry-standard MC4 connectors for easy and secure installation
|
Structural Parameters
|
|
|
Cells
|
108pcs 182x93mm Monocrystalline solar cells
|
|
Module Dimension
|
1722x1134x30mm(LxWxH)
|
|
Module Weight
|
20.5kg
|
|
frame
|
Anodized aluminum profile
|
|
Junction Box
|
Rated current:25A,IP68,TUV
|
|
Cable
|
Length Negative 400mm/Positive 300mm
|
|
Connector
|
Compatible with MC4
|
|
STC
|
|||||
|
Maximum Power (Pmax)
|
410W
|
415W
|
420W
|
425W
|
430W
|
|
Maximum Power Voltage (Vmp)
|
31.13V
|
31.32V
|
31.51V
|
31.70V
|
31.88V
|
|
Maximum Power Current (Imp)
|
13.17A
|
13.25A
|
13.33A
|
13.41A
|
13.49A
|
|
Open-circuit Voltage (Voc)
|
37.73V
|
37.92V
|
38.11V
|
38.30V
|
38.49V
|
|
Short-circuit Current (Isc)
|
13.91A
|
13.99A
|
13.99A
|
14.15A
|
14.23A
|
|
Module Efficiency STC (%)
|
21.00
|
21.25
|
21.51
|
21.76
|
22.02
|
|
STC
|
Irradiance 1000W/m2,cell temperature 25℃,AM1.5G
|
||||
|
Operating Conditions
|
|
|
Maxi System Voltage
|
1000V/1500V DC
|
|
Temperature range
|
-40°C~+85°C
|
|
Series Fuse Rating
|
25A
|
|
NOTC
|
45±2℃
|
|
Temperature Coefficient of Isc(α-Isc)
|
+0.033%/℃
|
|
Temperature Coefficient of Voc(β-Voc)
|
-0.29%/℃
|
|
Temperature Coefficient of Pmax(Y-Pmp)
|
-0.39%/℃
|
Wide Operating Range:
The system can function in extreme temperatures, from -40°C to +85°C, making it versatile for various environments.
High Voltage Compatibility:
Supports 1000V/1500V DC, which is ideal for large-scale solar installations where higher voltages improve efficiency and reduce energy losses.
Temperature Impact on Performance:
The temperature coefficients provide critical insights into how the system performs under different thermal conditions:
Power Output (Pmax): Decreases by 0.39% for every 1°C increase in temperature.
Voltage (Voc): Decreases by 0.29% for every 1°C increase in temperature.
Current (Isc): Increases slightly by 0.033% for every 1°C increase in temperature.
Fuse Protection:
The 15A series fuse ensures the system is protected against overcurrent, enhancing safety and reliability.
Solar Power Systems:
Ideal for both residential and commercial solar installations, especially in regions with extreme temperatures.
Energy Storage Systems:
Can be integrated with battery storage systems to optimize energy management.
Off-Grid Solutions:
Suitable for remote locations where temperature variations are significant.
Packaging Configuration
Container Type: 40-foot High Cube (40HQ)
Modules per Container: 726 panels
Modules per Pallet: 31 panels
Pallets per Container: 20 pallets
Packaging Box Dimensions: 2130 mm in length, 1145 mm in width, and 1170 mm in height
Box Gross Weight: 775 kg per packaged box
