Product Details:
|
| Panel Efficiency: | 22% | Dimensions: | 2108x1048x35 Mm |
|---|---|---|---|
| Weight: | 25 Kg | Front Glass: | 3.2 Mm Tempered |
| Cells: | 144 Monocrystalline | Max Voltage: | 1000V/1500V DC |
| Highlight: | 500W-600W Solar Panel,22% Efficiency Photovoltaic Panel,IP65 Weather Resistance Solar Module |
||

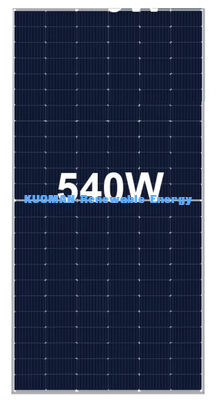

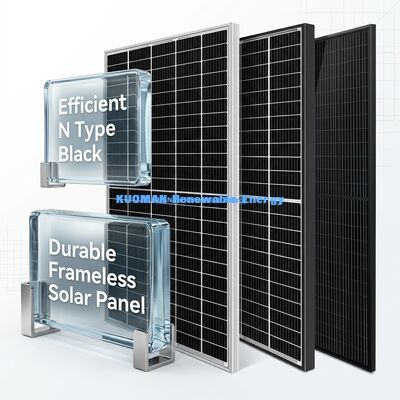

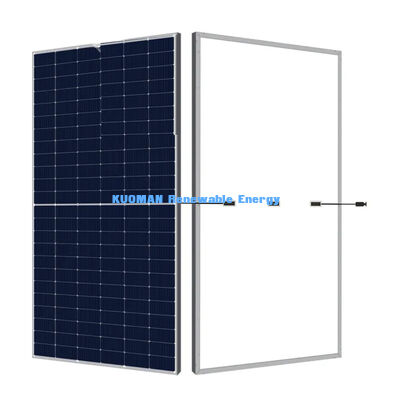

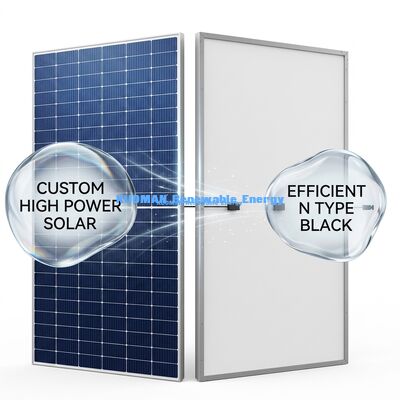

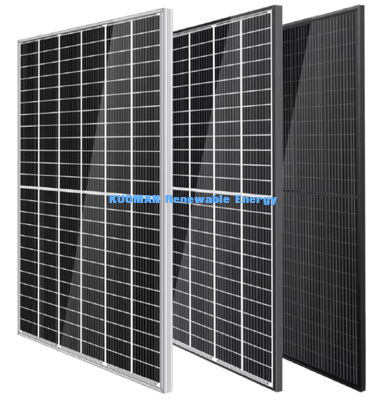

KUOMAN high-performance solar panels designed for industrial power production with robust construction and reliable photovoltaic performance.
| Parameter | Specification |
|---|---|
| Max System Voltage | 1000V/1500V DC |
| Temperature Range | -40°C to +85°C |
| Series Fuse Rating | 15A |
| NOTC | 45±2℃ |
| Temperature Coefficient of Isc | +0.033%/℃ |
| Temperature Coefficient of Voc | -0.29%/℃ |
| Temperature Coefficient of Pmax | -0.39%/℃ |
Standard packing options: 1pc, 2pcs, 5pcs, 10pcs, or 25pcs per carton/pallet. Custom packing requirements are available.
Production begins within 5-20 days after payment confirmation. We select optimal shipping methods to ensure safe delivery worldwide in approximately 7-15 working days.
| Shipping Method | Arrival Point | Departure From |
|---|---|---|
| By Sea | Sea Port | Any port in China |
| By Air | Specification | Any port in China |
| By Railway | Your Door | Any railway station |
| By Express | Specification | Zhengzhou City |
Kuoman Solar manufactures two main product lines: high-strength aluminum frame rigid panels (100W-500W) for residential, commercial, and utility-scale installations, and ultra-lightweight ETFE flexible panels (30W-500W) for RVs, marine applications, outdoor adventures, and OEM integration.
Our rigid panels achieve up to 21.1% module efficiency, while our flexible ETFE panels feature high-efficiency PERC cells with up to 23.0% conversion efficiency, among the highest in the flexible solar category.
Yes. Our panels feature an ultra-low power temperature coefficient of -0.39%/°C, meaning they lose less efficiency in high heat compared to standard panels. They are tested for continuous operation from -40°C to +85°C.
