Product Details:
|
| Panel Efficiency: | 22% | Panel Dimensions: | 1903x1134x35mm |
|---|---|---|---|
| Voltage: | 24 Volts | Size: | 60 X 40 Inches |
| Type: | Photovoltaic | Power Output: | Customized |
| Current: | 12.5 Amps | Inverter Compatibility: | Micro-inverter, String Inverter |
| Certifications: | UL, CE, TUV | Material: | Silicon |
| Weather Resistance: | IP65 | Warranty: | 25 Years |
| Color: | Blue Or Black | Name: | Common Solar Panel |
| Highlight: | 600W Solar Panel Industry,Producing Photovoltaic Solar Panels,Photovoltaic Solar Panels 600W |
||

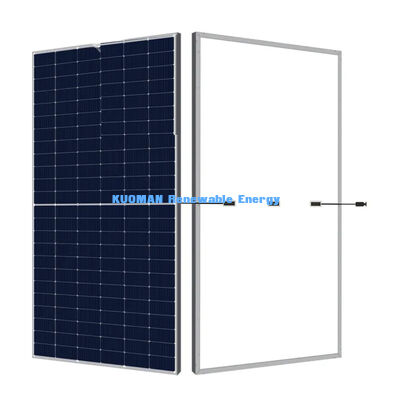

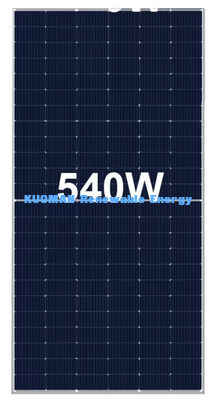

500W-600W Solar Panel Industry Power Producing Photovoltaic Solar Panels
KUOMAN Solar Panel Details:
Mechanical Characteristics
Dimensions: 2108 mm in length, 1048 mm in width, and 35 mm in height (L×W×H)
Weight: 25 kg per module
Front Glass: 3.2 mm thick, high-transmission tempered glass for maximum light penetration and impact resistance
Encapsulation: High-quality EVA (Ethylene Vinyl Acetate) for cell protection and durability
Cells: 144 pieces of monocrystalline solar cells, each measuring 166 mm × 83 mm
Backsheet: Composite film providing excellent insulation and weather resistance
Frame: Anodized aluminum profile offering corrosion resistance and structural strength
Junction Box: Rated at 25A current, IP68 waterproof rating, TUV certified for safety and reliability
Cable: Negative cable length 400 mm, Positive cable length 300 mm
Connector: Compatible with industry-standard MC4 connectors for easy and secure installation
|
Operating Conditions
|
|
|
Maxi System Voltage
|
1000V/1500V DC
|
|
Temperature range
|
-40°C~+85°C
|
|
Series Fuse Rating
|
15A
|
|
NOTC
|
45±2℃
|
|
Temperature Coefficient of Isc(α-Isc)
|
+0.033%/℃
|
|
Temperature Coefficient of Voc(β-Voc)
|
-0.29%/℃
|
|
Temperature Coefficient of Pmax(Y-Pmp)
|
-0.39%/℃
|
Packing:
Normally packing: 1pc/2pcs/5pcs/10pcs/25pcs per carton/pallet
Individual packing requirement is acceptable.
Shipping:
Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation.
We will find the most suitable and safe mode of transportation,don't worry about package damage or loss. It takes about 7~15 working days to worldwide.
Please note us your contact details include your phone number for easy contacting from shipping company officer.
|
Shipping Methods
|
Arrive AT
|
Delivery From
|
|
By Sea
|
Sea Port Want
|
Any port in china
|
|
By Air
|
Specification
|
Any port in china
|
|
By Railway
|
Your door
|
Any railway station
|
|
By express
|
Specification
|
Zhengzhou City
|
KUOMAN Case:
General Product Questions
Q: What types of solar panels does Kuoman offer?
A: Kuoman Solar manufactures two main product lines: high-strength aluminum frame rigid panels (100W–500W) for residential, commercial, and utility-scale installations, and ultra-lightweight ETFE flexible panels (30W–500W) for RVs, marine applications, outdoor adventures, and OEM integration.
Q: What is the efficiency of your solar panels?
A: Our rigid panels achieve up to 21.1% module efficiency, while our flexible ETFE panels feature high-efficiency PERC cells with up to 23.0% conversion efficiency, among the highest in the flexible solar category.
Q: Are Kuoman panels suitable for high-temperature environments like deserts or tropical regions?
A: Yes. Our panels feature an ultra-low power temperature coefficient of -0.39%/°C, meaning they lose less efficiency in high heat compared to standard panels. They are tested for continuous operation from -40°C to +85°C.
