Product Details:
|
| Name: | 700W Solar Panel | Size: | 210mmx210mm |
|---|---|---|---|
| Panel Efficiency: | 22% | Panel Dimensions: | 1722x1134x30mm |
| Weather Resistance: | IP65 | Cell Type: | Monocrystalline / Polycrystalline |
| Highlight: | Popular 700W Solar Panel,Common Solar Panel 700W,Customized Solar Sun Panel |
||

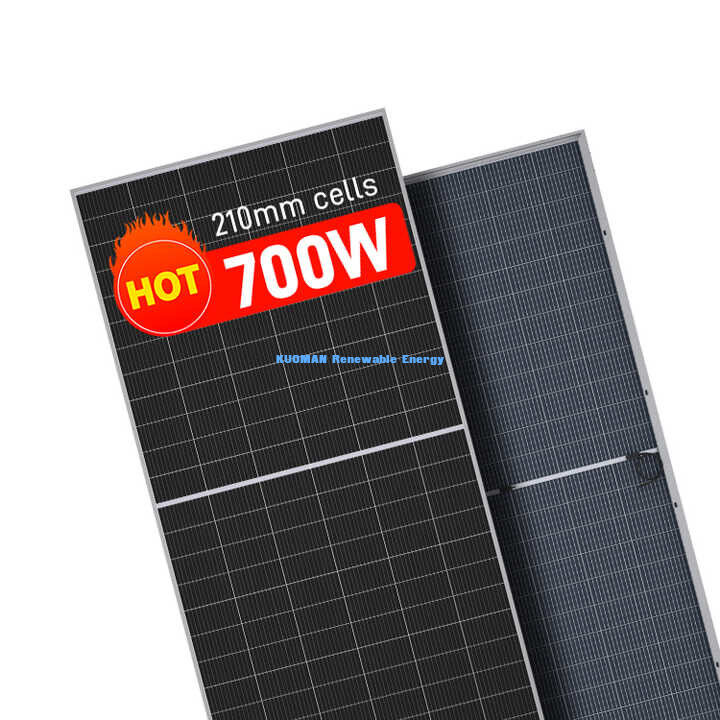

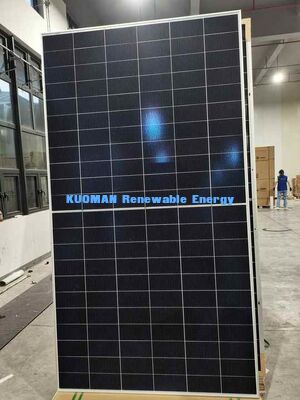

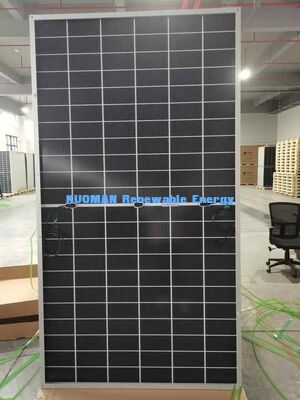

Popular Common Solar Panel 700W Customized Solar Sun Panel 1722x1134x30mm
|
Maximum Power(Pmax/W)
|
680
|
690
|
700
|
710
|
720
|
|
Maximum Power Voltage(Vmp/V)
|
41.49
|
41.80
|
42.10
|
42.40
|
42.70
|
|
Maximum Power Current(Lmp/A)
|
16.39
|
16.51
|
16.63
|
16.75
|
16.87
|
|
Open Circuit Voltage(Voc/V)
|
49.5
|
49.82
|
50.13
|
50.45
|
50.76
|
|
Short Circuit Current(Lsc/A)
|
17.19
|
17.31
|
17.43
|
17.55
|
17.67
|
|
Module Efficiency(%)
|
21.89
|
22.21
|
22.53
|
22.85
|
23.18
|
|
Power Output Tolerance(W)
|
0~+5
|
||||
|
Nominal Operating Cell Temp.(NOCT)
|
44℃±2℃
|
||||
|
Temperature Coefficient of Lsc
|
+0.04%/℃
|
||||
|
Temperature Coefficient of Voc
|
-0.24%/℃
|
||||
|
Temperature Coefficient of Pmax
|
-0.26%/℃
|
||||
KUOMAN Case:
|
Shipping Methods
|
Arrive AT
|
Delivery From
|
|
By Sea
|
Sea Port Want
|
Any port in china
|
|
By Air
|
Specification
|
Any port in china
|
|
By Railway
|
Your door
|
Any railway station
|
|
By express
|
Specification
|
Zhengzhou City
|
Mechanical Characteristics
Dimensions: 2108 mm in length, 1048 mm in width, and 35 mm in height (L×W×H)
Weight: 25 kg per module
Front Glass: 3.2 mm thick, high-transmission tempered glass for maximum light penetration and impact resistance
Encapsulation: High-quality EVA (Ethylene Vinyl Acetate) for cell protection and durability
Cells: 144 pieces of monocrystalline solar cells, each measuring 166 mm × 83 mm
Backsheet: Composite film providing excellent insulation and weather resistance
Frame: Anodized aluminum profile offering corrosion resistance and structural strength
Junction Box: Rated at 25A current, IP68 waterproof rating, TUV certified for safety and reliability
Cable: Negative cable length 400 mm, Positive cable length 300 mm
Connector: Compatible with industry-standard MC4 connectors for easy and secure installation
General Product Questions
Q: What types of solar panels does Kuoman offer?
A: Kuoman Solar manufactures two main product lines: high-strength aluminum frame rigid panels (100W–500W) for residential, commercial, and utility-scale installations, and ultra-lightweight ETFE flexible panels (30W–500W) for RVs, marine applications, outdoor adventures, and OEM integration.
Q: What is the efficiency of your solar panels?
A: Our rigid panels achieve up to 21.1% module efficiency, while our flexible ETFE panels feature high-efficiency PERC cells with up to 23.0% conversion efficiency, among the highest in the flexible solar category.
Q: Are Kuoman panels suitable for high-temperature environments like deserts or tropical regions?
A: Yes. Our panels feature an ultra-low power temperature coefficient of -0.39%/°C, meaning they lose less efficiency in high heat compared to standard panels. They are tested for continuous operation from -40°C to +85°C.
Q: Do you offer bifacial or shingled cell technology?
A: Yes. Our flexible ETFE series incorporates bifacial transparent encapsulation for rear-side light harvesting, and select models feature shingled (imbrication) cell architecture to maximize active area and efficiency.
