Product Details:
|
| Name: | Solar Power Panel | Size: | 182mmx182mm |
|---|---|---|---|
| Panel Efficiency: | 22% | Panel Dimensions: | 1722x1134x30mm |
| Weight: | 25kg | Encapsulation: | EVA |
| Highlight: | Solar Power Panel 300W,Solar Power Panel 400W,Popular Solar Panels 300W |
||

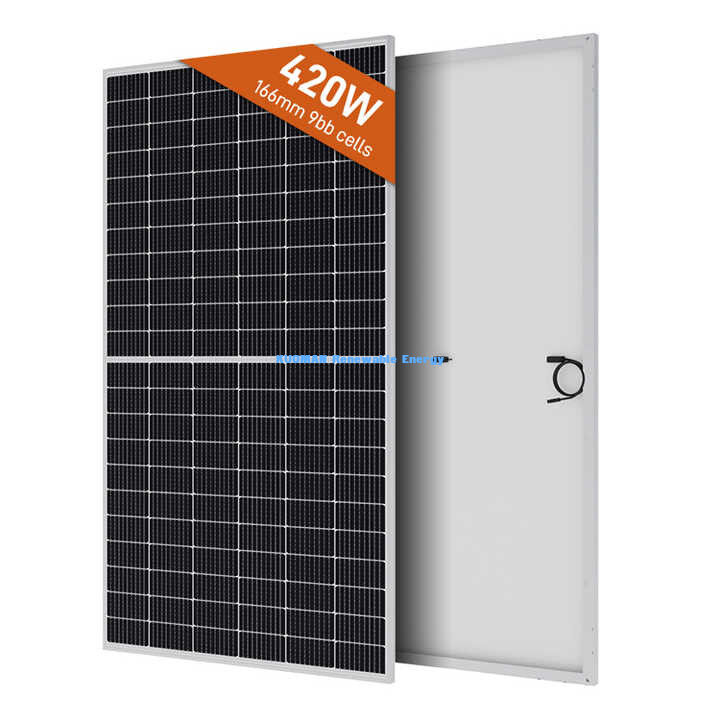

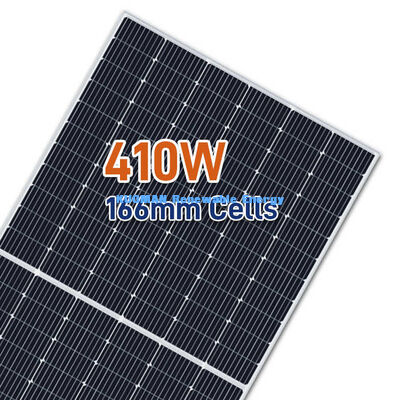

300-400W Customized popular Solar Power Panel
KUOMAN Solar Panel Details:
Mechanical Characteristics
Dimensions: 2108 mm in length, 1048 mm in width, and 35 mm in height (L×W×H)
Weight: 25 kg per module
Front Glass: 3.2 mm thick, high-transmission tempered glass for maximum light penetration and impact resistance
Encapsulation: High-quality EVA (Ethylene Vinyl Acetate) for cell protection and durability

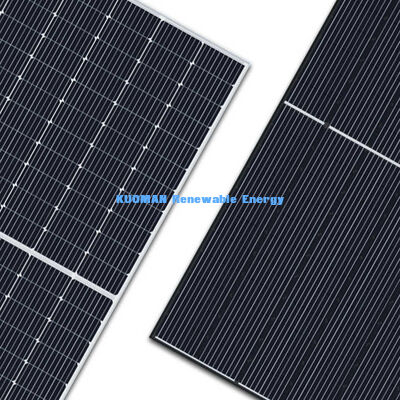

Cells: 144 pieces of monocrystalline solar cells, each measuring 166 mm × 83 mm
Backsheet: Composite film providing excellent insulation and weather resistance

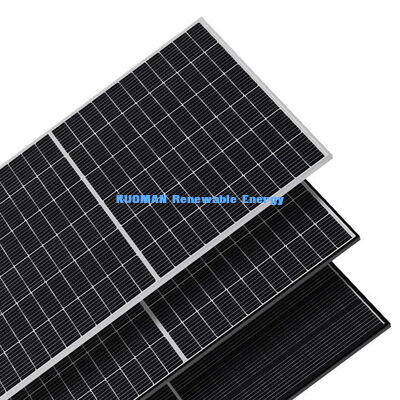

Frame: Anodized aluminum profile offering corrosion resistance and structural strength
Junction Box: Rated at 25A current, IP68 waterproof rating, TUV certified for safety and reliability
Cable: Negative cable length 400 mm, Positive cable length 300 mm
Connector: Compatible with industry-standard MC4 connectors for easy and secure installation
|
Operating Conditions
|
|
|
Maxi System Voltage
|
1000V/1500V DC
|
|
Temperature range
|
-40°C~+85°C
|
|
Series Fuse Rating
|
15A
|
|
NOTC
|
45±2℃
|
|
Temperature Coefficient of Isc(α-Isc)
|
+0.033%/℃
|
|
Temperature Coefficient of Voc(β-Voc)
|
-0.29%/℃
|
|
Temperature Coefficient of Pmax(Y-Pmp)
|
-0.39%/℃
|
Packing:
Normally packing: 1pc/2pcs/5pcs/10pcs/25pcs per carton/pallet
Individual packing requirement is acceptable.
Shipping:
Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation.
We will find the most suitable and safe mode of transportation,don't worry about package damage or loss.
It takes about 7~15 working days to worldwide.
Please note us your contact details include your phone number for easy contacting from shipping company officer.
|
Shipping Methods
|
Arrive AT
|
Delivery From
|
|
By Sea
|
Sea Port Want
|
Any port in china
|
|
By Air
|
Specification
|
Any port in china
|
|
By Railway
|
Your door
|
Any railway station
|
|
By express
|
Specification
|
Zhengzhou City
|
