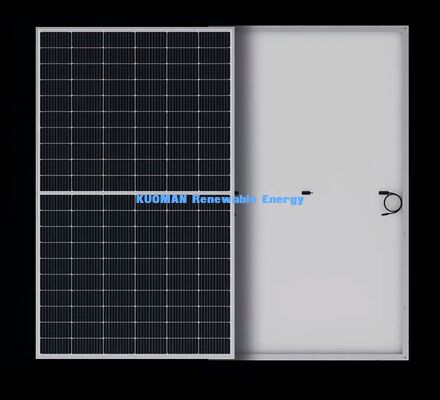

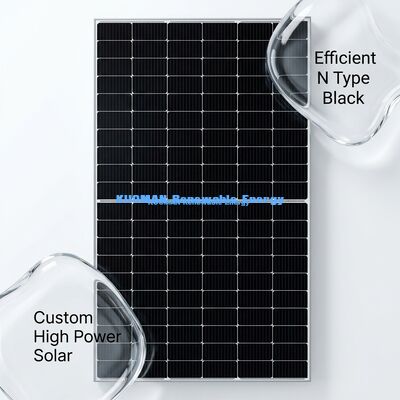

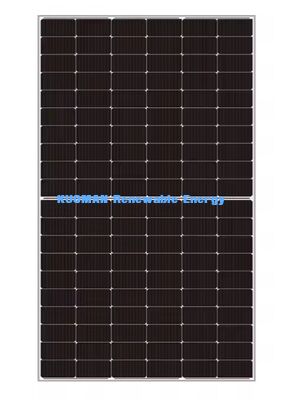

Custom Made Monocrystalline Solar Panels 400-500W with 22% Efficiency and Half-Cut Cell Design

Large Image : Custom Made Monocrystalline Solar Panels 400-500W with 22% Efficiency and Half-Cut Cell Design

Product Details:

Place of Origin:	China
Brand Name:	Kuoman
Model Number:	KM400-500W Solar Panel

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD1-100/pcs
Packaging Details:	standard international carton packing
Delivery Time:	general two weeks, more quantity based on exact quantity
Payment Terms:	L/C, L/C
Supply Ability:	10000pcs/month

Contact Now

Custom Made Monocrystalline Solar Panels 400-500W with 22% Efficiency and Half-Cut Cell Design

Description

Cell Size:	182mmx182mm	Panel Efficiency:	22%
Panel Dimensions:	1903x1134x35mm	Max Power:	450-470W
Open Circuit Voltage:	40.02-40.8V	Short Circuit Current:	13.88-14.22A
Highlight:	400-500W Solar Panel , Monocrystalline Solar Module , 22% Efficiency Photovoltaic Module

Custom Made Monocrystalline Solar Panels 400W-500W 182mm×182mm

Product Overview

High quality solar panel offering 400-500W power output with customized specifications for optimal performance.

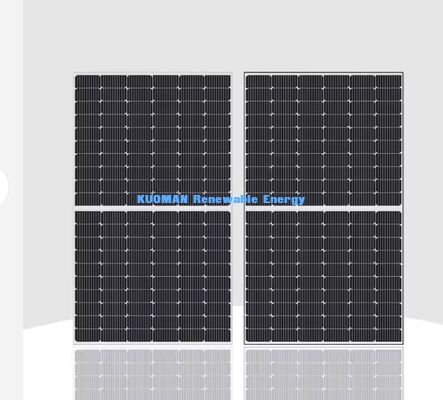

Half-cut solar cell design (182×91mm monocrystalline solar module)
Higher efficiency through optimized cell configuration
Ultra-high power and high efficiency performance
Excellent PID resistance for long-term reliability
Superior low irradiance performance
1% first year degradation, 0.4% linear degradation thereafter
Certified to withstand severe environmental conditions

Technical Specifications

Module Type	450M	455M	460M	465M	470M
Max Power-Pm [W]	450	455	460	465	470
Open Circuit Voltage-Voc[V]	40.02	40.2	40.38	40.59	40.8
Short Circuit Current-lsc[A]	13.88	13.97	14.06	14.14	14.22
Max Power Voltage-Vmp[V]	33.91	34.06	34.22	34.39	34.57
Max Power Current-lmp[A]	13.28	13.36	13.45	13.53	13.6
Module Efficiency-p[%]	20.85	21.08	21.31	21.55	21.78

KUOMAN Case Design

Professional enclosure design for optimal protection and performance.
