100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy

100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy
100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy 100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy 100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy 100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy

Large Image :  100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy

Product Details:
Place of Origin: China
Brand Name: Kuoman
Model Number: KM100-200 Customized Solar Panel
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1-100/pcs
Packaging Details: standard international carton packing
Delivery Time: general two weeks, more quantity based on exact quantity
Payment Terms: L/C, L/C
Supply Ability: 10000pcs/month
Contact Now

100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy

Description
Panel Efficiency: 22% Panel Dimensions: 1903x1134x35mm
Voltage: 24 Volts Current: 12.5 Amps
Temperature Range: -40 °C To +85°C Series Fuse Rating: 15A
Highlight:

100W-200W Solar Panel

,

22% Efficiency Photovoltaic Panel

,

IP65 Weather Resistance Solar Module

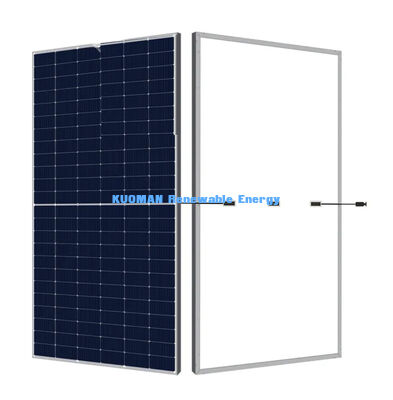

Versatile Photovoltaic Solar Panels 100W-200W For Sustainable Energy Solutions
KUOMAN Solar Panel Details:
100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy 0 100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy 1 100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy 2 100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy 3 100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy 4
Operating Conditions
Maximum System Voltage: 1000V/1500V DC
This indicates the maximum voltage the system can handle. The choice between 1000V and 1500V depends on the specific configuration and application (e.g., residential vs. commercial solar systems).
Temperature Range: -40°C to +85°C
The system is designed to operate efficiently in extreme temperatures, making it suitable for a wide range of climates, from freezing cold to hot desert environments.
Series Fuse Rating: 15A
This is the maximum current rating for the fuse used in the system to protect against overcurrent conditions.
NOCT (Nominal Operating Cell Temperature): 45 ±2℃
NOCT is the temperature at which the solar cells operate under standard conditions (800 W/m² irradiance, 20°C ambient temperature, and 1 m/s wind speed). This value helps estimate the real-world performance of the system.
Temperature Coefficients
Temperature Coefficient of Isc (α-Isc): +0.033%/℃
This indicates how the short-circuit current (Isc) changes with temperature. A positive value means the current increases slightly as temperature rises.
Temperature Coefficient of Voc (β-Voc): -0.29%/℃
This shows how the open-circuit voltage (Voc) changes with temperature. A negative value means the voltage decreases as temperature rises.
Temperature Coefficient of Pmax (γ-Pmp): -0.39%/℃
This reflects how the maximum power output (Pmax) changes with temperature. A negative value means the power output decreases as temperature increases.
Shipping Methods & Delivery Options
  • By Sea: Delivery from any port in China to the destination sea port. Ideal for large or heavy shipments.
  • By Air: Delivery from any port in China to the destination airport. Faster option for urgent orders.
  • By Railway: Delivery from any railway station in China to your door. A reliable option for landlocked destinations.
  • By Express: Delivery from Zhengzhou City, China, to your door. Fastest and most convenient option.
Key Points for Customers
  • Flexible Shipping Options: Choose the method that best suits your needs based on urgency, budget, and order size.
  • Global Delivery: Orders can be shipped worldwide from any port or railway station in China.
  • Door-to-Door Service: Available for railway and express shipping, ensuring convenience for customers.
  • Cost and Speed Trade-Off: Sea freight is cost-effective but slower, while air and express are faster but more expensive.
KUOMAN Case Examples
100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy 5 100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy 6 100W-200W Solar Panel with 22% Efficiency and IP65 Weather Resistance for Sustainable Energy 7
