Renewable Clean Eneregy Bendable bifacial flexible solar panel carbon fiber Clean Power

Renewable Clean Eneregy Bendable bifacial flexible solar panel carbon fiber Clean Power

1.
2.

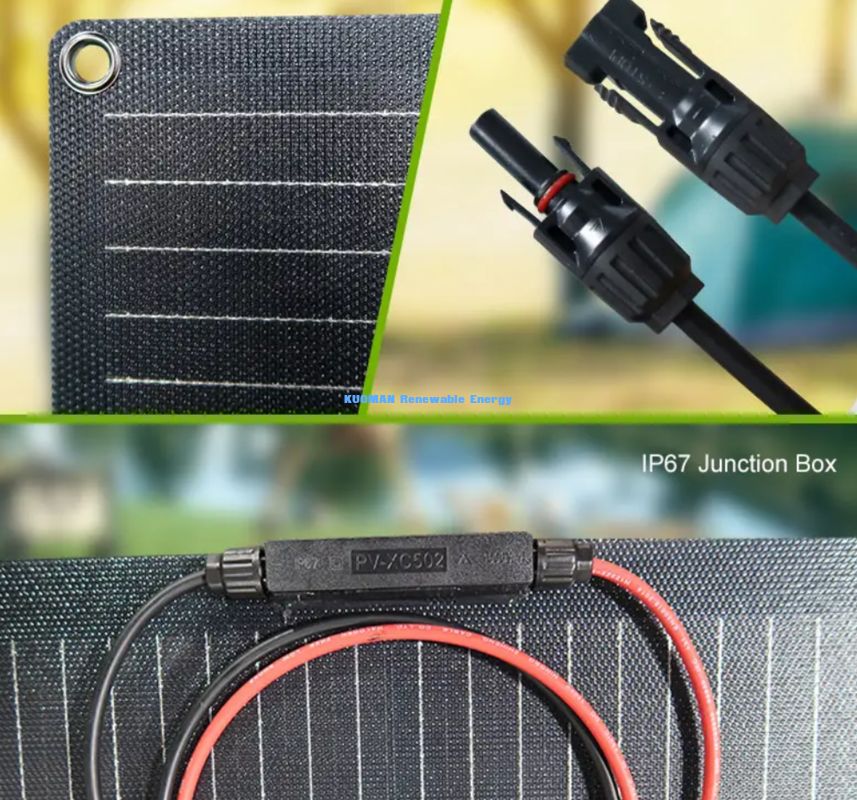

3. Details of 200W flexible solar panel shown:
4. 1.Fully waterproof conjunction box with silicon glue,specially with diode built in toavoid conversed connection;
5. 2. Eyelet with Larger size ,easy to fix ;
6. 3. 10PCS of eyelets left for multiple location to fix;
7. 4.High efficiency solar cell up to 23% ;5.Universal and robust MC4 connector.
8.
9.

Flexible Solar Panel Parameter:

Solar Panel General Information

Brand Name: KUOMAN SOLAR

Model Number: KM FL210W

Panel Type: Ultra-Thin Flexible Monocrystalline Solar Panel

OEM/ODM: Available (Custom branding/design upon request)

Warranty: 1 Year Limited Manufacturer Warranty

2. Material Composition (5-Layer Structure)

Top Layer: FFC (Flexible Fluoropolymer Composite)

Weather-resistant, UV-stable, and anti-reflective coating.

Encapsulation: Dual EVA (Ethylene-Vinyl Acetate) Layers

Superior adhesion and protection against moisture/impact.

Core: High-Efficiency Monocrystalline Silicon Cells

Cell Size: 182mm × 182mm (large-format for higher output).

Backing: Carbon Fiber Substrate

Lightweight yet rigid for durability and flexibility.

3. Electrical & Performance

Rated Power: 210W

4. Physical Attributes

Dimensions: 115cm (L) × 98.5cm (W)

Compact design for versatile installations.

Thickness: ~2-3mm (Ultra-thin, bendable up to 30° curvature).

Weight: Approximately 2.9kg (Lightweight for mobile applications).

Color Options: White (non-reflective) / Black (aesthetic finish).

5. Durability & Certifications

Weather Resistance: IP65-rated (Waterproof, dustproof).

Temperature Range: -40°C to +85°C (Operational).

Bendability: Can flex repeatedly without cell damage.

Hail Rating: Withstands 25mm hail at 23m/s.

Panel Efficiency: ≥23% (Industry-leading for flexible panels)

Optimal Applications:

• RV/Caravan roofs, Marine (boats/yachts), Curved surfaces, Portable systems.

FAQ

1.Can you supply OEM &ODM service ?

A:Yes, only MOQ regards.

2.What's kind of certificates and patent your products have acquired ?

A:1) Full of CE,ROHS,FCC,PSE,UL.2)Utility model of China and Appearance Patent of Europe.

3.Can I test the sample?

A:Yes,we can supply one sample to test with charge,and refunded of product itself on mass order.
