360 Degree Bendable bifacial flexible solar panel 200W FFC and carbon fiber

I'm Online Chat Now

360 Degree Bendable bifacial flexible solar panel 200W FFC and carbon fiber

360 Degree Bendable bifacial flexible solar panel 200W FFC and carbon fiber
360 Degree Bendable bifacial flexible solar panel 200W FFC and carbon fiber 360 Degree Bendable bifacial flexible solar panel 200W FFC and carbon fiber

Large Image :  360 Degree Bendable bifacial flexible solar panel 200W FFC and carbon fiber

Product Details:
Place of Origin: China
Brand Name: KUOMAN
Model Number: KMRX200W
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Supply Ability: 1000pcs/month

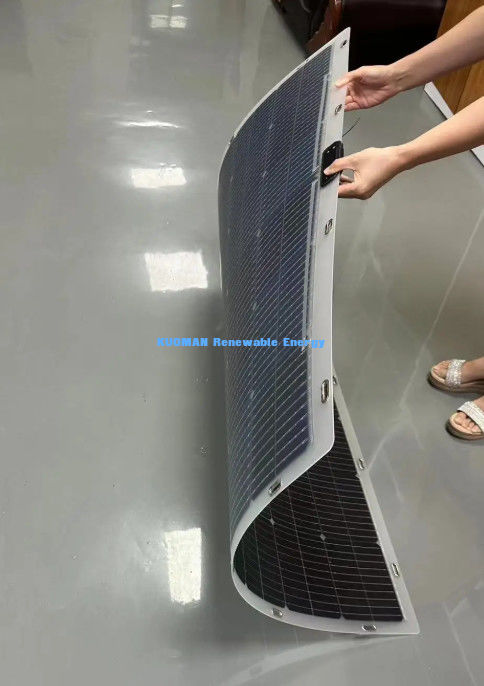

360 Degree Bendable bifacial flexible solar panel 200W FFC and carbon fiber

Description
Panel Dimensions: 115*98.5CM Brand Name: KUOMAN
Work Time (h): 24 Hours Material: Poly Silicon
Color: Black Max. Power: 200W

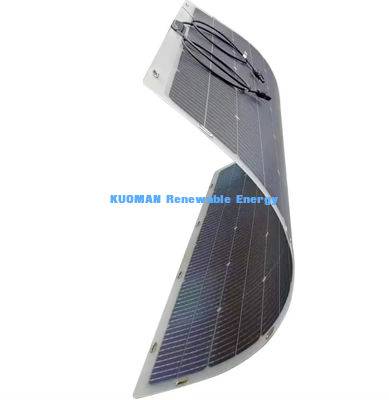

360 Degree Bendable bifacial flexible solar panel 200W FFC and carbon fiber

Advantage of 200W flexible solar panel :
1)Ultra thin and light;
2)IP68 waterproof level;
3)With long time life span;
4)Full power output;
5)Multifuntion port for more different devices,like 24V battery,power station,power generator,powerbank;
6)Can be bent to 360°;
7)Don't worry the solar cell with damage to lead to short current and fire risk--safe and stable;
8)With transparent material with bifacial function ;
9)with CE,ROHS,FCC certification;
10)With short leading time for 500-1000PCS for only 20 days.

360 Degree Bendable bifacial flexible solar panel 200W FFC and carbon fiber 0

Flexible solar panel Details Specification:

Output Power(@STC ) 210.0 W ±5%
Open Voltage(@STC) 48.9V ±5%
Standard Voltage(@STC) 40.0V ±5%
Standard Current(@STC) 5.3A ±5%
Short Circuit(@STC) 5.7A ±5%
Denier type eyelets Inner-Diameter:6*25mm,Outer diameter:10*30mm,silver color
Accessories Converge MC4 cable,14AWG

360 Degree Bendable bifacial flexible solar panel 200W FFC and carbon fiber 1

Details of 200W flexible solar panel shown:
1.Fully waterproof conjunction box with silicon glue,specially with diode built in toavoid conversed connection;
2. Eyelet with Larger size ,easy to fix ;
3. 10PCS of eyelets left for multiple location to fix;
4.High efficiency solar cell up to 23% ;5.Universal and robust MC4 connector.



Flexible Home Travel RV bifacial flexible solar panel 200W FFC and carbon fiber 1

Flexible Solar Panel Specification:

Brand Name KUOMAN SOLAR
Model Number KM FL210W
Material FFC compound material+EVA+Mono solar cell+EVA+Carbon Fiber
Color White/Black
Cell size 182mmx182mm
Panel Dimensions 115*98.5CM
Panel Efficiency >=23%
OEM/ODM Availble
Warranty 1year

Popular Travelling Housing Photovoltaic Flexible Solar Panel ETFE Thin Film 100W 210W  Flexible Solar Panels 2

Popular Travelling Housing Photovoltaic Flexible Solar Panel ETFE Thin Film 100W 210W  Flexible Solar Panels 3

Popular Travelling Housing Photovoltaic Flexible Solar Panel ETFE Thin Film 100W 210W  Flexible Solar Panels 4

Popular Travelling Housing Photovoltaic Flexible Solar Panel ETFE Thin Film 100W 210W  Flexible Solar Panels 5

FAQ
1.Can you supply OEM &ODM service ?
A:Yes, only MOQ regards.
2.What's kind of certificates and patent your products have acquired ?
A:1) Full of CE,ROHS,FCC,PSE,UL.2)Utility model of China and Appearance Patent of Europe.
3.Can I test the sample?
A:Yes,we can supply one sample to test with charge,and refunded of product itself on mass order.
