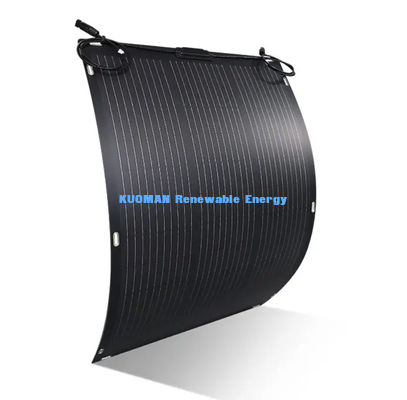

High-Efficiency Flexible Solar Panel ETFE Thin Film 100W 210W for Outdoor Adventures and Mountain Climbing

I'm Online Chat Now

High-Efficiency Flexible Solar Panel ETFE Thin Film 100W 210W for Outdoor Adventures and Mountain Climbing

High-Efficiency Flexible Solar Panel ETFE Thin Film 100W 210W for Outdoor Adventures and Mountain Climbing
High-Efficiency Flexible Solar Panel ETFE Thin Film 100W 210W for Outdoor Adventures and Mountain Climbing High-Efficiency Flexible Solar Panel ETFE Thin Film 100W 210W for Outdoor Adventures and Mountain Climbing High-Efficiency Flexible Solar Panel ETFE Thin Film 100W 210W for Outdoor Adventures and Mountain Climbing

Large Image :  High-Efficiency Flexible Solar Panel ETFE Thin Film 100W 210W for Outdoor Adventures and Mountain Climbing

Product Details:
Place of Origin: China
Brand Name: KUOMAN
Model Number: KMRX200W
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Supply Ability: 1000pcs/month

High-Efficiency Flexible Solar Panel ETFE Thin Film 100W 210W for Outdoor Adventures and Mountain Climbing

Description
Panel Dimensions: 115*98.5CM Brand Name: KUOMAN
Work Time (h): 24 Hours Material: Poly Silicon
Color: Black Max. Power: 200W
Solar Cell: Monocrystalline Peak Voltage: 18V
Installation: Easy Peel-and-stick Adhesive Backing Output Tolerance: ± 3%
Logo Print: Customization Max System Voltage: 1000/600 V
Maximum Power: 100W Accessories: 10A Charge Controller, 10ft Cable With Alligator Clips
Current At Pmax: 8.34A(IMP) Connector: Compatible Connector
Maximum Power Voltage: 18V

High-Efficiency Flexible Solar Panel ETFE Thin Film 100W 210W for Outdoor Adventures and Mountain Climbing



Applicant: Home solar energy storage, RV travel, outdoor travel, outdoor adventure, mountain climbing, picnic and other entertainment venues

High-Efficiency Flexible Solar Panel ETFE Thin Film 100W 210W for Outdoor Adventures and Mountain Climbing 0

Advantage of 200W flexible solar panel :
1)Ultra thin and light;
2)IP68 waterproof level;
3)With long time life span;
4)Full power output;
5)Multifuntion port for more different devices,like 24V battery,power station,power generator,power bank;

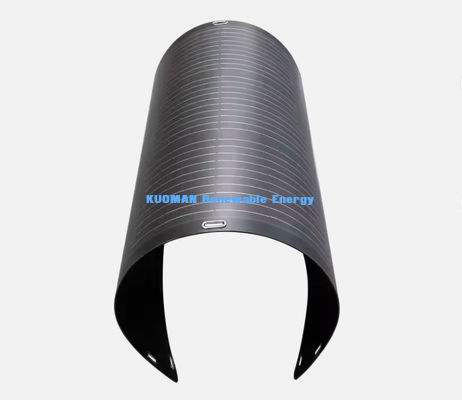

6)Can be bent to 360°;
7)Don't worry the solar cell with damage to lead to short current and fire risk--safe and stable;
8)With transparent material with bifacial function ;
9)with CE,ROHS,FCC certification;



Power

Open-circuit

(Voc/V)

Short-circuit
(Isc/A)
Design Voltage
(Vmp/V)

Max. Power

Current (Imp/A)

Solar Panel

Efficiency(%)

Product

Architecture

Size (mm)
100W 21.9V 5.75A 19.2V 5.5A 24.20% 7/9 layer 918*580*2.5
120W 22.6V 6.93A 19.2V 6.63A 24.20% 7/9 layer 1084*580*2.5
150W 21.21V 9.24A 18V 8.84A 24.20% 7/9 layer 1020*764*2.5
180W 21.21V 11.1A 18V 10.61A 24.20% 7/9 layer 1203*764*2.5
200W 23.1V 11.09A 19.8V 10.6A 24.20% 7/9 layer 1316*764*2.5
250W 22.5V 13.89A 19.2V 13.28A 24.20% 7/9 layer 1279*948*2.5
300W 44.9V 8.64A 38.5V 8.26A 24.20% 7/9 layer 1618*948*2.5
350W 44.54V 9.87A 37.9V 9.44A 24.20% 7/9 layer 1799*948*2.5
400W 44.54V 11.62A 37.8V 11.11A 24.20% 7/9 layer 1771*1132*2.5
450W 42.42V 13.84A 36.12V 13.23A 24.20% 7/9 layer 1977*1132*2.5
500W 42.42V 15.26A 36.12V 14.59A 24.20% 7/9 layer 2164*1132*2.5



Product Feature:

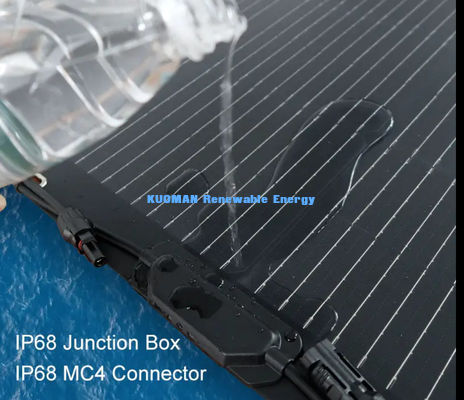

1.Fully waterproof conjunction box with silicon glue,specially with diode built in to
avoid conversed connection;
2. Eyelet with Larger size ,easy to fix ;
3. 10PCS of eyelets left for multiple location to fix;
4.High efficiency solar cell up to 23% ;
5.Universal and robust MC4 connector .

Popular Travelling Housing Photovoltaic Flexible Solar Panel ETFE Thin Film 100W 210W  Flexible Solar Panels 1

Flexible Solar Panel Specification:

Brand Name KUOMAN SOLAR
Model Number KM FL210W
Material FFC compound material+EVA+Mono solar cell+EVA+Carbon Fiber
Color White/Black
Cell size 182mmx182mm
Panel Dimensions 115*98.5CM
Panel Efficiency >=23%
OEM/ODM Availble
Warranty 1year

Popular Travelling Housing Photovoltaic Flexible Solar Panel ETFE Thin Film 100W 210W  Flexible Solar Panels 2

Popular Travelling Housing Photovoltaic Flexible Solar Panel ETFE Thin Film 100W 210W  Flexible Solar Panels 3

Popular Travelling Housing Photovoltaic Flexible Solar Panel ETFE Thin Film 100W 210W  Flexible Solar Panels 4

Popular Travelling Housing Photovoltaic Flexible Solar Panel ETFE Thin Film 100W 210W  Flexible Solar Panels 5

FAQ
1.Can you supply OEM &ODM service ?
A:Yes, only MOQ regards.
2.What's kind of certificates and patent your products have acquired ?
A:1) Full of CE,ROHS,FCC,PSE,UL.2)Utility model of China and Appearance Patent of Europe.
3.Can I test the sample?
A:Yes,we can supply one sample to test with charge,and refunded of product itself on mass order.
