Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions

Name: Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions
Brand: KUOMAN INDUSTRY LIMITED
SKU: KMRX200W
Availability: InStock

All Products

Common Solar Panel
(17)

Flexible Solar Panel
(17)

Portable Folding Solar Panel
(32)

Home Battery Storage
(16)

Commercial Energy Storage
(6)

Lithium Battery
(16)

Solar Street Light
(22)

Solar Flood Light
(9)

I'm Online Chat Now

Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions

Large Image : Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions

Product Details:

Place of Origin:	China
Brand Name:	KUOMAN
Model Number:	KMRX200W

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Supply Ability:	1000pcs/month

Contact Now

Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions

Description

Panel Dimensions:	115*98.5CM	Brand Name:	KUOMAN
Work Time (h):	24 Hours	Material:	Poly Silicon
Color:	Black	Max. Power:	200W
Solar Cell:	Monocrystalline	Peak Voltage:	18V
Installation:	Easy Peel-and-stick Adhesive Backing	Output Tolerance:	± 3%
Logo Print:	Customization	Max System Voltage:	1000/600 V
Maximum Power:	100W	Accessories:	10A Charge Controller, 10ft Cable With Alligator Clips
Current At Pmax:	8.34A(IMP)	Connector:	Compatible Connector
Maximum Power Voltage:	18V

Flexible Solar Panel ETFE Thin Film 100W 210W Solar Panels for Flexible and Lightweight Energy Solutions

Applicant: Home solar energy storage, RV travel, outdoor travel, outdoor adventure, mountain climbing, picnic and other entertainment venues

KUOMAN Solar Panel SPecification


			Power

			Open-circuit Voltage (Voc/V)

			Short-circuit Current

			(Isc/A)

			Design Voltage

			(Vmp/V)

			Maximum Power Current (Imp/A)

			Solar Panel Efficiency(%)

			Product Architecture

			SIZE

			100W

			21.9V

			5.75A

			19.2V

			5.5A

			24.20%

			7-layer process

			918*580*2.5mm

			120W

			22.6V

			6.93A

			19.2V

			6.63A

			1084*580*2.5mm

			150W

			21.21V

			9.24A

			18V

			8.84A

			1020*764*2.5mm

			180W

			21.21V

			11.1A

			18V

			10.61A

			1203*764*2.5mm

			200W

			23.1V

			11.09A

			19.8V

			10.6A

			1316*764*2.5mm

			250W

			22.5V

			13.89A

			19.2V

			13.28A

			1279*948*2.5mm

			300W

			44.9V

			8.64A

			38.5V

			8.26A

			9-layer process

			1618*948*2.5mm

			350W

			44.54V

			9.87A

			37.9V

			9.44A

			1799*948*2.5mm

			400W

			44.54V

			11.62A

			37.8V

			11.11A

			1771*1132*2.5mm

			450W

			42.42V

			13.84A

			36.12V

			13.23A

			1977*1132*2.5mm

			500W

			42.42V

			15.26A

			36.12V

			14.59A

			2164*1132*2.5mm

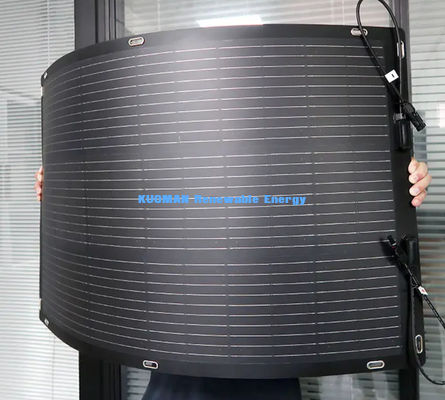

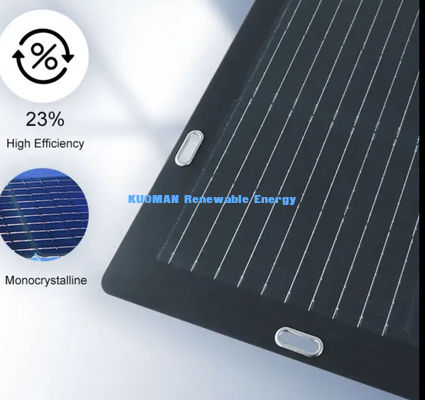

Details of 200W flexible solar panel shown:

Fully waterproof conjunction box with silicon glue,specially with diode built in to

avoid conversed connection;

Eyelet with Larger size ,easy to fix ;

10PCS of eyelets left for multiple location to fix;

High efficiency solar cell up to 23% ;

Universal and robust MC4 connector .

Specification

			item

			value

			Brand Name

			KUOMAN SOLAR

			Model Number

			KM FL210W

			Place of Origin

			Guangdong,China

			Material

			FFC compound material+EVA+Mono solar cell+EVA+Carbon Fiber

			Color

			White/Black

			Cell size

			182mmx182mm

			Panel Dimensions

			115*98.5CM

			Panel Efficiency

			>=23%

			OEM/ODM

			Availble

			Warranty

			1year

FAQ
1.Can you supply OEM &ODM service ?

A:Yes, only MOQ regards.

2.What’s kind of certificates and patent your products have acquired ?

A:1) Full of CE,ROHS,FCC,PSE,UL.

2)Utility model of China and Appearance Patent of Europe.

3.Can I test the sample?

A:Yes,we can supply one sample to test with charge,and refunded of product itself on mass order.
