Product Details:
|
| Charging Current: | 100A | Nominal Capacity: | 100Ah |
|---|---|---|---|
| Dimensions: | 607.7*362.5*162.3 (mm) | Depth Of Discharge: | 90% |
| Working Voltage Range: | 43.2V-58.4V | Total Energy: | 5120Wh |
| Nominal Voltage: | 51.2V | Battery Chemistry: | LiFePO4 |
| Floating Charge Voltage: | 51.2V | Work Temperature: | -20℃~55℃ |
| Max Output Power: | 3.3KVA/3.68KVA/4.4KVA/4.6KVA/5.5KVA/6KVA | Round-Trip Efficiency: | 95% |
| Highlight: | Off-Grid LiFePO4 battery with WiFi monitoring,51.2V 100Ah home battery storage,Bluetooth Lifepo4 battery with high efficiency |
||

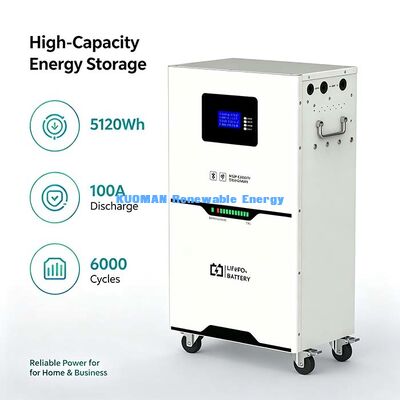

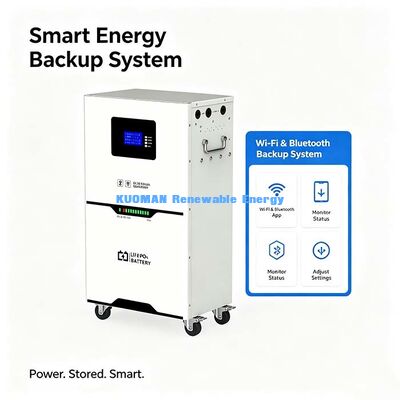

Off-Grid Backup 51.2V 100Ah LiFePO4 Battery WiFi Bluetooth Monitoring >98% Round Trip Efficiency
This 51.2V 100Ah 5.12kWh LiFePO4 energy storage battery is a floor-standing, wheeled cabinet-type lithium iron phosphate battery designed for residential solar backup and off-grid power systems. It supports parallel connection of up to 15 units to expand capacity, features LCD real-time display, and offers optional Bluetooth & WiFi mobile app monitoring. With 6000 cycles @0.5C, 80% DOD and >98% round-trip efficiency, it provides stable emergency backup power for homes, cabins and remote locations. Full certifications including UN38.3, MSDS, CE and IEC guarantee global safety compliance.
Technical Specifications
Battery Type
LiFePO4
Nominal Voltage
51.2V
Nominal Capacity
100Ah Energy 5120Wh
Dimensions (L×W×H)
607.7 * 362.5 * 162.3 (mm) Weight 43KG
Efficiency (Round-trip)
>98%
Max in Parallel
15PCS
Voltage Range
43.2V ~ 58.4V
Recommended Charge Voltage
57.6V
Max Charge Voltage
58.4V
Recommended Charge Current
70A
Max Continuous Charge Current
100A
Recommended Discharge Voltage
44.8V
Max Discharge Voltage
43.2V
Max Continuous Discharge Current
100A
Cycle Life (0.5C,25℃@80% DOD)
6000 Cycles
Storage Temperature
-20℃ ~ 60℃
Wi-Fi & Bluetooth App (Option)
Yes
Certification
UN38.3 / MSDS / CE / IEC
