Product Details:
|
| Nominal Voltage: | 3.2V | Nominal Capacity: | 100-300AH |
|---|---|---|---|
| Nominal Energy: | 320Wh 966.4Wh | Discharge Rate: | 0.5~1C |
| Dimensions: | 275*183*70mm | Net Weight: | 5.7kg |
| The Discharge Rate: | 0.5C | Product Type: | Energy Storage System |
| Special Features: | Type C, Cigar Lighter, USB | Safety System: | Protection/Isolation |
| Apllication: | AGV AMR | Operating Voltage: | 380V/400V/415V/480V |
| Operating Humidity: | 0-95%RH | Storage Temperature: | -20°C To 45°C |
| Maintenance: | Regular/On-demand | ||
| Highlight: | 3.2V 100Ah lithium iron phosphate battery,prismatic cell battery for solar projects,low-temperature discharge battery for cold areas |
||
✅Excellent Safety & Thermal Stability
LiFePO4 chemistry delivers far better heat‑resistance than ternary lithium batteries. The integrated explosion‑proof safety valve prevents swelling and over‑pressure risks for safer long‑time operation.
✅ Exceptionally Long Service Life
6000‑cycle lifespan greatly outperforms traditional lead‑acid batteries. It significantly lowers long‑term replacement and maintenance costs for your energy‑storage system.
✅ Outstanding Low‑Temperature Performance
Supports stable discharging at temperatures as low as ‑30℃. Perfectly suited for outdoor, remote and cold‑climate solar energy‑storage installations.
A: The recommended maximum single‑cell charge voltage is 3.65V. We highly recommend installing a matched BMS (Battery Management System) to protect your finished battery pack.
A: It reaches up to 6000 theoretical cycles while keeping 80% SOH under 25℃. Actual cycle life will change depending on operating temperature, discharge depth and daily‑use habits.

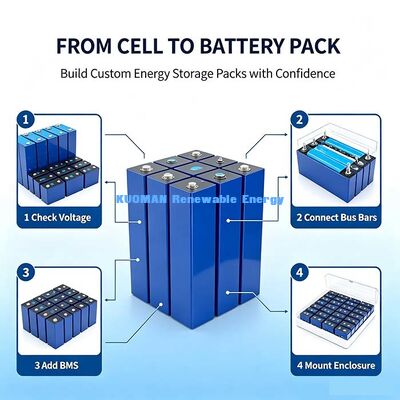

A: Yes. You can combine multiple cells in series‑parallel configurations to build 12V, 24V, 48V or higher‑voltage battery packs. Free bus‑bars and fasteners are provided for assembly. A compatible BMS is mandatory.
