3.2V 100Ah CATL Prismatic LiFePO4 Battery Cell, Free Connecting Busbars, Lithium Cell for 12V 24V 48V Battery Pack Making

3.2V 100Ah CATL Prismatic LiFePO4 Battery Cell, Free Connecting Busbars, Lithium Cell for 12V 24V 48V Battery Pack Making
3.2V 100Ah CATL Prismatic LiFePO4 Battery Cell, Free Connecting Busbars, Lithium Cell for 12V 24V 48V Battery Pack Making 3.2V 100Ah CATL Prismatic LiFePO4 Battery Cell, Free Connecting Busbars, Lithium Cell for 12V 24V 48V Battery Pack Making

Large Image :  3.2V 100Ah CATL Prismatic LiFePO4 Battery Cell, Free Connecting Busbars, Lithium Cell for 12V 24V 48V Battery Pack Making

Product Details:
Place of Origin: China
Brand Name: KUOMAN
Certification: CE UL
Payment & Shipping Terms:
Price: USD1-100/pcs
Packaging Details: standard international carton packing
Delivery Time: general two weeks, more quantity based on exact quantity
Supply Ability: 10000pcs/month
Contact Now

3.2V 100Ah CATL Prismatic LiFePO4 Battery Cell, Free Connecting Busbars, Lithium Cell for 12V 24V 48V Battery Pack Making

Description
Nominal Voltage: 3.2V Nominal Capacity: 100-300AH
Nominal Energy: 320Wh 966.4Wh Discharge Rate: 0.5~1C
Dimensions: 275*183*70mm Net Weight: 5.7kg
The Discharge Rate: 0.5C Product Type: Energy Storage System
Special Features: Type C, Cigar Lighter, USB Safety System: Protection/Isolation
Apllication: AGV AMR Operating Voltage: 380V/400V/415V/480V
Operating Humidity: 0-95%RH Storage Temperature: -20°C To 45°C
Maintenance: Regular/On-demand
Highlight:

3.2V 100Ah LiFePO4 battery cell

,

CATL prismatic lithium cell

,

LiFePO4 battery with busbars

3.2V 100Ah CATL Prismatic LiFePO4 Battery Cell, Free Connecting Busbars, Lithium Cell for 12V 24V 48V Battery Pack Making

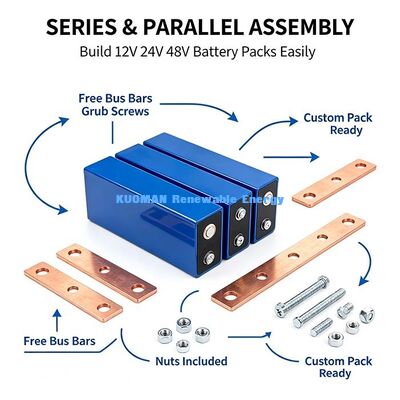

Equipped with built‑in explosion‑proof safety valves, sturdy threaded positive and negative terminals, and unique traceable QR codes on every unit, this cell ensures stable, secure and long‑term performance. Each battery is supplied with complimentary bus‑bars, grub screws and nuts, allowing simple series‑parallel assembly for custom‑built battery packs. It is the ideal lithium‑ion core for off‑grid solar stations, home energy‑storage systems, backup power supplies and industrial electric power storage solutions.
CATL LiFePO4 battery cell front view
CATL LiFePO4 battery cell side view
Battery Specifications
  • Nominal Voltage: 3.2V
  • Rated Capacity: 100Ah
  • Nominal Energy: 320Wh
  • Max Discharge Current: 0.5C / 1C
  • Maximum Charge Voltage: 3.65V
  • AC Impedance Resistance: 0.39±0.05mΩ
  • Charging Temperature Range: 0℃ ~ 55℃
  • Discharging Temperature Range: -30℃ ~ 55℃
  • Theoretical Cycle Life: 6000 cycles (80% SOH @ 25℃)
  • Net Weight: 2.27±0.30 Kg
  • Dimensions (L×W×H): 200.33×172.2×33.22±0.5mm
Key Features
  • Built-in explosion-proof safety valve for over-pressure protection
  • Fully-installed, durable positive & negative threaded terminals
  • Unique traceable QR-code marked on every single battery cell
  • Free matching bus-bars, grub screws and nuts included per unit
  • Rigid prismatic aluminum shell for enhanced physical protection
  • 3-year official manufacturer-backed warranty
Battery cell application illustration
Application Scenarios
  • Residential & commercial solar energy-storage systems
  • Off-grid solar power stations and remote renewable-energy projects
  • Home & industrial emergency backup power supplies
  • Uninterruptible Power Supply (UPS) systems
  • RV, camper-van, caravan and marine / boat lithium battery packs
  • Low-speed electric vehicles, golf carts and leisure electric transport
  • Telecommunication base-station power backup
  • Large-scale electric power energy-storage systems
  • Custom-built 12V / 24V / 48V lithium-ion battery pack assembly
Battery installation and usage scenario
