100Ah 3.2V Lithium Iron Phosphate Prismatic Cell, Built‑in Safety Valve Lithium Battery Pack

Large Image : 100Ah 3.2V Lithium Iron Phosphate Prismatic Cell, Built‑in Safety Valve Lithium Battery Pack

Product Details:

Place of Origin:	China
Brand Name:	KUOMAN
Certification:	CE UL

Payment & Shipping Terms:

Price:	USD1-100/pcs
Packaging Details:	standard international carton packing
Delivery Time:	general two weeks, more quantity based on exact quantity
Supply Ability:	10000pcs/month

Contact Now

100Ah 3.2V Lithium Iron Phosphate Prismatic Cell, Built‑in Safety Valve Lithium Battery Pack

Description

Nominal Voltage:	3.2V	Nominal Capacity:	100-300AH
Nominal Energy:	320Wh 966.4Wh	Discharge Rate:	0.5~1C
Dimensions:	27518370mm	Net Weight:	5.7kg
The Discharge Rate:	0.5C	Product Type:	Energy Storage System
Special Features:	Type C, Cigar Lighter, USB	Safety System:	Protection/Isolation
Apllication:	AGV AMR	Operating Voltage:	380V/400V/415V/480V
Operating Humidity:	0-95%RH	Storage Temperature:	-20°C To 45°C
Maintenance:	Regular/On-demand
Highlight:	100Ah lithium iron phosphate battery , 3.2V prismatic battery cell , built-in safety valve battery pack

100Ah 3.2V Lithium Iron Phosphate Prismatic Cell, Built-in Safety Valve Lithium Battery Pack

New Grade-A CATL 3.2V 100Ah LiFePO4 prismatic battery cell is a premium lithium-iron-phosphate energy-storage core designed for renewable energy projects. With a nominal energy output of 320Wh, this prismatic lithium cell delivers an ultra-long theoretical lifespan of 6000 cycles while retaining 80% State-of-Health at 25℃.

Battery Specifications

Nominal Voltage: 3.2V
Rated Capacity: 100Ah
Nominal Energy: 320Wh
Max Discharge Current: 0.5C / 1C
Maximum Charge Voltage: 3.65V
AC Impedance Resistance: 0.39±0.05mΩ
Charging Temperature Range: 0℃ ~ 55℃
Discharging Temperature Range: -30℃ ~ 55℃
Theoretical Cycle Life: 6000 cycles (80% SOH @ 25℃)
Net Weight: 2.27±0.30 Kg
Dimensions (L×W×H): 200.33×172.2×33.22±0.5mm

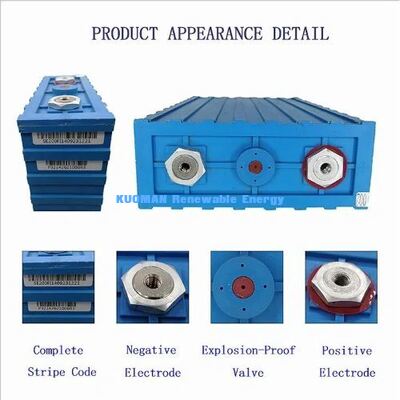

Key Features

Built-in explosion-proof safety valve for over-pressure protection
Fully-installed, durable positive & negative threaded terminals
Unique traceable QR-code marked on every single battery cell
Free matching bus-bars, grub screws and nuts included per unit
Rigid prismatic aluminum shell for enhanced physical protection
3-year official manufacturer-backed warranty

Application Scenarios

Residential & commercial solar energy-storage systems
Off-grid solar power stations and remote renewable-energy projects
Home & industrial emergency backup power supplies
Uninterruptible Power Supply (UPS) systems
RV, camper-van, caravan and marine / boat lithium battery packs
Low-speed electric vehicles, golf carts and leisure electric transport
Telecommunication base-station power backup
Large-scale electric power energy-storage systems
Custom-built 12V / 24V / 48V lithium-ion battery pack assembly
