Product Details:
|
| Material: | Poly Silicon | Current At Pmax: | 8.34A(IMP) |
|---|---|---|---|
| Panel Efficiency: | >=23% | Max Power: | 100W |
| Panel Dimensions: | 115*98.5CM | Peak Voltage: | 18V |
| Open-circuit Voltage: | 21.9V | Short-circuit Current: | 5.75A |
| Design Voltage: | 19.2V | Maximum Power Current: | 5.5A |
| Solar Panel Efficiency: | 24.20% | Product Architecture: | 7-layer Process |
| Highlight: | 100W flexible solar panel for RV,bendable carbon-fiber solar panel,off-grid power flexible solar panel |
||

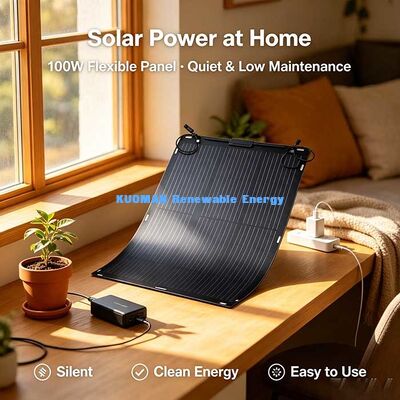

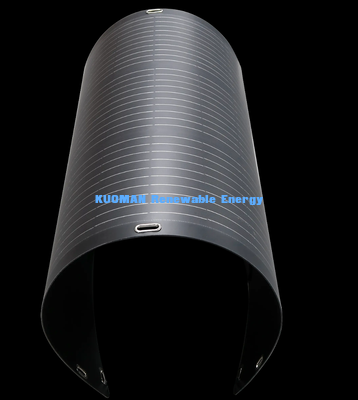

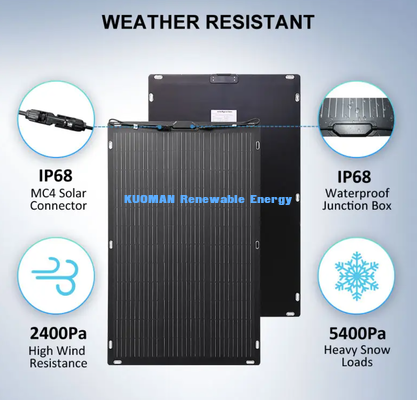

Our 100W high‑efficiency flexible solar panel is engineered for off‑grid mobile power solutions. Built with premium carbon‑fiber & FFC materials, this lightweight bendable solar module delivers stable solar power without cracking under curved installation. Weighing only 2kg and equipped with an IP68 waterproof junction box & standard MC4 connector, it provides long‑lasting, reliable renewable energy for your outdoor adventures, mobile living and off‑grid power projects.
| Power | Open-circuit Voltage (Voc/V) | Short-circuit Current (Isc/A) | Design Voltage (Vmp/V) | Maximum Power Current (Imp/A) | Solar Panel Efficiency(%) | Product Architecture | SIZE |
|---|---|---|---|---|---|---|---|
| 100W | 21.9V | 5.75A | 19.2V | 5.5A | 24.20% | 7-layer process | 918*580*2.5mm |
| 120W | 22.6V | 6.93A | 19.2V | 6.63A | 1084*580*2.5mm | ||
| 150W | 21.21V | 9.24A | 18V | 8.84A | 1020*764*2.5mm | ||
| 180W | 21.21V | 11.1A | 18V | 10.61A | 1203*764*2.5mm | ||
| 200W | 23.1V | 11.09A | 19.8V | 10.6A | 1316*764*2.5mm | ||
| 250W | 22.5V | 13.89A | 19.2V | 13.28A | 1279*948*2.5mm | ||
| 300W | 44.9V | 8.64A | 38.5V | 8.26A | 9-layer process | 1618*948*2.5mm | |
| 350W | 44.54V | 9.87A | 37.9V | 9.44A | 1799*948*2.5mm | ||
| 400W | 44.54V | 11.62A | 37.8V | 11.11A | 1771*1132*2.5mm | ||
| 450W | 42.42V | 13.84A | 36.12V | 13.23A | 1977*1132*2.5mm | ||
| 500W | 42.42V | 15.26A | 36.12V | 14.59A | 2164*1132*2.5mm |
| Brand Name | KUOMAN SOLAR |
| Model Number | KM FL210W |
| Place of Origin | Guangdong, China |
| Material | FFC compound material+EVA+Mono solar cell+EVA+Carbon Fiber |
| Color | White/Black |
| Cell size | 182mm x 182mm |
| Panel Dimensions | 115 x 98.5 CM |
| Panel Efficiency | >=23% |
| OEM/ODM | Available |
| Warranty | 1 year |
Yes, only MOQ regards.
1) Full of CE, ROHS, FCC, PSE, UL.
2) Utility model of China and Appearance Patent of Europe.
Yes, we can supply one sample to test with charge, and refunded of product itself on mass order.
