Product Details:
|
| Panel Dimensions: | 115*98.5CM | Max Power: | 200W |
|---|---|---|---|
| Peak Voltage: | 18V | Current At Pmax: | 8.34A(IMP) |
| Output Tolerance: | ± 3% | Max System Voltage: | 1000/600 V |
| Highlight: | 50W flexible solar panel for outdoor travel,foldable portable solar power supply,light-duty flexible solar panel with warranty |
||

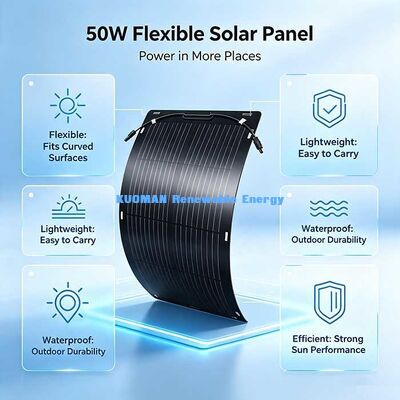

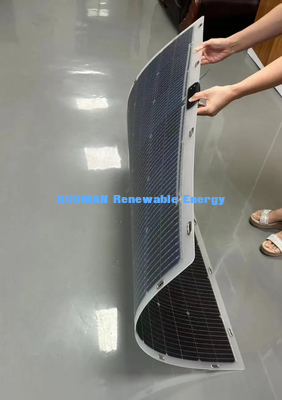

Our 50W Flexible Foldable Solar Panel is a lightweight, ultra‑thin off‑grid power solution built with premium carbon‑fiber reinforced material. Capable of 360° bending without micro‑cracks, this waterproof solar panel delivers stable, long‑lasting renewable power for all your outdoor and mobile energy needs. No complicated professional installation required, perfect for power‑hungry users seeking a durable, low‑maintenance solar charger for off‑grid adventures.
| Parameter | Value |
|---|---|
| Model | KM-RX30W |
| Panel Type | Semi-Flexible PERC Monocrystalline |
| Cell Technology | Shingled (Imbrication), No Busbars |
| Peak Power (Pmax) | 31.5W (±3%) |
| Module Efficiency | 23.0% |
| Voltage at Pmax (Vmp) | 18.0V |
| Current at Pmax (Imp) | 1.47A |
| Open-Circuit Voltage (Voc) | 21.38V |
| Short-Circuit Current (Isc) | 1.62A |
| Dimensions (L×W×H) | 502 × 345 × 2.0 mm |
| Weight | 0.65 kg |
| Surface Material | Matte ETFE (Anti-Reflective) |
| Backsheet Options | White / Black Carbon Fiber Composite |
| Junction Box | IP65, Potting Encapsulated |
| Cable & Connector | 18AWG, MC4 or DC5521 Selectable |
| Operating Temperature | -40°C to +85°C |
| Max System Voltage | 60V DC |
| Configuration | Details |
|---|---|
| Individual Packaging | Protective foam sleeve + poly bag |
| Master Carton Qty | 20 panels |
| Master Carton Dimensions | 63 × 63 × 58 cm |
| Master Carton Weight | 16.0 kg |
| MOQ (Stock Color) | 100 units |
| MOQ (Private Label) | 500 units |
