Product Details:
|
| Input Voltage: | 12V/24V/48V | MPPT Voltage: | 50-450VDC |
|---|---|---|---|
| Output Frequency: | 50Hz/60Hz | Efficiency: | >85% |
| Output Voltage: | 110V/220V/230V/240V | Output Type: | Single |
| Parallel Operation: | Up To 6 Units | Dual MPPTs: | Yes |
| WiFi Monitoring: | Yes | Max Efficiency: | 98% |
| Protection Rating: | IP65 & NEMA/UL Type 4X | AC Input/output: | 2-phase |
| Highlight: | 6KW hybrid solar inverter,IP65 solar inverter off grid,on grid tie PV inverter |
||

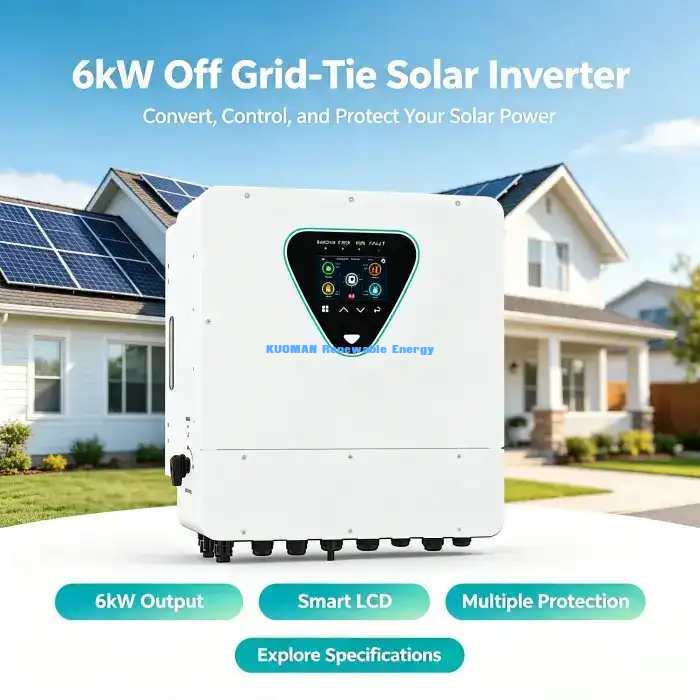

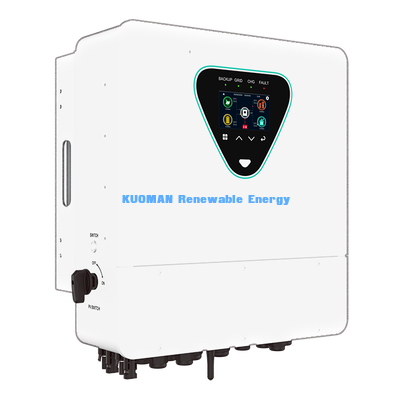

The BSR IP65-L Series is a robust hybrid inverter designed for maximum flexibility and performance. Key features include:
| Model Range | BSR IP65-6KL, 8KL, 10KL, 12KL (3KW to 12KW power range) |
|---|---|
| Input/Output | 2-phase AC input and output, supporting standard grid voltages |
| PV Input | Wide MPPT voltage range of 50-450VDC |
| Protection Rating | IP65 & NEMA/UL Type 4X enclosure for dust and water resistance |
| Efficiency | High conversion efficiency, with a maximum of 98% |
This inverter stands out with its industry-leading efficiency of up to 98%, converting more solar power into usable electricity. The IP65/NEMA 4X rating guarantees reliable operation in harsh outdoor environments, eliminating the need for a separate protective enclosure. Its dual MPPT design optimizes energy yield from two separate PV arrays, even with different orientations or shading conditions.
Ideal for a wide range of solar energy projects. Perfect for residential homes seeking energy independence and backup power. Equally suited for commercial and small industrial facilities looking to reduce electricity costs and carbon footprint with a scalable, reliable solar-plus-storage solution.
