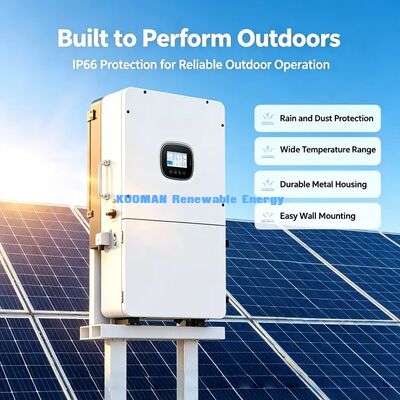

3 MPPT Three Phase Solar Inverter Max PV Voltage 600V Off Grid Solar Power Inverter

Large Image : 3 MPPT Three Phase Solar Inverter Max PV Voltage 600V Off Grid Solar Power Inverter

Product Details:

Place of Origin:	China
Brand Name:	KUOMAN
Certification:	CE UL
Model Number:	Three-Phase Hybrid Grid-Tied Inverter

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	based on specification
Packaging Details:	Standard internationa packing
Delivery Time:	20 working days
Payment Terms:	T/T
Supply Ability:	100pcs/month

Contact Now

3 MPPT Three Phase Solar Inverter Max PV Voltage 600V Off Grid Solar Power Inverter

Description

Operating Temperature:	-25°C To 60°C	Output Configuration:	Three-phase + Neutral + Ground (3L+N+PE)
Protection Rating:	IP65	Efficiency:	95% - 98%
Rated Voltage/Frequency:	120/208V, 60Hz	Maximum PV Voltage:	600V Per Tracker
Output Power:	14,000W / 16,000W / 18,000W	AC Input Range:	110V:85-138VAC;220V:170-275VAC
Peak Off-Grid Power:	28kVA To 36kVA	MPPT Efficiency:	99.9%
Power Factor:	0.8 Leading To 0.8 Lagging	Battery Voltage:	40-60V DC
Highlight:	3 MPPT solar inverter 600V , three phase off grid inverter , solar power inverter max PV

3 MPPT Three Phase Solar Inverter Max PV Voltage 600V Off Grid Solar Power Inverter

Compatible with lead-acid and lithium batteries with 40V–60V voltage range, equipped with 3 independent MPPT trackers, IP65 outdoor waterproof enclosure, and supports parallel connection of up to 9 inverters for scalable large-capacity solar energy storage systems. It works seamlessly for both on-grid self-consumption and off-grid independent power supply scenarios.

Technical Specifications & Features

Dual working mode: Grid-tied on-grid operation + off-grid standalone backup power
3 independent MPPT trackers, maximum 99.9% MPPT tracking efficiency
Wide PV input voltage 120V-500V, max PV open circuit voltage up to 600V
Dual battery ports, adaptive BMS lithium battery charging strategy
High charge/discharge current: up to 300A/330A/350A for different models
3L+N+PE three-phase grid connection, 120/208V 60Hz standard output
Power factor adjustable from 0.8 leading to 0.8 lagging, THD＜3% for clean sine wave output
Grid & generator dual AC input, 200A bypass overload current capacity
Parallel expansion support: 1-9 units parallel for larger power demand
IP65 dustproof & waterproof rating, intelligent air cooling + heat sink heat dissipation
Multiple communication ports: RS485, CAN, USB, optional WiFi/4G remote monitoring module
Complete electrical protection & full international certifications

Ideal Application Scenarios

Residential Homes with 3-Phase Supply: Power large homes, HVAC systems, and electric vehicle chargers efficiently
Commercial & Retail Stores: Reduce operating costs by powering lighting, refrigeration, and office equipment with solar energy
Small & Medium Enterprises (SMEs) / Workshops: Run machinery and production equipment reliably with clean, three-phase power
Agricultural & Farming Operations: Power irrigation systems, barns, and processing equipment
Off-Grid & Backup Power Systems: Provide critical power backup for buildings during grid outages

Frequently Asked Questions

Q1: What battery types and voltage does this inverter support?

A: It supports lead-acid batteries, lithium batteries and user-defined battery packs, battery voltage range 40V-60V, with self-adaptive BMS communication for lithium batteries.

Q2: Can multiple inverters be connected in parallel? How many at most?

A: Yes, maximum 9 units can be parallel connected to expand total power capacity for large systems.

Q3: What grid standard is this three-phase inverter suitable for?

A: Rated for 120/208V, 60Hz three-phase 3L+N+PE grid, perfectly fit the United States and Canada power grid standards.

Q4: Is it possible to monitor the inverter remotely?

A: Yes. Optional external WiFi or 4G stick module supports mobile phone APP remote data check and parameter adjustment.

Q5: What is the protection degree and installation environment?

A: IP65 waterproof and dustproof, can be directly installed outdoors. Operating temperature: -25℃ ~ 60℃, humidity 0-100% non-condensing.
