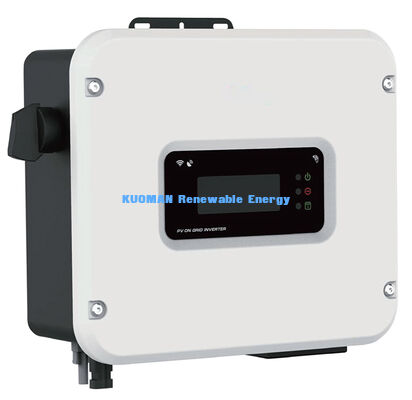

European Efficiency 97.3% On Grid Solar Inverter Grid Monitoring Function Inverter

Ranging from 1000W to 6000W nominal AC output power, this transformerless solar inverter converts DC electricity generated by solar panels into grid-compliant AC power, feeding excess power back to the public grid to cut down household electricity bills effectively. Built with IP65 waterproof & dustproof rating, it supports outdoor wall-mounted installation with stable performance under harsh outdoor environments.

Our inverter series bridges cutting-edge technology with user-friendly operation:

• Residential Rooftop Systems: Perfect for single-family homes looking to reduce electricity bills and carbon footprint.
• Small Commercial Buildings: An excellent choice for shops, offices, or small workshops with moderate energy consumption.
• New Green Home Builds: Integrate seamlessly into modern, energy-efficient building designs.
• Retrofit PV Projects: Easily upgrade or expand existing solar installations with our compatible and efficient models.

Frequently Asked Questions (FAQ)

Q1: Does this grid tie inverter work without batteries?

A: Yes, it is a pure grid-tied inverter, no battery bank required. It directly converts solar DC power to AC and connects to the public grid. It will automatically stop working when the grid loses power for safety anti-islanding protection.

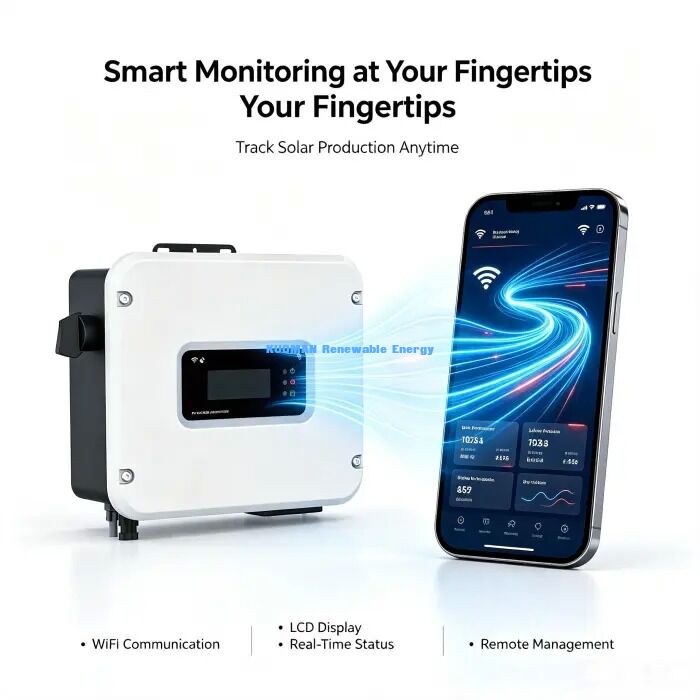

Q2: Can I monitor the inverter remotely?

A: Standard built-in WiFi module supports mobile APP real-time monitoring; RS485 communication is available as an optional upgrade for centralized monitoring.

Q3: What is the working temperature range? Can it be installed outdoors?

A: Operating temperature: -25°C to +60°C. IP65 waterproof and dustproof enclosure allows direct outdoor wall mounting under eaves or open walls.

Q4: What solar panel voltage does the MPPT support?

A: MPPT operating voltage range: 70V ~ 450V DC, max open circuit DC voltage 550V, compatible with most 60-cell/72-cell household solar modules.

Q5: How long is the product warranty?

A: Standard 5-year manufacturer warranty; 7-year or 10-year extended warranty can be purchased optionally.

Q6: Is it compatible with 50Hz and 60Hz grids?

A: Yes, it automatically detects and switches between 50Hz and 60Hz grid frequency, suitable for most countries worldwide.
