IP65 Waterproof Grid Tied Solar Inverter 97.8% High Efficiency Residential PV Inverter

Large Image : IP65 Waterproof Grid Tied Solar Inverter 97.8% High Efficiency Residential PV Inverter

Product Details:

Place of Origin:	China
Brand Name:	KUOMAN
Certification:	CE UL
Model Number:	Grid-Tie Solar Inverter

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	based on specification
Packaging Details:	Standard internationa packing
Delivery Time:	20 working days
Payment Terms:	T/T
Supply Ability:	100pcs/month

Contact Now

IP65 Waterproof Grid Tied Solar Inverter 97.8% High Efficiency Residential PV Inverter

Description

Power Rating:	3kW - 100kW	Mppt Voltage Range:	90-520V
Maximum Input Current:	10A - 50A	Peak Current Ratio:	3:1max
Frequency:	45-65HZ	Ac Input Range:	110V:85-138VAC;220V:170-275VAC
Nominal Output Power:	1kW To 6kW	Conversion Efficiency:	Up To 97.8%
MPPT Efficiency:	99.9%	Operating Voltage Range:	70-500Vdc
Operating Temperature:	-25°C To +60°C	IP Rating:	IP65
Highlight:	IP65 waterproof solar inverter , grid tied PV inverter residential , high efficiency solar inverter 97.8%

IP65 Waterproof Grid Tied Solar Inverter 97.8% High Efficiency Residential PV Inverter

Grid-Tie Solar Inverter

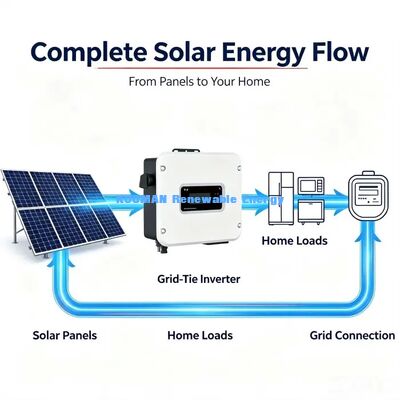

Our single-phase grid-tied solar inverter (Model Series: S1000TL / S2200TL / S3000TL / S3600TL / S4400TL / S5000TL / S6000TL) is a professional PV on-grid inverter designed exclusively for residential rooftop solar power systems. Ranging from 1000W to 6000W nominal AC output power, this transformerless solar inverter converts DC electricity generated by solar panels into grid-compliant AC power, feeding excess power back to the public grid to cut down household electricity bills effectively. Built with IP65 waterproof & dustproof rating, it supports outdoor wall-mounted installation with stable performance under harsh outdoor environments.

Product Features & Key Parameters

Our inverter series bridges cutting-edge technology with user-friendly operation:

Wide Power Range: Choose from 1kW to 6kW nominal output power to match your specific energy needs.
Superior Efficiency: Achieve maximum energy harvest with a peak conversion efficiency of up to 97.8% and outstanding European efficiency.
Advanced MPPT: A 99.9% efficient Maximum Power Point Tracker ensures optimal performance even in varying light conditions, with a wide operating voltage range (70-500Vdc).
Robust Safety Suite: Includes built-in Arc Fault Circuit Interruption (AFCI), anti-islanding, DC reverse-polarity, surge, and leakage current protection for complete peace of mind.
Smart Connectivity: Standard WiFi allows for real-time system monitoring and management via your smartphone. An optional RS485 interface is available for expanded compatibility.

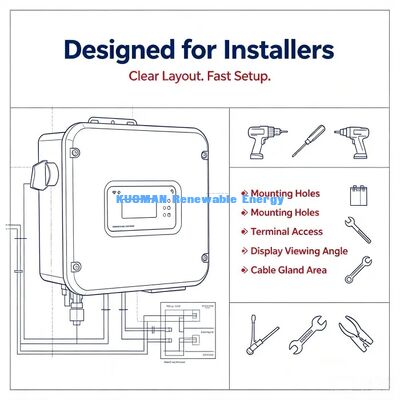

Durable Design: Built to last with an IP65 waterproof and dustproof rating, ensuring reliable operation from -25°C to +60°C. Its compact and lightweight design simplifies installation.

Ideal Application Scenarios

Residential Rooftop Systems: Perfect for single-family homes looking to reduce electricity bills and carbon footprint.
Small Commercial Buildings: An excellent choice for shops, offices, or small workshops with moderate energy consumption.
New Green Home Builds: Integrate seamlessly into modern, energy-efficient building designs.
Retrofit PV Projects: Easily upgrade or expand existing solar installations with our compatible and efficient models.
