Product Details:
|
| Max Discharging Current: | 100A | Battery Size: | 442*500*140mm |
|---|---|---|---|
| Nominal Capacity: | 100Ah | Nominal Voltage: | 51.2V |
| Nominal Energy: | 5120Wh | Max Charging Current: | 100A |
| Cell Type: | LiFePO4 Cell | Charging Cut-off Voltage: | 56.2V |
| Standard Charging Current: | 50A | Discharging Cut-off Voltage: | 45.6V |
| Peak Discharging Current: | 200A | Communication: | CAN/RS485/RS232/Bluetooth (optional) |
| Highlight: | 5.12kWh lithium battery for solar inverters,Wall mount home battery storage with Bluetooth,Hybrid solar inverter battery with RS485 |
||

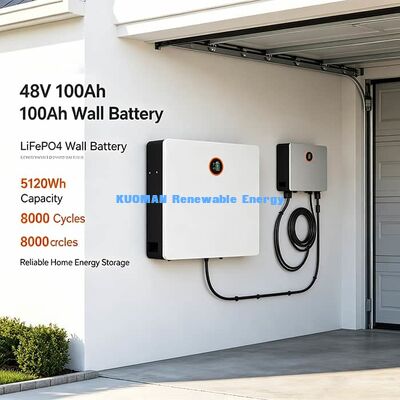

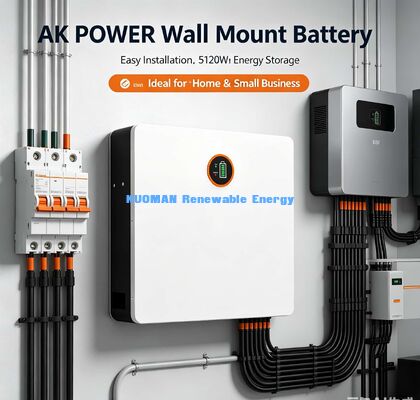

Our 51.2V 100Ah wall-mounted lithium iron phosphate battery is a slim home energy storage solution newly launched in 2024, delivering 5120Wh usable energy for residential solar off-grid, backup power and energy self-sufficiency systems. Built with top-tier Grade A LiFePO4 cells from CATL, EVE, BYD & Gotion, this slim wall power bank supports up to 8000 deep charge-discharge cycles and comes with an industry-leading 10-year full warranty, making it the most cost-effective long-life home solar battery for global homeowners, installers and solar distributors.
| Product Model | KM48V100P2 |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5120Wh |
| Cell Type | LiFePO4 Cell |
| Charging Cut-off Voltage | 56.2V |
| Max Charging Current | 100A |
| Standard Charging Current | 50A |
| Discharging Cut-off Voltage | 45.6V |
| Discharging Current | 50A |
| Max Continuous Discharging Current | 100A |
| Peak Discharging Current (3S) | 200A |
| BMS Protection | Overcharging/over-discharging, Over-voltage/Over-current, Short Circuit, etc. |
| Battery Size | 442×500×140mm |
| Communication | CAN/RS485/RS232/Bluetooth (optional) |
| Certificate | UN38.3/MSDS/Sea/Air Transport Report/CE/IEC |
