100KWh Commercial ESS Battery | 50kW LiFePO4 Energy Storage Cabinet For Factory Solar Peak Shaving & Backup Power

100KWh Commercial ESS Battery | 50kW LiFePO4 Energy Storage Cabinet For Factory Solar Peak Shaving & Backup Power
100KWh Commercial ESS Battery | 50kW LiFePO4 Energy Storage Cabinet For Factory Solar Peak Shaving & Backup Power

Large Image :  100KWh Commercial ESS Battery | 50kW LiFePO4 Energy Storage Cabinet For Factory Solar Peak Shaving & Backup Power

Product Details:
Place of Origin: China
Brand Name: KM
Certification: CE, FCC, UKCA, CB
Model Number: 100KWh
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1-100/pcs
Packaging Details: standard international carton packing
Delivery Time: general two weeks, more quantity based on exact quantity
Supply Ability: 10000pcs/month
Contact Now

100KWh Commercial ESS Battery | 50kW LiFePO4 Energy Storage Cabinet For Factory Solar Peak Shaving & Backup Power

Description
Nominal Voltage: 384V Nominal Capacity: 280Ah
Nominal Energy: 107.52KWh Operating Temperature: -25℃ ~ 60℃
Discharge Rate: 0.5C Net Weight: 1750 Kg
Dimension: 1200×1355×2150mm
Highlight:

100KWh commercial ESS battery

,

50kW LiFePO4 energy storage cabinet

,

factory solar peak shaving battery

100KWh Commercial ESS Battery | 50kW LiFePO4 Energy Storage Cabinet For Factory Solar Peak Shaving & Backup Power

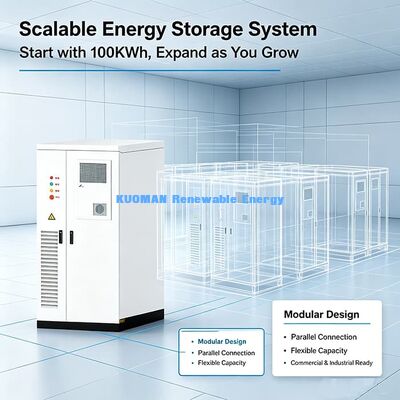

Our 100KWh all-in-one ESS energy storage system adopts safe LiFePO4 lithium iron phosphate battery cells, integrated BMS & EMS management system. This cabinet-type commercial energy storage battery delivers 107.52kWh usable energy with 50kW three-phase AC output. Designed for factories, warehouses, commercial buildings, solar energy matching, off-grid power supply and microgrid construction. The outdoor/indoor robust cabinet supports wide temperature operation, peak shaving, load shifting, backup power and renewable energy storage.

Commercial Energy Storage System Specifications
Model 100 kWh ESS Battery
Nominal Voltage 384V
Nominal Capacity 280Ah
Nominal Energy 107.52 kWh
Discharge Rate 0.5C
Dimensions 1200 × 1355 × 2150 mm
Net Weight 1750 kg
PV Input 50 kWp (kilowatt peak)
Voltage range: 200~600V
AC Output 50 kW, 72 A, 154~276V, three-phase
Operating Temperature -25°C to 60°C
Applications
Solar Energy Storage
Store excess solar energy for use during nighttime or cloudy days.
Industrial Facilities
Optimize energy usage and provide backup power for critical operations.
Commercial Buildings
Reduce energy costs through peak shaving and load shifting.
Off-Grid Locations
Provide reliable power in remote areas without grid access.
Microgrids
Support renewable energy integration and grid stability.
100KWh Commercial ESS Battery | 50kW LiFePO4 Energy Storage Cabinet For Factory Solar Peak Shaving & Backup Power 0

FAQ

Q1: What is the actual usable energy of this 100KWh ESS system?

A1: The nominal energy reaches 107.52KWh. It adopts 0.5C continuous charge & discharge design, meeting daily commercial energy storage demand.

Q2: Can this energy storage cabinet connect to solar panels directly?

A2: Yes. Built-in PV access port supports 50KWp solar panel input with 200~600V DC voltage range, no extra external inverter required.

Q3: Is this ESS suitable for outdoor installation?

A3: The cabinet supports indoor installation. If deployed outdoors, a sunshade and rainproof shelter is recommended to extend service life.

Q4: Can multiple 100KWh energy storage cabinets be connected in parallel?

A4: Yes. The system supports parallel expansion. We can customize solutions according to your total energy storage capacity requirements.

Tag:

ESS Battery System,

ESS Battery Storage,

Energy Storage System Battery
