Product Details:
|
| Panel Dimensions: | 115*98.5CM | Max Power: | 100W |
|---|---|---|---|
| Peak Voltage: | 18V | Current At Pmax: | 8.34A(IMP) |
| Open Circuit Voltage: | 21V (±3%) | Net Weight: | 2.8 Kg |
| Highlight: | 100W Flexible Solar Panel,ETFE Coated Solar Panel,Bendable Solar Panel |
||

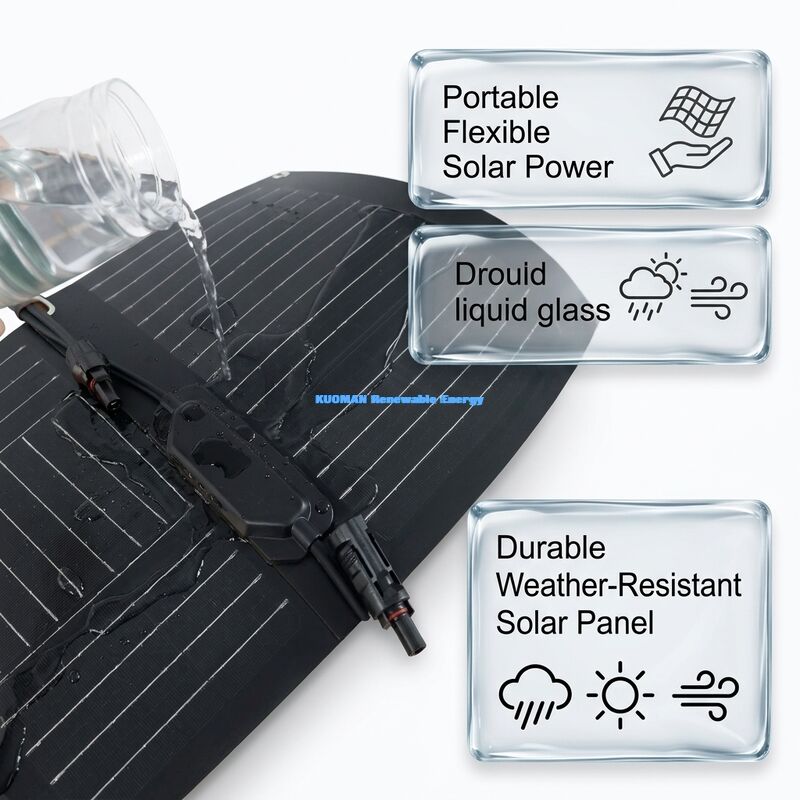

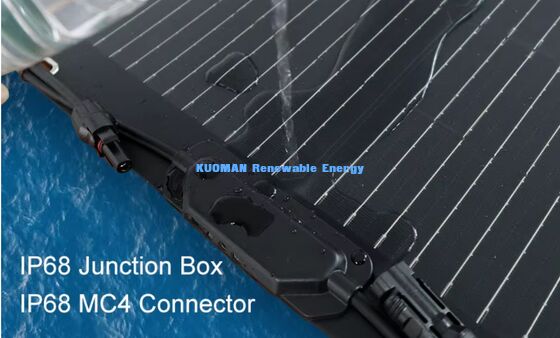

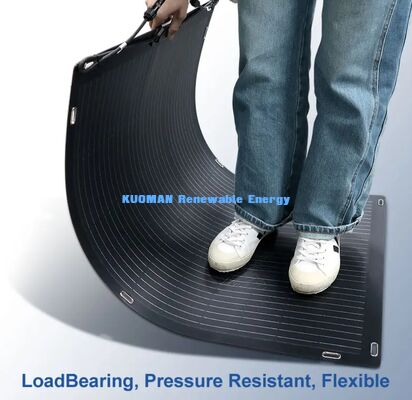

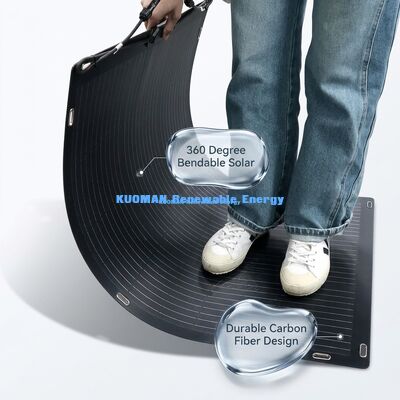

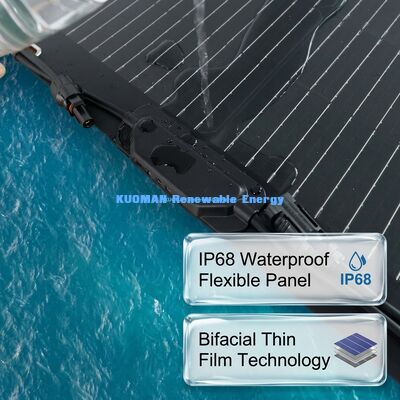

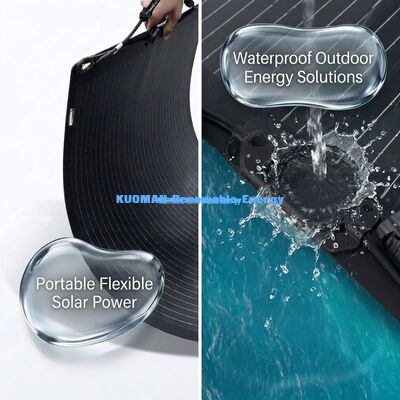

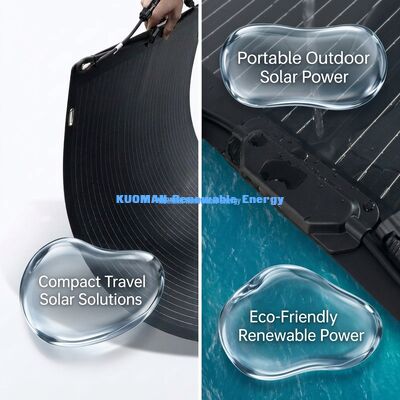

Redefining off-grid mobility, our ETFE Flexible Solar Panel Series delivers high-efficiency power (100W-500W) in an ultra-slim, bendable form factor. Engineered for life on the move, these panels are the preferred energy solution for RV travelers, marine vessels, outdoor gear manufacturers, and furniture-integrated solar applications across the Americas and Africa. With industry-leading 24.2% cell efficiency and a durable 7/9-layer composite construction, they convert sunlight into usable power even in tight spaces and curved surfaces where rigid panels cannot go.
| Material Construction | |
|---|---|
|
|
| Color Options | |
|
|
| Electrical Characteristics (STC) | |
| Open Circuit Voltage (Voc) | 21V (±3%) |
| Maximum Power Voltage (Vmp) | 17.1V (±3%) |
| Short Circuit Current (Isc) | 7.33A (±5%) |
| Maximum Power Current (Imp) | 6.7A (±5%) |
| Mechanical Specifications | |
| Expanded Dimensions | 111 × 61 × 0.3 cm (43.7 × 24 × 0.12 in) |
| Folded Dimensions | 61 × 59.7 × 3.1 cm (24 × 23.5 × 1.22 in) |
| Net Weight | 2.8 kg (6.17 lbs) |
