Product Details:
|
| Panel Dimensions: | 115*98.5CM | Max. Power: | 200W |
|---|---|---|---|
| Peak Voltage: | 18V | Current At Pmax: | 8.34A(IMP) |
| Maximum Power Voltage: | 18V | Output Tolerance: | ± 3% |
| Highlight: | 30W Flexible Solar Panel,ETFE Flexible Solar Panel,Flexible Thin Film Solar Panel |
||

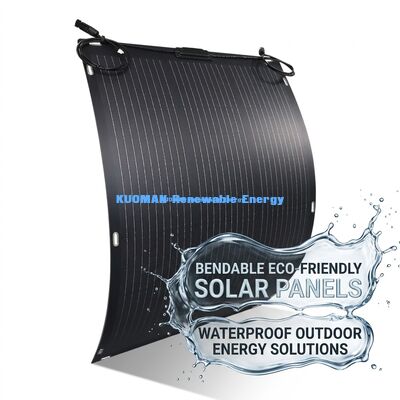

Redefining off-grid mobility, our ETFE Flexible Solar Panel Series delivers high-efficiency power (100W-500W) in an ultra-slim, bendable form factor. Engineered for life on the move, these panels are the preferred energy solution for RV travelers, marine vessels, outdoor gear manufacturers, and furniture-integrated solar applications across the Americas and Africa.
With industry-leading 24.2% cell efficiency and a durable 7/9-layer composite construction, they convert sunlight into usable power even in tight spaces and curved surfaces where rigid panels cannot go.
| Parameter | Value |
|---|---|
| Model | KM-RX30W |
| Panel Type | Semi-Flexible PERC Monocrystalline |
| Cell Technology | Shingled (Imbrication), No Busbars |
| Peak Power (Pmax) | 31.5W (±3%) |
| Module Efficiency | 23.0% |
| Voltage at Pmax (Vmp) | 18.0V |
| Current at Pmax (Imp) | 1.47A |
| Open-Circuit Voltage (Voc) | 21.38V |
| Short-Circuit Current (Isc) | 1.62A |
| Dimensions (L×W×H) | 502 × 345 × 2.0 mm |
| Weight | 0.65 kg |
| Surface Material | Matte ETFE (Anti-Reflective) |
| Backsheet Options | White / Black Carbon Fiber Composite |
| Junction Box | IP65, Potting Encapsulated |
| Cable & Connector | 18AWG, MC4 or DC5521 Selectable |
| Operating Temperature | -40°C to +85°C |
| Max System Voltage | 60V DC |
| Configuration | Details |
|---|---|
| Individual Packaging | Protective foam sleeve + poly bag |
| Master Carton Qty | 20 panels |
| Master Carton Dimensions | 63 × 63 × 58 cm |
| Master Carton Weight | 16.0 kg |
| MOQ (Stock Color) | 100 units |
| MOQ (Private Label) | 500 units |
