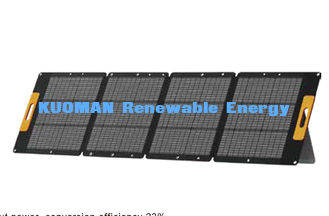

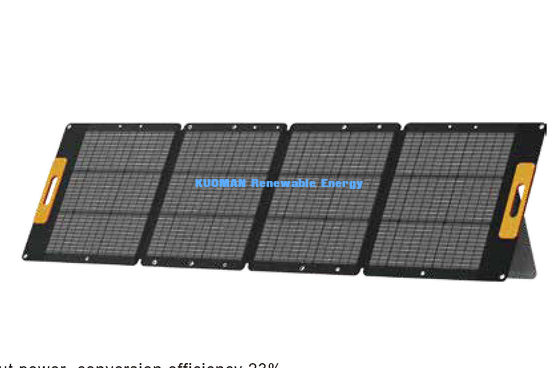

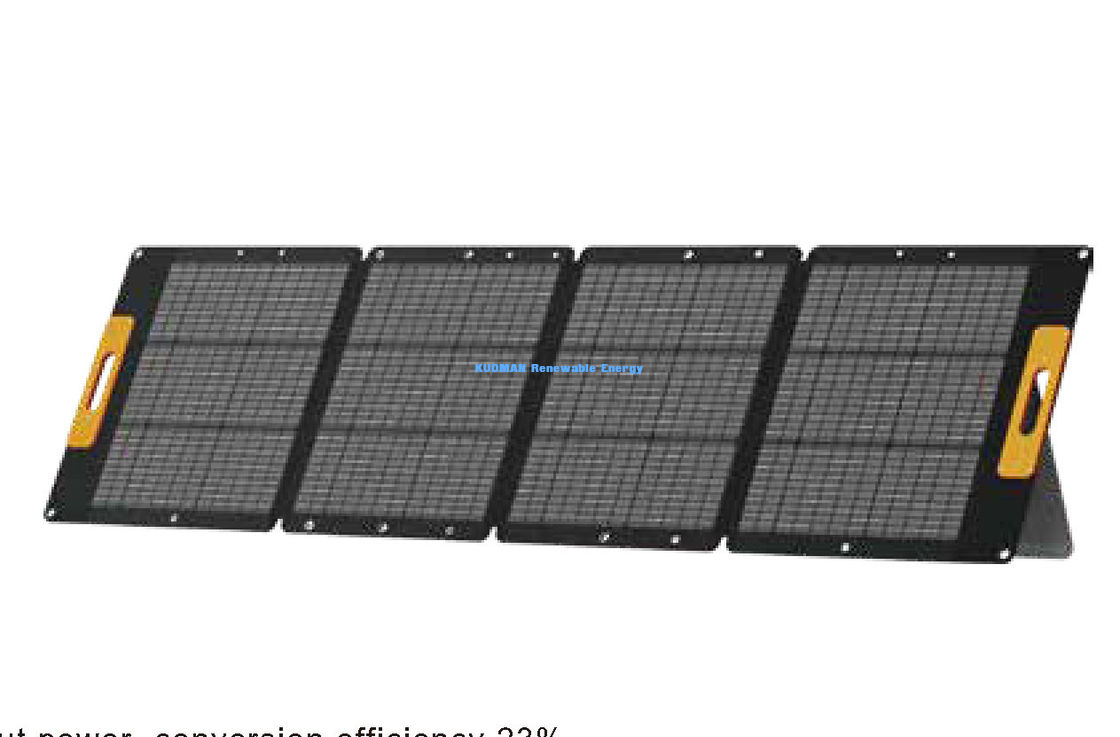

200W Emergency Energy Supply – Solar When the Grid Fail Flexible Solar Panel

200W  Emergency Energy Supply – Solar When the Grid Fail Flexible Solar Panel
200W  Emergency Energy Supply – Solar When the Grid Fail Flexible Solar Panel 200W  Emergency Energy Supply – Solar When the Grid Fail Flexible Solar Panel

Large Image :  200W Emergency Energy Supply – Solar When the Grid Fail Flexible Solar Panel

Product Details:
Place of Origin: China
Brand Name: KUOMAN
Model Number: KMRX200W
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Supply Ability: 1000pcs/month

200W Emergency Energy Supply – Solar When the Grid Fail Flexible Solar Panel

Description
Panel Dimensions: 115*98.5CM Brand Name: KUOMAN
Work Time (h): 24 Hours Material: Poly Silicon
Color: Black Max. Power: 200W
Peak Voltage: 37V Installation: Easy Peel-and-stick Adhesive Backing
Output Tolerance: ± 3% Logo Print: Customization
Max System Voltage: 1000/600 V Maximum Power: 100W
Accessories: 10A Charge Controller, 10ft Cable With Alligator Clips Current At Pmax: 8.34A(IMP)
Connector: Compatible Connector Maximum Power Voltage: 18V

200W Emergency Energy Supply – Solar When the Grid Fail Flexible Solar Panel

200W  Emergency Energy Supply – Solar When the Grid Fail Flexible Solar Panel 0

200W  Emergency Energy Supply – Solar When the Grid Fail Flexible Solar Panel 1



Advantage of 200W flexible solar panel :
1)Ultra thin and light;
2)IP68 waterproof level;
3)With long time life span;
4)Full power output;
5)Multifuntion port for more different devices,like 24V battery,power station,power generator,power bank;
6)Can be bent to 360°;
7)Don't worry the solar cell with damage to lead to short current and fire risk--safe and stable;
8)With transparent material with bifacial function ;
9)with CE,ROHS,FCC certification;
10)With short leading time for 500-1000PCS for only 20 days.

Power

Open-circuit

(Voc/V)

Short-circuit
(Isc/A)
Design Voltage
(Vmp/V)

Max. Power

Current (Imp/A)

Solar Panel

Efficiency(%)

Product

Architecture

Size (mm)
100W 21.9V 5.75A 19.2V 5.5A 24.20% 7/9 layer 918*580*2.5
120W 22.6V 6.93A 19.2V 6.63A 24.20% 7/9 layer 1084*580*2.5
150W 21.21V 9.24A 18V 8.84A 24.20% 7/9 layer 1020*764*2.5
180W 21.21V 11.1A 18V 10.61A 24.20% 7/9 layer 1203*764*2.5
200W 23.1V 11.09A 19.8V 10.6A 24.20% 7/9 layer 1316*764*2.5
250W 22.5V 13.89A 19.2V 13.28A 24.20% 7/9 layer 1279*948*2.5
300W 44.9V 8.64A 38.5V 8.26A 24.20% 7/9 layer 1618*948*2.5
350W 44.54V 9.87A 37.9V 9.44A 24.20% 7/9 layer 1799*948*2.5
400W 44.54V 11.62A 37.8V 11.11A 24.20% 7/9 layer 1771*1132*2.5
450W 42.42V 13.84A 36.12V 13.23A 24.20% 7/9 layer 1977*1132*2.5
500W 42.42V 15.26A 36.12V 14.59A 24.20% 7/9 layer 2164*1132*2.5



Product Feature:
1.Fully waterproof conjunction box with silicon glue,specially with diode built in to
avoid conversed connection;
2. Eyelet with Larger size ,easy to fix ;
3. 10PCS of eyelets left for multiple location to fix;
4.High efficiency solar cell up to 23% ;
5.Universal and robust MC4 connector .



Our version:

Organizes specs into benefit-focused sections

Highlights the professional applications

Adds convincing comparisons ("lighter than 2 water bottles")

ncludes technical differentiators (current distribution, temperature performance)

Uses actionable language for commercial buyers

Would you like me to emphasize any particular feature for your target market?



Flexible Solar Panel Specification:

Brand Name KUOMAN SOLAR
Model Number KM FL2000W
Material FFC compound material+EVA+Mono solar cell+EVA+Carbon Fiber
Color White/Black
Cell size 119.5*103*8cm
Panel Dimensions 119.5*103*8CM
Panel Efficiency >=23%
OEM/ODM Availble
Warranty 1year



200W  Emergency Energy Supply – Solar When the Grid Fail Flexible Solar Panel 2

200W  Emergency Energy Supply – Solar When the Grid Fail Flexible Solar Panel 3

200W  Emergency Energy Supply – Solar When the Grid Fail Flexible Solar Panel 4
