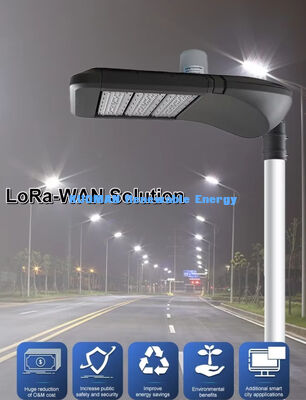

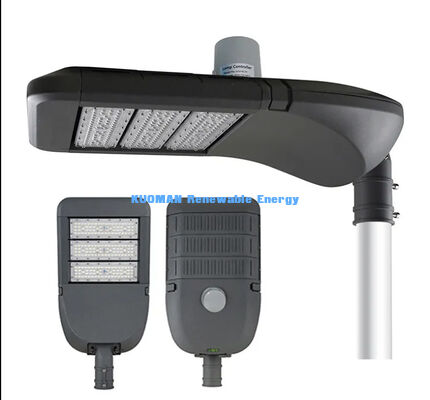

Garden Smart LED Street Lighting IP66 Waterproof Road Solar Light
Smart LED Street Lighting LORA-Wan Feature:
This LoRa-based wireless solution consists of four layers: devices, gateways, network server, and application cloud. It prioritizes long battery life and long range (up to 15km) via a high link budget and minimal active/sleep currents.
Network capacity is robust, with gateways using 8-channel reception to serve large fleets of adaptive-rate devices (0.3-37.5 kbps).
It operates on a star network in license-exempt frequency bands. Administrative features span real-time GIS maps, consumption reports, alarm management, and user controls.
Compatible with standard and custom protocols, it provides reliable coverage from dense urban to open rural areas. Enhanced modules allow for GPS, tilt detection, and light management, with control policies for holidays, location, or multi-scenario automation.
Function of our Lighting Smart System:
Core functionality includes granular light dimming and detailed power consumption statistics for energy management.
Offers flexible control via Manual / Automatic modes, GPS-based triggers, and scheduled Time/Light control.
Enables remote data reading and automatic failure reporting for predictive maintenance.
Supports device organization by groups and location intelligence via GIS-based mapping.
Features a distributed deployment architecture with extendable RTU space for scalability.
Provides a unified view to keep the entire street lighting system in view.
Designed for easy integration with third-party systems and multiple communication protocols.
Offers a convenient management entry point to a cloud-based system with an elegant design.
The KUOMAN smart lighting system platform can connect and centrally manage over 1 million+ devices.
Lamp Controller Specification:
MODEL NO.: 816LORA
INPUT: 96-264V/50-60Hz
-
Standard NEMA 7-PIN interface.
-
Remotely turn ON/OFF, built-in 16A relay.
-
Photocell auto control.
-
It supports dimming interface: DALI and 0-10V.
-
It supports remote reading of electricity data: current, voltage, power, power factor and consumed energy.
-
It supports recording total energy consumed and resetting.
-
Optional sensor: GPS, tilt detection.
-
Lamp failure detection: LED lamp.
-
Automatic report failure notification to server.
-
Lighting protection.
Gateway Feature:
A communication bridge between server (by 2G/4G/Ethernet) and single controller (by LoRa), update by OTA, 12V DC input, IP67
Model-SC851
LoRaWan products based on Semtech SX1301.
10 channels: 8Multi-SF + 1Standard LoRa + 1*FSK.
It supports GPRS/4G and Ethernet interface.
Long distance: up to 5KM.
It controls up to 3000 nodes.
Speed: 125K-500K for option.
IP67 waterproof performance.
Optional frequency band: 470M, 868M, 915M.
With GPS positioning function, gateway positioning function.
With antenna lightning protector to protect the equipment
and prevent lightning strikes.
FAQ: Solar & Smart Street Lights
Q1: What are smart solar street lights?
A1: They are solar-powered outdoor lights with intelligent controls. They use solar panels for energy and integrate sensors or communication modules (like LoRa) for remote management, automatic dimming, and data monitoring.
Q2: What are the main benefits of using your smart solar street lights?
A2: Our lights offer significant cost savings by using free solar energy and reducing maintenance through remote fault detection. They also enhance safety and energy efficiency with automatic dimming based on time or ambient light.
Q3: How do the smart controls and remote management work?
A3: Each light has a controller that connects to a central cloud platform via a wireless network (e.g., LoRaWAN). You can remotely turn lights on/off, dim them, set schedules, and receive instant failure alerts from a computer or smartphone.
Q4: Can your smart solar lights work in cloudy or rainy seasons?
A4: Yes. They are designed with high-capacity batteries and energy-efficient LEDs to store enough power for several consecutive cloudy days, ensuring reliable operation.
Q5: What smart features are included?
A5: Key features include remote ON/OFF & dimming, automatic time/light sensor control, GPS-based grouping, individual energy consumption reporting, and instant failure alarms sent directly to the management platform.
Q6: How much energy can your smart solar street lights save?
A6: By combining solar power with motion-sensor dimming or scheduled dimming profiles, they can save up to 70-80% more energy compared to traditional grid-powered lights that run at full brightness all night.
