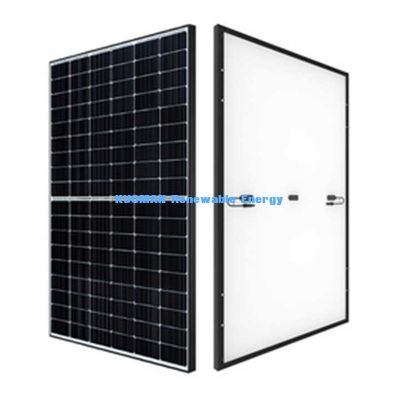

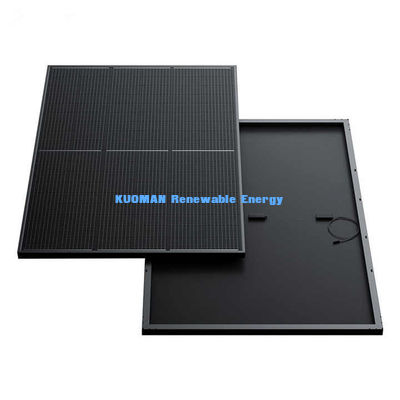

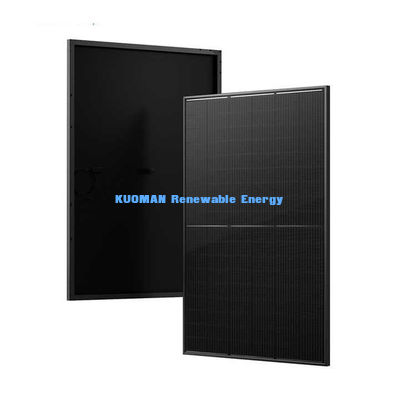

Solar Panels Black Solar Panel N Type 415 Watts

Solar Panels Black Solar Panel N Type 415 Watts
Solar Panels Black Solar Panel N Type 415 Watts Solar Panels Black Solar Panel N Type 415 Watts Solar Panels Black Solar Panel N Type 415 Watts Solar Panels Black Solar Panel N Type 415 Watts

Large Image :  Solar Panels Black Solar Panel N Type 415 Watts

Product Details:
Place of Origin: China
Brand Name: Kuoman
Model Number: KM500-600W Solar Panel
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: L/C, L/C
Contact Now

Solar Panels Black Solar Panel N Type 415 Watts

Description
Size: 210mmx210mm Panel Efficiency: 22%
Panel Dimensions: 1722x1134x30mm

Solar Panels Black Solar Panel N Type 415 Watts

Solar Panels Black Solar Panel N Type 415 Watts 0

Solar Panels Black Solar Panel N Type 415 Watts 1



Structural Parameters
Cells
108pcs 182x93mm Monocrystalline solar cells
Module Dimension
1722x1134x30mm(LxWxH)
Module Weight
20.5kg
frame
Anodized aluminum profile
Junction Box
Rated current:25A,IP68,TUV
Cable
Length Negative 400mm/Positive 300mm
Connector
Compatible with MC4
STC
Maximum Power (Pmax)
410W
415W
420W
425W
430W
Maximum Power Voltage (Vmp)
31.13V
31.32V
31.51V
31.70V
31.88V
Maximum Power Current (Imp)
13.17A
13.25A
13.33A
13.41A
13.49A
Open-circuit Voltage (Voc)
37.73V
37.92V
38.11V
38.30V
38.49V
Short-circuit Current (Isc)
13.91A
13.99A
13.99A
14.15A
14.23A
Module Efficiency STC (%)
21.00
21.25
21.51
21.76
22.02
STC
Irradiance 1000W/m2,cell temperature 25℃,AM1.5G
Operating Conditions
Maxi System Voltage
1000V/1500V DC
Temperature range
-40°C~+85°C
Series Fuse Rating
25A
NOTC
45±2℃
Temperature Coefficient of Isc(α-Isc)
+0.033%/℃
Temperature Coefficient of Voc(β-Voc)
-0.29%/℃
Temperature Coefficient of Pmax(Y-Pmp)
-0.39%/℃



Solar Panels Black Solar Panel N Type 415 Watts 2

Solar Panels Black Solar Panel N Type 415 Watts 3
