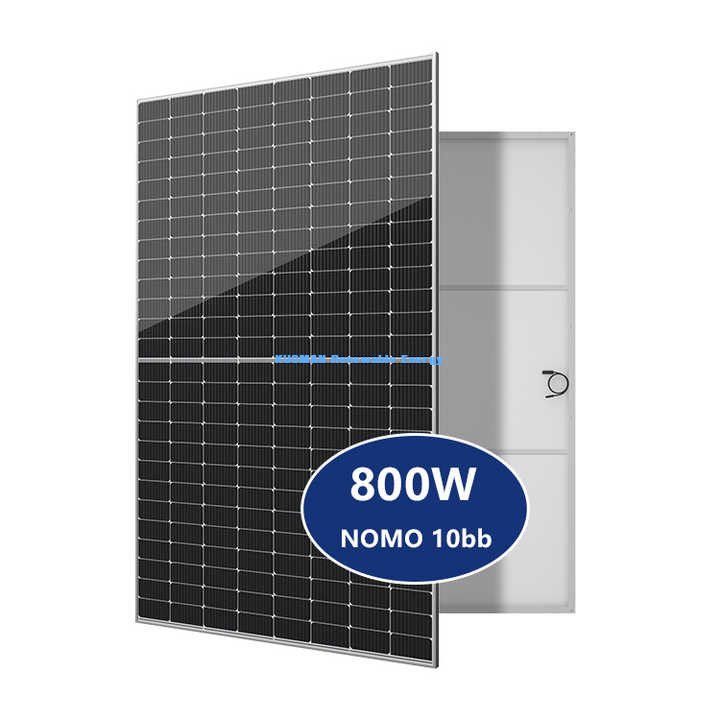

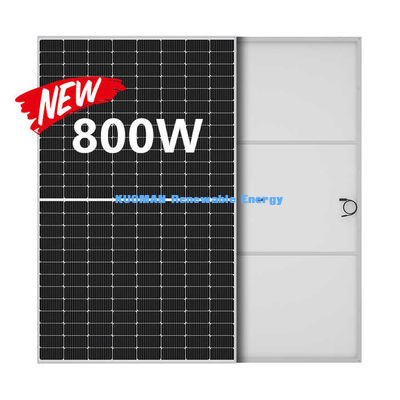

Customized 800W Solar Panel 48 Volts Solar Panels

I'm Online Chat Now

Customized 800W Solar Panel 48 Volts Solar Panels

Customized 800W Solar Panel 48 Volts Solar Panels
Customized 800W Solar Panel 48 Volts Solar Panels Customized 800W Solar Panel 48 Volts Solar Panels Customized 800W Solar Panel 48 Volts Solar Panels

Large Image :  Customized 800W Solar Panel 48 Volts Solar Panels

Product Details:
Place of Origin: China
Brand Name: Kuoman
Model Number: KM800W Solar Panel
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: L/C, L/C

Customized 800W Solar Panel 48 Volts Solar Panels

Description
Size: 210mmx105mm Panel Efficiency: 22%
Panel Dimensions: 2650*1305*35mm Lead Time (days): About 10 Working Days

Customized 800W Solar Panel 48 Volts Solar Panels



800W Solar Panel Specification:

Half-cut cell
Optimized power output underinter-row shading conditions.Reduced interconnection losses.



Highly reliable
Certified in TUV salt spray, ammoniacorrosion, 2400Pa wind load and



High efficiency
10Bus-Bar technology decreasesthe distance between bus barsand finger grid line which is bene-



Low hot-spot risk

The next-generation cell technologycan support improved temperature



Low degradation

1% first year degradation,0.4% linear degradation.



High yield

Effectively reducing BOS coststo achieve lower LCOE and



Structural Parameters
Cells
208pcs 182x91mm Monocrystalline solar cells
Module Dimension
2472x1134x35mm(LxWxH)
Module Weight
41kg
frame
Anodized aluminum profile
Junction Box
Rated current:30A, IP68, TUV
Cable
Length Negative 400mm/Positive 300mm
Connector
Compatible with MC4

Customized 800W Solar Panel 48 Volts Solar Panels 0

STC
Rated Maximum Power(Pmax)(W)
790
795
800
805
Open-circuit Voltag(Voc)(V)
67.23
67.51
67.68
67.89
Maximum Power Voltage(Vmp)(V)
16.65
16.72
16.78
16.81
Short-circuit Current(lsc)(A)
60.32
60.54
60.7
60.98
Maximum Power Current(lmp)A)
13.1
13.14
13.18
13.21
Module Efficiency(%)
21.07
21.2
21.33
21.47
STC
Irradiance 1000W/m2, cell temperature 25°C AM1.5G
Operating Conditions
Maxi System Voltage
1000V/1500V DC
Temperature range
-40°C~+85°C
Series Fuse Rating
30A
NOTC
45±2℃
Temperature Coefficient of Isc(α-Isc)
+0.04%/℃
Temperature Coefficient of Voc(β-Voc)
-0.24%/℃
Temperature Coefficient of Pmax(Y-Pmp)
-0.26%/℃

Customized 800W Solar Panel 48 Volts Solar Panels 1Customized 800W Solar Panel 48 Volts Solar Panels 2


KUOMAN Case:

Customized 800W Solar Panel 48 Volts Solar Panels 3

Customized 800W Solar Panel 48 Volts Solar Panels 4



FQA:

1.Whats your MOQ ?

our min quantity is 1 pieces.



2.Whats your payment ways ?

we could accept T/T, L/C.



3.Whats your delivery time ?

Generally it will take about 20 days for production on receipt of advance
payment.
