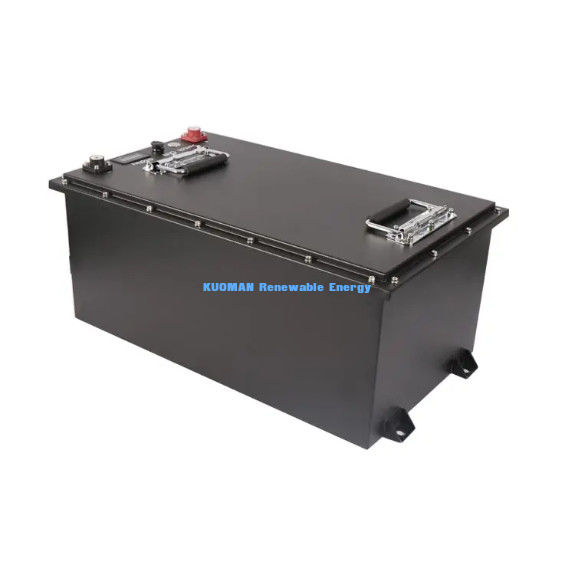

KM 72V -100Ah Customized Golf Cart LiFePO4 Battery 8000 Cycles

I'm Online Chat Now

KM 72V -100Ah Customized Golf Cart LiFePO4 Battery 8000 Cycles

KM 72V -100Ah Customized  Golf Cart LiFePO4 Battery 8000 Cycles
KM 72V -100Ah Customized  Golf Cart LiFePO4 Battery 8000 Cycles KM 72V -100Ah Customized  Golf Cart LiFePO4 Battery 8000 Cycles

Large Image :  KM 72V -100Ah Customized Golf Cart LiFePO4 Battery 8000 Cycles

Product Details:
Place of Origin: China
Brand Name: KOUMAN
Model Number: 72V Golf Battery
Payment & Shipping Terms:
Minimum Order Quantity: 1

KM 72V -100Ah Customized Golf Cart LiFePO4 Battery 8000 Cycles

Description
Nominal Voltage:: 72V Nominal Capacity:: 100Ah
Dimension:: 740*320*259mm Application:: Golf Carts
Nominal Energy:: 7360Wh

KM 72V -100Ah Customized Golf Cart LiFePO4 Battery 8000 Cycles



KM Battery Specification:

Batteries are built with top level intelligent BMS which protects it from short-circult, over charging and discharging, over current and other dangerous situations; you have no worry about its safety and working life; 1

2V lithium batteries are built with high energy density LiFePO4 cells, of prismatic which not only saves the energy space but also weight, at least 1/3 lighter than traditional lead acid batteries; KM Energy provides the longest 10 years warranty in order to support customers in overall services.



KM 72V -100Ah Customized  Golf Cart LiFePO4 Battery 8000 Cycles 0

Data Specification
Product Model KM-72V100G
Nominal Voltage 73.6V
Nominal Capacity 100Ah
Nominal Energy 7360Wh
Cell Type LiFePO4 Cell
Charging Cut-off Voltage 84V
Standard Charging Current 20A
Max Charging Current 100A
Charging Temperature 0℃~55℃
Discharging Cut-off Voltage 57.4V
Discharging Current 100A
Max Continous Discharging Current 250A
Peak Discharging Current(3S) 400A
Discharging Temperature -20℃~60℃
BMS Protection Overcharging/over-discharging, Over-voltage/Over-current, Short Circuit/etc
Case Material metal/custom material
Terminal fast plug-in
Battery Size 740*320*259mm
Net Weight 64kg
Communication CAN/RS485/RS232/Bluetooth(optional)
Certificate UN38.3/MSDS/Sea/Air Transport Report/CE/IEC
Shipping Method by Sea/Air/Railway
Delivery Time Qty within 100pcs: 5-12days
Note Still more models of 50Ah, 150Ah,200Ah
