KM 48V -50-150Ah Customized Golf Cart LiFePO4 Battery 8000 Cycles

I'm Online Chat Now

KM 48V -50-150Ah Customized Golf Cart LiFePO4 Battery 8000 Cycles

KM 48V -50-150Ah Customized  Golf Cart LiFePO4 Battery 8000 Cycles
KM 48V -50-150Ah Customized  Golf Cart LiFePO4 Battery 8000 Cycles KM 48V -50-150Ah Customized  Golf Cart LiFePO4 Battery 8000 Cycles KM 48V -50-150Ah Customized  Golf Cart LiFePO4 Battery 8000 Cycles KM 48V -50-150Ah Customized  Golf Cart LiFePO4 Battery 8000 Cycles

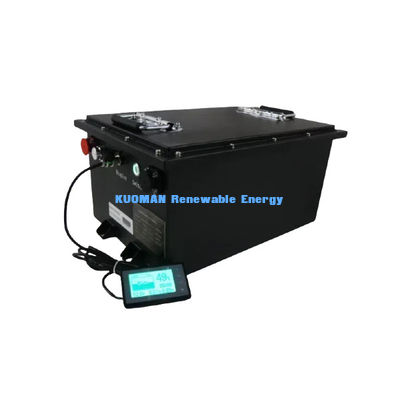

Large Image :  KM 48V -50-150Ah Customized Golf Cart LiFePO4 Battery 8000 Cycles

Product Details:
Place of Origin: China
Brand Name: KOUMAN
Model Number: 48V Golf Battery
Payment & Shipping Terms:
Minimum Order Quantity: 1

KM 48V -50-150Ah Customized Golf Cart LiFePO4 Battery 8000 Cycles

Description
Nominal Voltage:: 38.4V Nominal Capacity:: 50Ah-150Ah
Dimension:: 385*338*245mm Application:: Golf Carts
Nominal Energy:: 2560Wh- 7680Wh

KM 48V -50-150Ah Customized Golf Cart LiFePO4 Battery 8000 Cycles



KM Battery Specification:

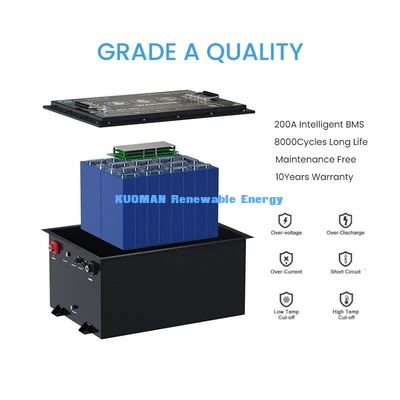

Batteries are built with top level intelligent BMS which protects it from short-circult, over charging and discharging, over current and other dangerous situations; you have no worry about its safety and working life; 1

2V lithium batteries are built with high energy density LiFePO4 cells, of prismatic which not only saves the energy space but also weight, at least 1/3 lighter than traditional lead acid batteries; KM Energy provides the longest 10 years warranty in order to support customers in overall services.



KM 48V -50-150Ah Customized  Golf Cart LiFePO4 Battery 8000 Cycles 0

Data Specification
Product Model KM-48V50G
Nominal Voltage 58.4V
Nominal Capacity 50Ah
Nominal Energy 2560Wh
Cell Type LiFePO4 Cell
Charging Cut-off Voltage 58.4V
Standard Charging Current 10A
Max Charging Current 50A
Charging Temperature 0℃~55℃
Discharging Cut-off Voltage 40V
Discharging Current 50A
Max Continous Discharging Current 150A
Peak Discharging Current(3S) 200A
Discharging Temperature -20℃~60℃
BMS Protection Overcharging/over-discharging, Over-voltage/Over-current, Short Circuit/etc
Case Material metal/custom material
Terminal fast plug-in
Battery Size 472*334*243mm
Net Weight 35kg
Communication CAN/RS485/RS232/Bluetooth(optional)
Certificate UN38.3/MSDS/Sea/Air Transport Report/CE/IEC
Shipping Method by Sea/Air/Railway
Delivery Time Qty within 100pcs: 5-12days
Note Still more models of 10Ah, 150Ah,200Ah
