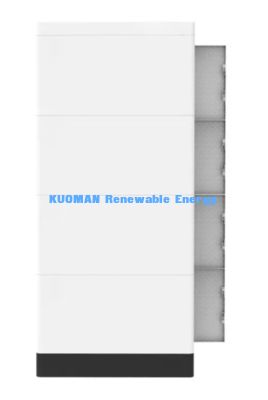

KM NEW POWER 51.2V 400Ah Stackable LiFePO4 Battery

I'm Online Chat Now

KM NEW POWER 51.2V 400Ah Stackable LiFePO4 Battery

KM NEW POWER 51.2V 400Ah Stackable LiFePO4 Battery
KM NEW POWER 51.2V 400Ah Stackable LiFePO4 Battery KM NEW POWER 51.2V 400Ah Stackable LiFePO4 Battery KM NEW POWER 51.2V 400Ah Stackable LiFePO4 Battery

Large Image :  KM NEW POWER 51.2V 400Ah Stackable LiFePO4 Battery

Product Details:
Place of Origin: China
Brand Name: KM
Model Number: KM 51.2V 400Ah home battery
Payment & Shipping Terms:
Minimum Order Quantity: 1
Supply Ability: 100pcs/month

KM NEW POWER 51.2V 400Ah Stackable LiFePO4 Battery

Description
Nominal Voltage:: 51.2V Nominal Capacity:: 200Ah~600Ah
Nominal Energy:: 10.24KWh~30.72KWh Dimension:: 600*210*300mm(single Module)
Efficiency: 95% - 98% Inverter Compatibility: Compatible With Most Inverters
Dimension: 640*375*210mm(single Module) Inverter Type: Single-phase Or Three-phase
Nominal Voltage: 51.2V Certifications: UL, CE, TUV
Compatibility: Works With Solar Panels And Grid Type: Lithium-ion
Operating Temperature: -4°F To 113°F Remote Access: Can Be Controlled Remotely Through Mobile App Or Web Portal
Inverter: Built-in Or External Size: 500*258*683/898/1113/1328/1543/1758mm
Battery Chemistry: Lithium-ion Monitoring: Real-time Monitoring Available

KM New Power Engery stackable LiFePO4 Battery is very popular choice for residentialenergy storage, which is designed with EVE brand new prismatic LiFePO4 battery cell3.2V 100Ah and 100A intelligent BMS.

It provides 10kwh to 30kwh power for home energy storage demand. You can charge itby solar panels, diesel generators; This 48V lithium battery adopts LiFePO4 technology,which has the highest safety with CE, RoHS, UL certificates and the longest life morethan 8000 cycles; and its management system provides comprehensive protection aswell as real-time monitoring.
KM NEW POWER 51.2V 400Ah Stackable LiFePO4 Battery 0
Home Battery System Feature:
1.Grade A QualityKM Energy adopt 100% grade a qualified lifepo4 cells, of EVE, CATL, BYD, or Gotionbrands; with each cells of original QR Code and 100% capacity; which assures thebattery cycling life and operation performance;

2.100% BMS ProtectionBatteries are built with top level intelligent BMS which protects it from short-circult, overcharging and discharging, over current and other dangerous situations; you have noworry about its safety and working life;
3.Super ThinThis 10KWh wall mount battery is 2024 new launch, of super thin design, the thickness isonly 14cm, which saves much space for installing and looks nice for home application;

BMS Features
• Over charging protection• Over discharge protectionOver current protectionTemperature protectionShort circuit protectionReal time monitoring of each cellAuto balance between battery cells

Product ModelKM48V300P2
Nominal Voltage51.2V
Nominal Capacity100Ah
Battery Energy Choice5.12KWh/10.24KWh/15.36KWh/20.48KWh
Cell TypeLiFePO4 Cell
Cycle Life6000cylces @25℃,0.5C 80% DOD
Power Choice4.5KW~9KW
Max PV Input Power4.5KW/5.4KW/6KW/6.9KW/7.5KW/9KW
Max PV Input Voltage600V
MPPT Voltage Range100V~550V
Max PV Input Current16A
Max Short Circuit Current/MPPT24A
Rated Output Power3KW/3.68KW/4KW/4.6KW/5KW/6KW
Max Output Power3.3KVA/3.68KVA/4.4KVA/4.6KVA/5.5KVA/6KVA
Max Output Current15A/16A/20A/20.9A/22.7A/26.1A
Rated Voltage230V
Max Efficiency97.50%
Max Battery Charge/Discharge Efficiency95%


KM NEW POWER 51.2V 400Ah Stackable LiFePO4 Battery 1
KM NEW POWER 51.2V 400Ah Stackable LiFePO4 Battery 2
