20ft & 40ft Container Energy Storage | Custom Capacity C&I Energy Storage System

20ft & 40ft Container Energy Storage | Custom Capacity C&I Energy Storage System
20ft & 40ft Container Energy Storage | Custom Capacity C&I Energy Storage System

Large Image :  20ft & 40ft Container Energy Storage | Custom Capacity C&I Energy Storage System

Product Details:
Place of Origin: China
Brand Name: Kuoman
Certification: CE, FCC, UKCA, CB
Model Number: 215KW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1-100/pcs
Packaging Details: standard international carton packing
Delivery Time: general two weeks, more quantity based on exact quantity
Supply Ability: 10000pcs/month
Contact Now

20ft & 40ft Container Energy Storage | Custom Capacity C&I Energy Storage System

Description
Nominal Capacity: 144A Cycle Life: 10,000 Cycles
Nominal Voltage: 400V(320~460V) Power Output: 250 KW
Nominal Energy: 215KWh Rated Voltage: 768V
System Capacity: 500 KWh, 1 MWh, 2 MWh (scalable) Max Power: 320 KW
Rated Current: 420 A Cell Type: LFP (LiFePO4) 3.2V/280Ah Cells
Working Voltage Range: 648 V ~ 864 VDC Rated Discharging Rate: 0.5C
Highlight:

20ft container energy storage system

,

40ft commercial energy storage

,

custom capacity C&I energy storage

20ft & 40ft Container Energy Storage | Custom Capacity C&I Energy Storage System

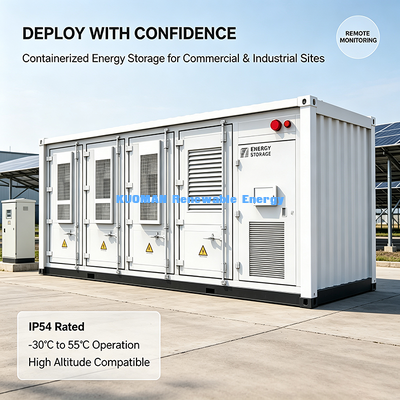

Our IP54 rated containerized energy storage system is an all-in-one lithium iron phosphate energy storage solution built for commercial & industrial energy projects. Equipped with advanced BMS and intelligent thermal management, this 768V high voltage ESS delivers up to 10,000-cycle long service life, supporting both on-grid and off-grid operation to meet diverse renewable energy storage demands.
20ft & 40ft Container Energy Storage | Custom Capacity C&I Energy Storage System 0
System Specifications
Parameter Specification
System Capacity 500 kWh, 1 MWh, 2 MWh (scalable)
Max Power 320 kW
Rated Voltage 852 VDC
Rated Current 420 A
Operation Modes
  • On-grid: Integrates with the grid for peak shaving, load shifting, and energy arbitrage
  • Off-grid: Provides standalone power for remote locations or backup during grid outages
Battery Specifications
  • Cell Type: LFP (LiFePO4) 3.2V/280Ah cells
  • Battery Rated Capacity: 500 kWh
  • Rated Voltage: 768 V
  • Working Voltage Range: 648 V ~ 864 VDC
  • Rated Discharging Rate: 0.5C
  • Cycling Life: 8000 cycles at 0.5C, 95% DoD, SOC > 70%
Energy Management System
  • Operation Interface: 7-inch LCD display for real-time monitoring
  • Communication Protocols: Ethernet x 2, Modbus TCP, CAN, RS485
  • Features: Real-time performance monitoring, advanced energy management, remote control and diagnostics
Physical Specifications
  • Dimension: 20ft or 40ft containerized configurations
  • Weight: Varies by capacity (typically several tons)
  • Working Temperature: -20°C ~ 60°C
  • Humidity: 5% ~ 95% RH (non-condensing)
  • Altitude: Up to 2,000 meters
  • Certifications: CE, UL, UN38.3 compliance
Application Scenarios
  • Commercial & Industrial Peak Shaving & Load Shifting
  • Solar PV Energy Storage Power Station
  • EV Charging Station Energy Storage Support
  • Data Center Backup Power Supply
  • Remote Microgrid & Off-Grid Power Supply
  • Factory Self-consumption of Renewable Energy
  • Grid Frequency Regulation & Auxiliary Grid Services
Frequently Asked Questions
Q1: Can this container energy storage system work both on-grid and off-grid?
Yes. Our high voltage containerized ESS supports both on-grid and off-grid operation, suitable for grid-connected energy storage and independent microgrid projects.
Q2: What's the cycle life of this LFP energy storage system?
It reaches 8000 cycles under standard working conditions (0.5CP, 95% DOD, SOC > 70%), optimized thermal design further extends service life.
Q3: Can you customize system capacity for our project?
Yes. We provide flexible capacity solutions including 500kWh, 1MWh, 2MWh. Custom engineering service is available for special project demands.
Q4: What communication protocols does the EMS support?
The system supports Ethernet, Modbus TCP, CAN and RS485, easy to connect with third-party remote monitoring platforms.
Q5: What is the protection level of the container?
IP54 protection rating, dust-proof and splash-proof, suitable for outdoor installation under normal climate environments.
