Three-Phase Hybrid Grid-Tied Inverter with 97.5% Efficiency, IP65 Protection, and Triple MPPT Trackers

Three-Phase Hybrid Grid-Tied Inverter with 97.5% Efficiency, IP65 Protection, and Triple MPPT Trackers
Three-Phase Hybrid Grid-Tied Inverter with 97.5% Efficiency, IP65 Protection, and Triple MPPT Trackers Three-Phase Hybrid Grid-Tied Inverter with 97.5% Efficiency, IP65 Protection, and Triple MPPT Trackers Three-Phase Hybrid Grid-Tied Inverter with 97.5% Efficiency, IP65 Protection, and Triple MPPT Trackers

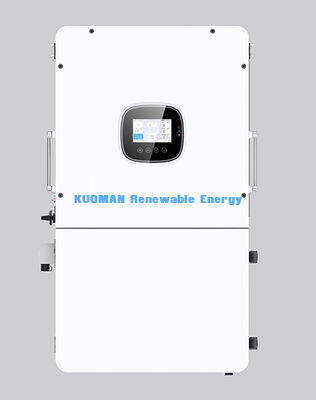

Large Image :  Three-Phase Hybrid Grid-Tied Inverter with 97.5% Efficiency, IP65 Protection, and Triple MPPT Trackers

Product Details:
Place of Origin: China
Brand Name: KUOMAN
Model Number: Three-Phase Hybrid Grid-Tied Inverter
Payment & Shipping Terms:
Packaging Details: Standard internationa packing
Delivery Time: 20 working days
Contact Now

Three-Phase Hybrid Grid-Tied Inverter with 97.5% Efficiency, IP65 Protection, and Triple MPPT Trackers

Description
Efficiency: 95% - 98% Battery Voltage: 40-60V DC
Output Power: 3.6kw, 5kw, 8kw, 10kw, 12kw AC Input Range: 110V:85-138VAC;220V:170-275VAC
MPPT Efficiency: 99.9% Operating Temperature: -25°C To 60°C
Highlight:

97.5% Efficiency Hybrid Solar Inverter

,

IP65 Protection Three-Phase Inverter

,

Triple MPPT Trackers Grid-Tied Inverter

Three-Phase Hybrid Grid-Tied Inverter
Empower your home or business with the robust and intelligent BSR Series three-phase hybrid inverters. Available in 14kW, 16kW, and 18kW models, these inverters seamlessly integrate solar, grid, and battery storage to provide reliable, efficient, and flexible power management. Featuring a modern white casing with a user-friendly display and easy-grip handles, the BSR series combines advanced technology with practical design.
Technical Specifications & Features
Power & Electrical Specifications
  • Rated AC Output Power: 14,000W / 16,000W / 18,000W
  • Output Configuration: Three-phase + Neutral + Ground (3L+N+PE)
  • Rated Voltage/Frequency: 120/208V, 60Hz
  • Peak Off-Grid Power: High surge capacity (28kVA to 36kVA) for starting motors
  • Power Factor Adjustment: Range from 0.8 leading to 0.8 lagging
Battery Compatibility & Management
  • Battery Voltage Range: Wide 40-60V DC input
  • Supported Types: Lead-Acid, Lithium-ion, User-Defined
  • Lithium Battery Integration: Self-adapting BMS communication for seamless compatibility
  • High Current Charging/Discharging: Up to 350A (model dependent)
  • Dual Battery Inputs: Supports connection of two battery banks
Solar (PV) Input & Efficiency
  • Triple MPPT Trackers: 3 independent Maximum Power Point Trackers with 2 strings each
  • High PV Voltage: Maximum input voltage of 600V per tracker
  • High Capacity: Maximum PV array power up to 36kW (for BSR-18K-U3P)
  • Superior Efficiency: Maximum efficiency of 97.5%, CEC efficiency of 97%, and MPPT tracking efficiency of 99.9%
Grid & Generator Integration
  • Wide Input Range: Broad grid/generator voltage and frequency range for stable operation
  • High Bypass Current: Supports up to 200A bypass overload current for reliable grid backup
General Data & Robustness
  • Scalability: Supports parallel connection of 1 to 9 units for large-scale power needs
  • Protection Rating: IP65 certified for dust-tight and water-resistant performance
  • Operating Temperature: Wide range from -25°C to 60°C (with derating above 45°C)
  • Cooling: Combines heat sinks with intelligent forced air cooling
  • Communication Ports: Includes RS485, CAN, USB, and Dry Contact
  • Optional Connectivity: Wi-Fi/4G stick for remote monitoring
Safety & Certifications
  • Comprehensive Protections: Anti-islanding, PV lightning protection, leakage current detection, insulation monitoring, reverse polarity protection, and surge protection
  • International Certifications: Complies with CSA, IEC62109, and EN61000 standards
Warranty
Standard Warranty: 5 years
Ideal Application Scenarios
  • Residential Homes with 3-Phase Supply: Power large homes, HVAC systems, and electric vehicle chargers efficiently
  • Commercial & Retail Stores: Reduce operating costs by powering lighting, refrigeration, and office equipment with solar energy
  • Small & Medium Enterprises (SMEs) / Workshops: Run machinery and production equipment reliably with clean, three-phase power
  • Agricultural & Farming Operations: Power irrigation systems, barns, and processing equipment
  • Off-Grid & Backup Power Systems: Provide critical power backup for buildings during grid outages
