10KW Hybrid Inverter with Triple Protection | 98% Efficiency | On/Off-Grid

10KW Hybrid Inverter with Triple Protection | 98% Efficiency | On/Off-Grid
10KW Hybrid Inverter with Triple Protection | 98% Efficiency | On/Off-Grid

Large Image :  10KW Hybrid Inverter with Triple Protection | 98% Efficiency | On/Off-Grid

Product Details:
Place of Origin: China
Brand Name: KUOMAN
Model Number: 10.2KW
Payment & Shipping Terms:
Packaging Details: Standard internationa packing
Delivery Time: 20 working days
Contact Now

10KW Hybrid Inverter with Triple Protection | 98% Efficiency | On/Off-Grid

Description
Weight: 14Kgs Output Type: Single Phase Or Split Phase
Input Voltage: 12V/24V/48V Type: DC/AC Inverters,On Grid Solar System
Output Frequency: 50Hz/60Hz Output Voltage: 110V/220V/230V/240V
Output Power: 10KW 10KVA 10000W Product Name: OFF Grid Off Grid Hybrid MPPT Solar Inverter
Efficiency: >85% Protection: Overload / Over Voltage/output Short Circuit

10KW Hybrid Inverter with Triple Protection | 98% Efficiency | On/Off-Grid

Product Features & Parameters

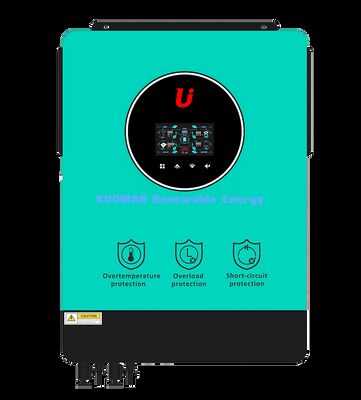

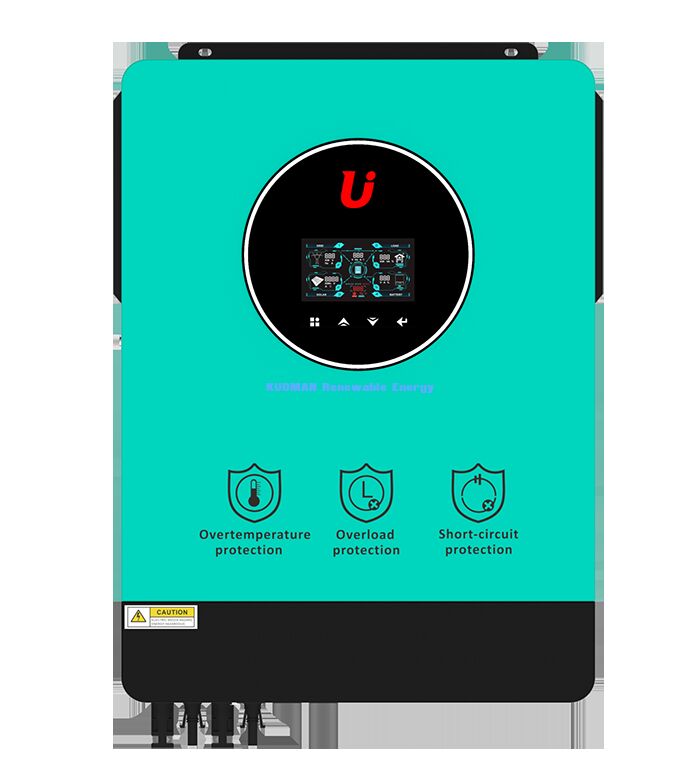

This 10KW hybrid energy storage inverter combines robust power with intelligent management. It features a user-friendly circular display with a prominent red "U" logo for easy monitoring and control. Its core safety is ensured by a triple-protection system against over-temperature, overload, and short circuits. Key technical parameters, as detailed in the spec sheet, include:Power:​ Rated output of 10200W/10200VA.
  • Efficiency:​ Achieves a maximum conversion efficiency of up to 98%.
  • Solar Input:​ Supports high PV input with dual MPPT trackers (Max 5400W+5400W).
  • Battery & Charging:​ 48V nominal battery voltage with a high 160A maximum solar charging current.
  • Output:​ Provides pure sine wave AC output (220/230/240VAC) suitable for all appliances.
  • Connectivity:​ Offers multiple communication options including RS485, WiFi, and GPRS.
  • Application Scenarios
    Ideal for residential and commercial energy independence, this inverter is perfect for:
  • Hybrid Solar Systems:​ Maximize self-consumption of solar energy while staying grid-connected.
  • Backup Power Solutions:​ Provide essential power during grid outages for homes and businesses.
  • Off-Grid Installations:​ Reliable power for remote homes, cabins, or telecommunications sites.
  • Solar+Storage Projects:​ The core component for new or retrofit battery storage installations.​
Why Choose Us ?
We deliver more than just a product; we provide a reliable power solution. Our inverters are engineered with top-tier components, undergo rigorous quality control, and are backed by a strong warranty. We are committed to innovation in renewable energy and support our customers with comprehensive after-sales service to ensure your system performs optimally for years to come.

​
