Solar Energy Storage for Home Backup, Off-Grid & Peak Shaving Wide Temp Range 25.6/51.2V

Solar Energy Storage for Home Backup, Off-Grid & Peak Shaving Wide Temp Range 25.6/51.2V
Solar Energy Storage for Home Backup, Off-Grid & Peak Shaving Wide Temp Range 25.6/51.2V Solar Energy Storage for Home Backup, Off-Grid & Peak Shaving Wide Temp Range 25.6/51.2V

Large Image :  Solar Energy Storage for Home Backup, Off-Grid & Peak Shaving Wide Temp Range 25.6/51.2V

Product Details:
Place of Origin: China
Brand Name: KUOMAN
Model Number: 25.6/51.2V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Packaging Details: Standard internationa packing
Delivery Time: 20 working days
Supply Ability: 100 pcs/month
Contact Now

Solar Energy Storage for Home Backup, Off-Grid & Peak Shaving Wide Temp Range 25.6/51.2V

Description
Inverter Type: Hybrid Powersuncommunication: Can/Rs485/Rs232/Dry Contact
Inverter Compatibility: Compatible With Most Inverters Product Model: KM48V100B Home Storage Battery
Warranty: 10 Years Powersun Communication: Can/Rs485/Rs232/Dry Contact
Voltage: 25.6/51.2V Battery Type: Lithium-ion
Cycle Life: Up To 10,000 Cycles Nominal Capacity: 200Ah
Depth Of Discharge: 90% Communication: Wi-Fi, Ethernet, Or Cellular

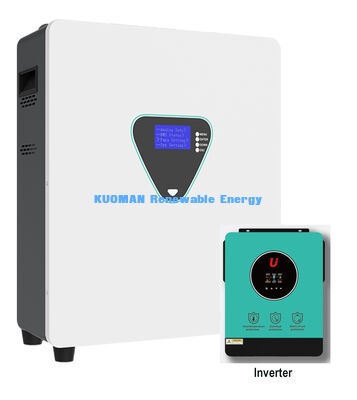

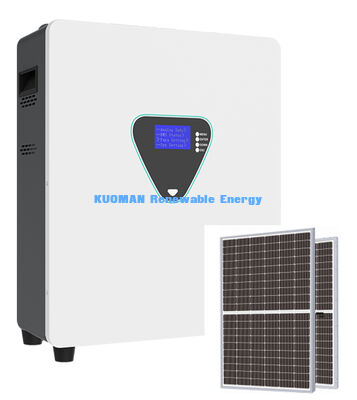

Wall-Mounted LiFePO4 Battery & Solar Hybrid System 25.6/51.2V Home Storage energy

Our wall-mounted LiFePO4 battery packs paired with solar hybrid inverters deliver reliable, long-lasting energy storage for residential and small commercial solar systems. Built with advanced lithium iron phosphate chemistry, these batteries offer exceptional cycle life, high efficiency, and flexible capacity options to match your energy needs.

Technical Specifications



Model 25.6V 100Ah 25.6V 205Ah 25.6V 300Ah 51.2V 100Ah 51.2V 205Ah 51.2V 300Ah
Energy Storage 2560Wh 5248Wh 7680Wh 5120Wh 10496Wh 15360Wh
Rated Voltage 25.6V 25.6V 25.6V 51.2V 51.2V 51.2V
Voltage Range 21.6V–29.2V 21.6V–29.2V 21.6V–29.2V 43.2V–58.4V 43.2V–58.4V 43.2V–58.4V
Max Charge Current 100A 200A 200A 100A 200A 200A
Max Discharge Current 100A 200A 200A 100A 200A 200A
Discharging Cut-off Voltage 21.6V 21.6V 21.6V 43.2V 43.2V 43.2V
Floating Voltage 28.8V 28.8V 28.8V 57.6V 57.6V 57.6V
Cycle Life 6000 cycles @ 80% DOD
Operating Temperature -20°C ~ 55°C (-4°F ~ 131°F)



Product Features

  1. Long Cycle Life: 6000 cycles at 80% depth of discharge (DOD), ensuring decades of reliable service compared to traditional lead-acid batteries.
  2. High Safety & Stability: LiFePO4 chemistry eliminates fire and explosion risks, making it ideal for indoor wall-mounted installation.
  3. Flexible Capacity Options: Choose from 2.56kWh to 15.36kWh models to scale your energy storage system as your needs grow.
  4. Wide Temperature Tolerance: Operates seamlessly in extreme climates from -20°C to 55°C, suitable for global residential use.
  5. High Charge/Discharge Rates: Supports up to 200A max charge/discharge current for fast energy transfer and high-power appliance compatibility.
  6. Seamless Solar Integration: Works perfectly with BUSBYR solar hybrid inverters (BSSI-V-GN6200 / BSSI-V-GN10200) for off-grid and grid-tied solar systems.
  7. Smart App Control: Monitor battery status, energy flow, and system performance remotely via mobile app for convenient management.
  8. Space-Saving Wall-Mount Design: Compact, wall-mounted form factor maximizes floor space in homes and small businesses.

 (FAQ)

Q: How long does the battery last?

A: Our LiFePO4 batteries offer 6000 cycles at 80% DOD, which translates to approximately 15–20 years of residential use under normal operating conditions.

Q: Can I connect multiple batteries together?

A: Yes, our stackable and wall-mounted models can be paralleled to increase total capacity, allowing you to scale your energy storage system to meet higher power demands.

Q: Is this battery compatible with other inverter brands?

A: While optimized for BUSBYR solar hybrid inverters, our batteries are compatible with most standard 25.6V/51.2V inverters on the market. Please confirm voltage and current compatibility with your inverter manufacturer.

Q: What is the operating temperature range?

A: The battery operates safely between -20°C and 55°C, making it suitable for use in cold and hot climates worldwide.

Q: How do I monitor the battery's performance?

A: You can monitor real-time battery status, energy production, and consumption via the BUSBYR mobile app, available for iOS and Android devices.
