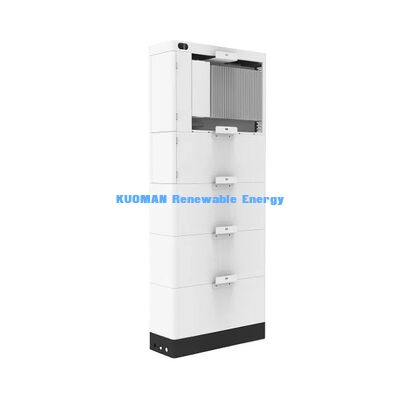

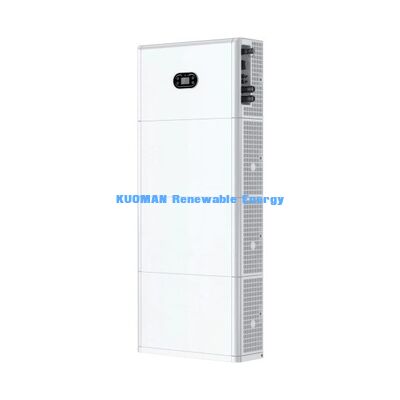

Eco Friendly Stackable LiFePO4 Battery 51.2V 400Ah For Home Energy Storage

KM New Power 51.2V 400Ah Stackable LiFePO4 Battery For Home Energy Storage With Grade A Cells And Intelligent BMS Protection

The KM New Power Energy Stackable LiFePO4 Battery is indeed a popular choice for residential energy storage, thanks to its advanced design and reliable performance. Here's a breakdown of its key features and benefits:

Key Features:

1. High-Quality Battery Cells:

   • Utilizes EVE brand new prismatic LiFePO4 battery cells (3.2V 100Ah).

   • LiFePO4 chemistry ensures high safety, long cycle life, and excellent thermal stability.

2. Scalable Capacity:

   • Offers a modular design, allowing you to stack multiple units for increased capacity.

   • Provides 10kWh to 30kWh of energy storage, making it suitable for a wide range of home energy needs.

3. 48V System:

   • Operates at 48V, which is ideal for residential solar energy storage systems.

   • Compatible with most inverters and solar charge controllers.

4. Multiple Charging Options:

   • Can be charged via solar panels, diesel generators, or the grid.

   • Ideal for off-grid, hybrid, or backup power systems.

5. Long Cycle Life:

   • Designed for over 8000 cycles at 80% depth of discharge (DoD), ensuring a long lifespan.

   • This makes it a cost-effective solution for long-term energy storage.

6. Compact and Stackable Design:

   • Space-saving and easy to install.

   • Modular design allows for future expansion as energy needs grow.

Benefits:

• Reliable Power Supply: Ensures a stable and consistent energy supply for your home, even during power outages.

• Eco-Friendly: Ideal for use with solar panels, reducing reliance on fossil fuels and lowering your carbon footprint.

• Cost-Effective: Long cycle life and low maintenance requirements result in lower overall costs over time.

• Versatile: Suitable for a variety of applications, including off-grid living, backup power, and peak shaving.

The KM-48V400P2 Home Battery is a versatile and high-performance energy storage solution designed for residential use. Below is a detailed overview of its specifications, features, and benefits:

Product Specifications:
Product Model: KM-48V400P2 Home Battery

Nominal Voltage: 51.2V

Nominal Capacity: Options: 200Ah, 300Ah, 400Ah, 500Ah, 600Ah

Scalable to meet different energy needs.

Nominal Energy:

10.24 kWh to 30.72 kWh (depending on capacity configuration).

BMS Protection:

Overcharging/over-discharging protection.

Over-voltage/over-current protection.

Short-circuit protection.

Temperature monitoring and protection.

Terminal: Fast plug-in design for easy installation and connection.

Battery Size:  600210300 mm (per single module).

Net Weight: 48 kg (per single module).

Communication:

Supports CAN, RS485, RS232, and optional Bluetooth for real-time monitoring and control.

Additional Models Available:

Other capacities: 200Ah, 150Ah, 100Ah, 280Ah, 50Ah, 25Ah.

• Solar Self-Consumption Optimization:​ Store excess solar energy generated during the day for use in the evening, significantly reducing electricity bills.
• Critical Home Backup Power:​ Provide essential power during grid outages, keeping lights, refrigeration, and communication devices running.
• Off-Grid Living & Cabins:​ Serve as the primary energy storage for remote homes or vacation cabins without access to the utility grid.
• Peak Shaving for Homes:​ Discharge stored energy during periods of high utility rates (time-of-use tariffs) to lower energy costs.
• EV Charging Support:​ Complement home electric vehicle charging by using stored solar or off-peak electricity, preventing panel or grid overload.
• Small Business & Telecom Backup:​ Provide reliable, quiet, and maintenance-free backup power for small offices, retail shops, or remote telecom equipment.
