Product Details:
|
| Nominal Voltage:: | 51.2V | Nominal Capacity:: | 200Ah~600Ah |
|---|---|---|---|
| Nominal Energy:: | 10.24KWh~30.72KWh | Dimension:: | 600*210*300mm(single Module) |
| Efficiency: | 95% - 98% | Communication: | Wi-Fi, Ethernet, Or Cellular |
| Compatibility: | Works With Solar Panels Or Grid Electricity | Discharge Rate: | 0.5~1C |
| Cycle Life: | 5000 - 10000 Cycles | Chemistry: | Lithium-ion |
| Battery Chemistry: | Lithium-ion | Warranty: | 5-10 Years |
| Dimensions: | Varies By Model | Backup Power: | Yes |
| Operating Temperature: | -20°C - 50°C | Inverter: | Built-in Or External |
| Model: | Various Models Available | Model No: | Powersun |
| Yearscycle Life: | 6000 Cycles@25°c 0.2c, 80%dod |

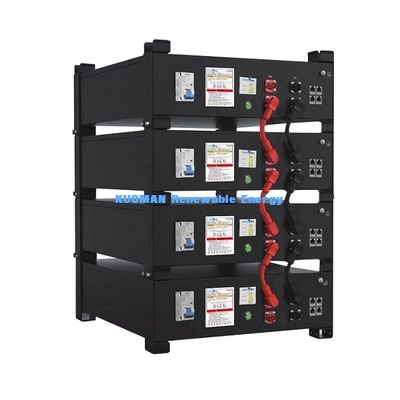

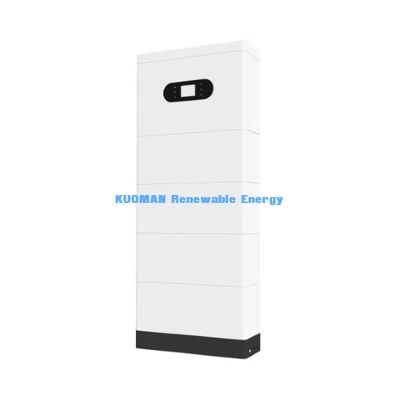

KM New Power 51.2V 400Ah Home Battery Storage System for Solar Panel Charging
It provides 10kwh to 30kwh power for home energy storage demand. You can charge itby solar panels, diesel generators; This 48V lithium battery adopts LiFePO4 technology,which has the highest safety with CE, RoHS, UL certificates and the longest life morethan 8000 cycles; and its management system provides comprehensive protection aswell as real-time monitoring.KM New Power Engery stackable LiFePO4 Battery is very popular choice for residentialenergy storage, which is designed with EVE brand new prismatic LiFePO4 battery cell3.2V 100Ah and 100A intelligent BMS.
| Product Model | KM51.2V200P2 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Nominal Energy | 10240Wh |
| Cell Type | LiFePO4 Cell |
| Charging Cut-off Voltage | 44.8V~56.16V |
| Dimension | 640*375*210mm |
| Battery Energy Choice | 5.12KWh/10.24KWh/15.36KWh/20.48KWh |
| Cycle Life | 6000cylces @25℃,0.5C 80% DOD |
| Inverter | |
| Power Choice | 4.5KW~9KW |
| Input(PV ) | |
| Max PV Input Power | 4.5KW/5.4KW/6KW/6.9KW/7.5KW/9KW |
| Max PV Input Voltage | 600V |
| MPPT Voltage Range | 100V~550V |
| Max PV Input Current | 16A |
| Max Short Circuit Current/MPPT | 24A |
| Output(AC) | |
| Rated Output Power | 3KW/3.68KW/4KW/4.6KW/5KW/6KW |
| Max Output Power | 3.3KVA/3.68KVA/4.4KVA/4.6KVA/5.5KVA/6KVA |
| Max Output Current | 15A/16A/20A/20.9A/22.7A/26.1A |
| Rated Voltage | 230V |
| Efficiency | |
| Max Efficiency | 97.50% |
| Max Battery Charge/Discharge Efficiency | 95% |
| General Data | |
| Internal Resistance | ≤40 mΩ |
| Self Consumption | ≤10W |
| Communication | CAN/RS485/RS232 |
| Warranty | 10 years |
| Protection Degree | IP65 |
Q1: How can I get your support?
A1: We have reliable forwarder agent which can ship items to you by sea/air/Express based on your situation. Anyway, we will help you choose the most suitable shipping service.
Q2:What's your shipping terms ?
A2:We can do FOB, CIF, EXW or DDP.
Q3: How is your technical support?
A3: We provide lifetime online guidence support through Whatsapp/ Skype/ Wechat/ Email
Any problem afterdelivery, we will offer you video call anytime,our engineer will also go to oversea help our customersif necessary.
Q4: What's our payment ways?
A4:we generally using T/T, L/C payment ways.
